10 mt
max
10 mt
max
10 mt
max
alimentatore/feeder
WALIMLED09W12V
prodotti con nastro LED 12V/
product with 12V strip LED
35x73x18(h) - 9W - 12V
alimentatore/feeder
WALIMLED09W12V
prodotti con nastro LED 12V/
product with 12V strip LED
35x73x18(h) - 9W - 12V
dimmer
WBOKOTDIM (50W max)
170x40x19 - 4W
variatore/current variation
WBOKVAR
80x80x60 - 1 - 10V
O
O
O
E
O
110V
220V
110V
220V
110V
220V
L
L
L
N
N
N
VAR
OT-DIM
OT-DIM
VAR
VAR
alimentatore/feeder
WALIM/DIMM/JOLLY
prodotti con nastro LED 12V/
product with 12V strip LED
MAX 10W - 12V
variatore/current variation
WBOKVAR
80x80x60 - 1 - 10V
E
VAR

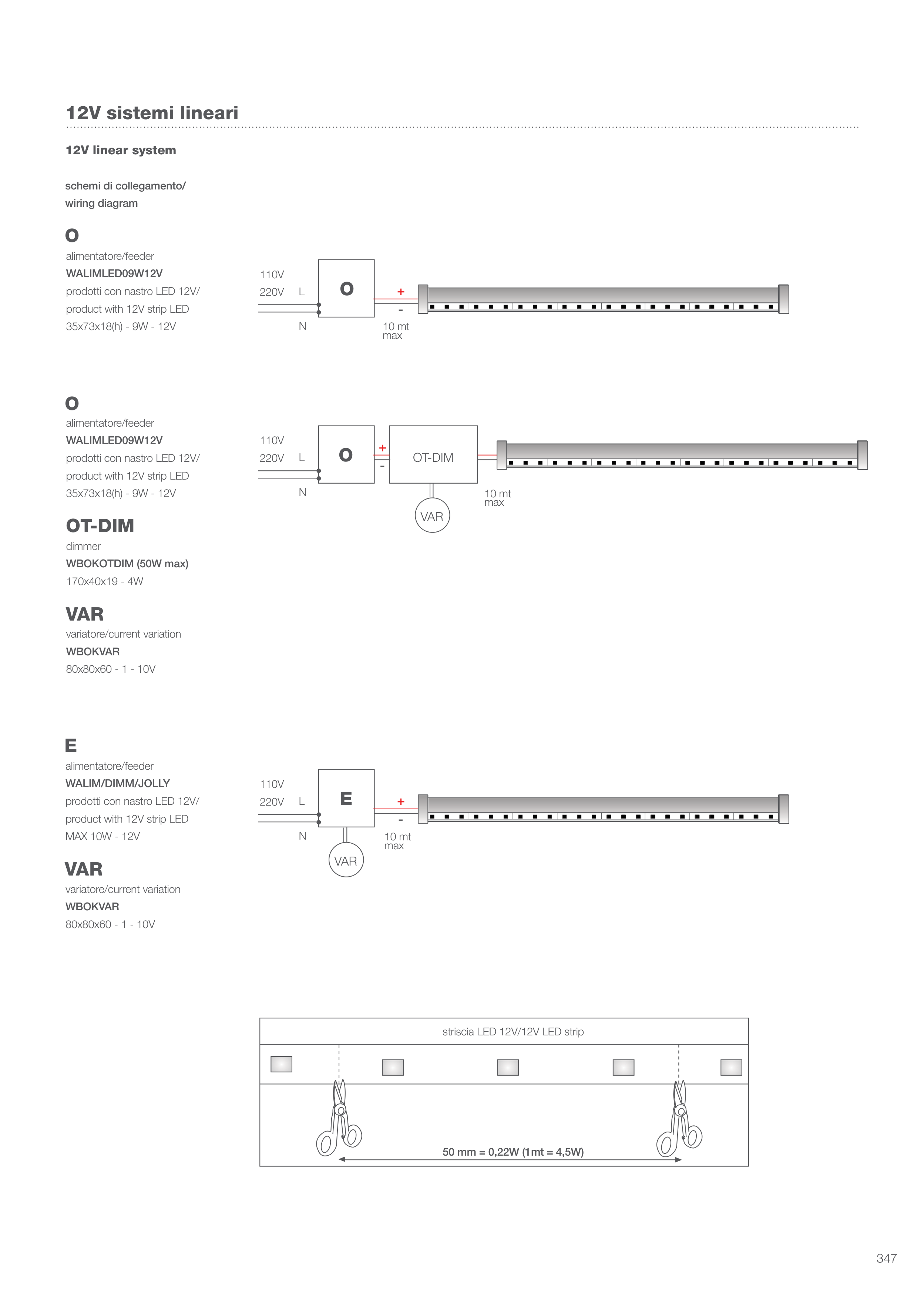

12V sistemi lineari
12V linear system
schemi di collegamento/
wiring diagram
347
+
+
+
-
-
-
50 mm = 0,22W (1mt = 4,5W)
striscia LED 12V/12V LED strip
