271
prodotto/
product

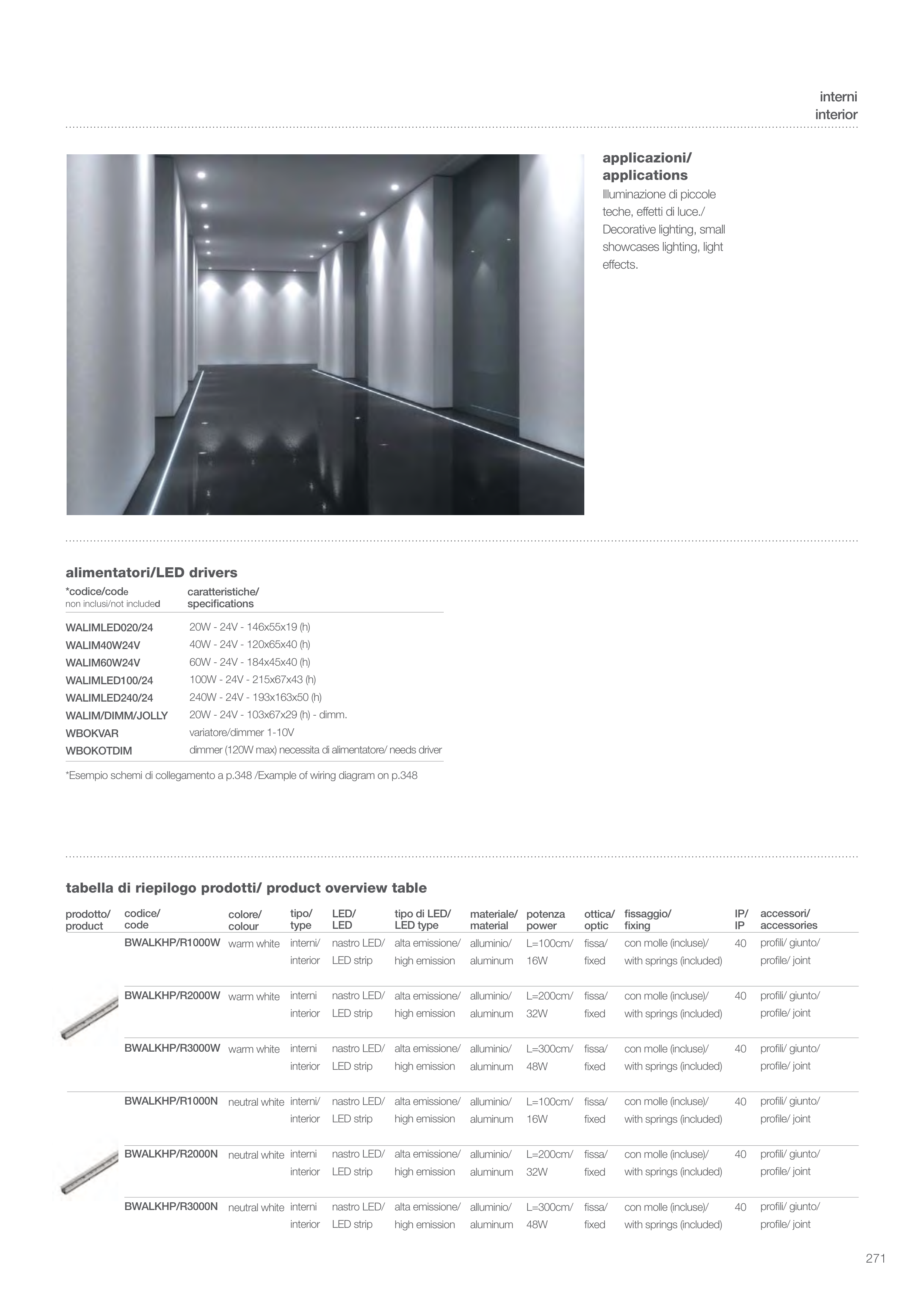

tabella di riepilogo prodotti/ product overview table
colore/
colour
warm white
warm white
warm white
neutral white
neutral white
neutral white
tipo/
type
interni/
interior
interni
interior
interni
interior
interni/
interior
interni
interior
interni
interior
LED/
LED
nastro LED/
LED strip
nastro LED/
LED strip
nastro LED/
LED strip
nastro LED/
LED strip
nastro LED/
LED strip
nastro LED/
LED strip
tipo di LED/
LED type
alta emissione/
high emission
alta emissione/
high emission
alta emissione/
high emission
alta emissione/
high emission
alta emissione/
high emission
alta emissione/
high emission
materiale/
material
alluminio/
aluminum
alluminio/
aluminum
alluminio/
aluminum
alluminio/
aluminum
alluminio/
aluminum
alluminio/
aluminum
potenza
power
L=100cm/
16W
L=200cm/
32W
L=300cm/
48W
L=100cm/
16W
L=200cm/
32W
L=300cm/
48W
ottica/
optic
fissa/
fixed
fissa/
fixed
fissa/
fixed
fissa/
fixed
fissa/
fixed
fissa/
fixed
accessori/
accessories
profili/ giunto/
profile/ joint
profili/ giunto/
profile/ joint
profili/ giunto/
profile/ joint
profili/ giunto/
profile/ joint
profili/ giunto/
profile/ joint
profili/ giunto/
profile/ joint
*Esempio schemi di collegamento a p.348 /Example of wiring diagram on p.348
*codice/code
non inclusi/not included
caratteristiche/
specifications
alimentatori/LED drivers
WALIMLED020/24
WALIM40W24V
WALIM60W24V
WALIMLED100/24
WALIMLED240/24
WALIM/DIMM/JOLLY
WBOKVAR
WBOKOTDIM
20W - 24V - 146x55x19 (h)
40W - 24V - 120x65x40 (h)
60W - 24V - 184x45x40 (h)
100W - 24V - 215x67x43 (h)
240W - 24V - 193x163x50 (h)
20W - 24V - 103x67x29 (h) - dimm.
variatore/dimmer 1-10V
dimmer (120W max) necessita di alimentatore/ needs driver
fissaggio/
fixing
con molle (incluse)/
with springs (included)
con molle (incluse)/
with springs (included)
con molle (incluse)/
with springs (included)
con molle (incluse)/
with springs (included)
con molle (incluse)/
with springs (included)
con molle (incluse)/
with springs (included)
IP/
IP
40
40
40
40
40
40
applicazioni/
applications
Illuminazione di piccole
teche, effetti di luce./
Decorative lighting, small
showcases lighting, light
effects.
codice/
code
BWALKHP/R1000W
BWALKHP/R2000W
BWALKHP/R3000W
BWALKHP/R1000N
BWALKHP/R2000N
BWALKHP/R3000N
interior
interni
