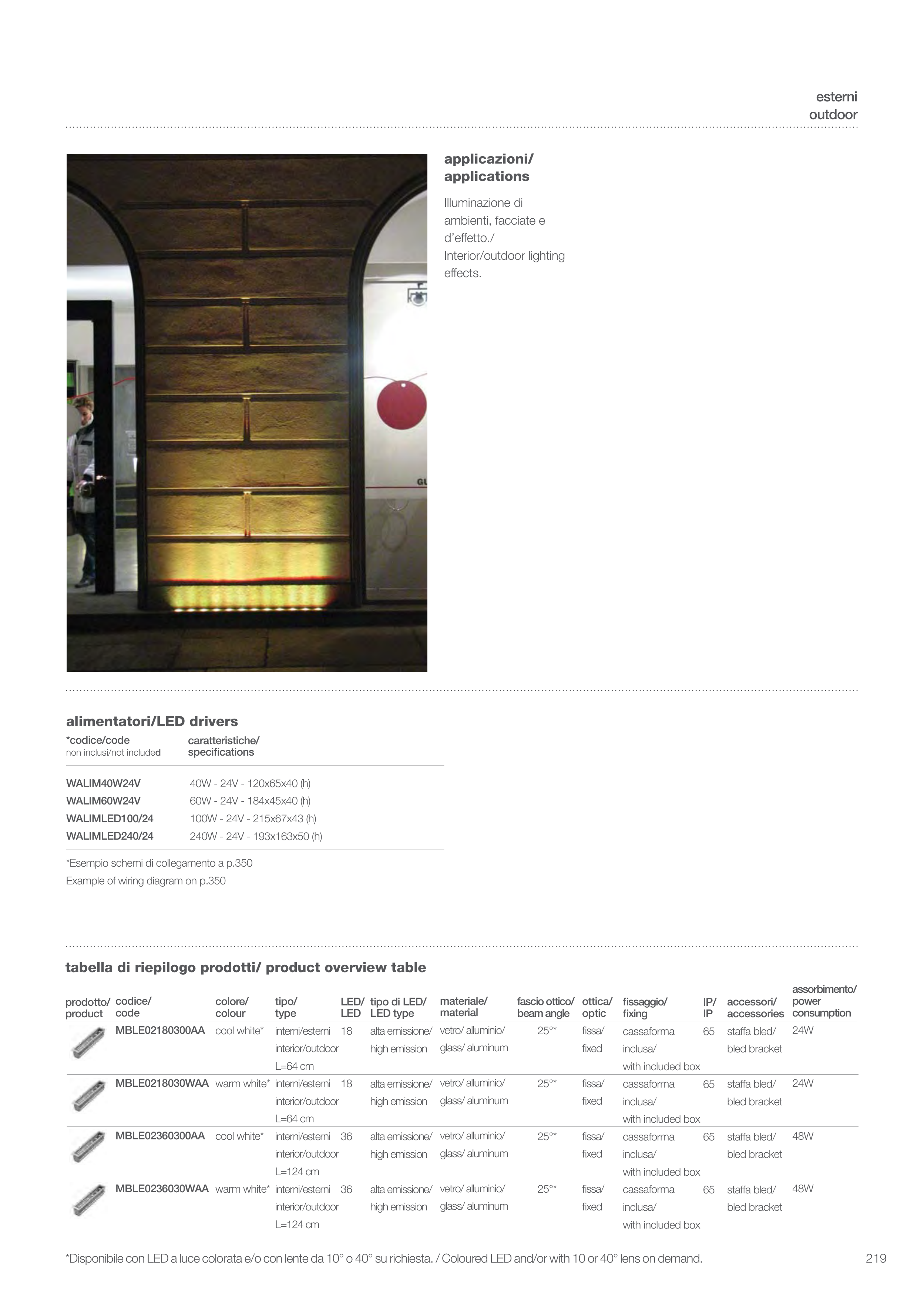

219
applicazioni/
applications
Illuminazione di
ambienti, facciate e
d’effetto./
Interior/outdoor lighting
effects.
*Esempio schemi di collegamento a p.350
Example of wiring diagram on p.350
*codice/code
non inclusi/not included
caratteristiche/
specifications
alimentatori/LED drivers
WALIM40W24V
WALIM60W24V
WALIMLED100/24
WALIMLED240/24
40W - 24V - 120x65x40 (h)
60W - 24V - 184x45x40 (h)
100W - 24V - 215x67x43 (h)
240W - 24V - 193x163x50 (h)
tabella di riepilogo prodotti/ product overview table
prodotto/
product
codice/
code
MBLE02180300AA
MBLE0218030WAA
MBLE02360300AA
MBLE0236030WAA
colore/
colour
cool white*
warm white*
cool white*
warm white*
tipo/
type
interni/esterni
interior/outdoor
L=64 cm
interni/esterni
interior/outdoor
L=64 cm
interni/esterni
interior/outdoor
L=124 cm
interni/esterni
interior/outdoor
L=124 cm
LED/
LED
18
18
36
36
tipo di LED/
LED type
alta emissione/
high emission
alta emissione/
high emission
alta emissione/
high emission
alta emissione/
high emission
materiale/
material
vetro/ alluminio/
glass/ aluminum
vetro/ alluminio/
glass/ aluminum
vetro/ alluminio/
glass/ aluminum
vetro/ alluminio/
glass/ aluminum
ottica/
optic
fissa/
fixed
fissa/
fixed
fissa/
fixed
fissa/
fixed
fascio ottico/
beam angle
25°*
25°*
25°*
25°*
fissaggio/
fixing
cassaforma
inclusa/
with included box
cassaforma
inclusa/
with included box
cassaforma
inclusa/
with included box
cassaforma
inclusa/
with included box
accessori/
accessories
staffa bled/
bled bracket
staffa bled/
bled bracket
staffa bled/
bled bracket
staffa bled/
bled bracket
IP/
IP
65
65
65
65
assorbimento/
power
consumption
24W
24W
48W
48W
*Disponibile con LED a luce colorata e/o con lente da 10° o 40° su richiesta. / Coloured LED and/or with 10 or 40° lens on demand.
outdoor
esterni
