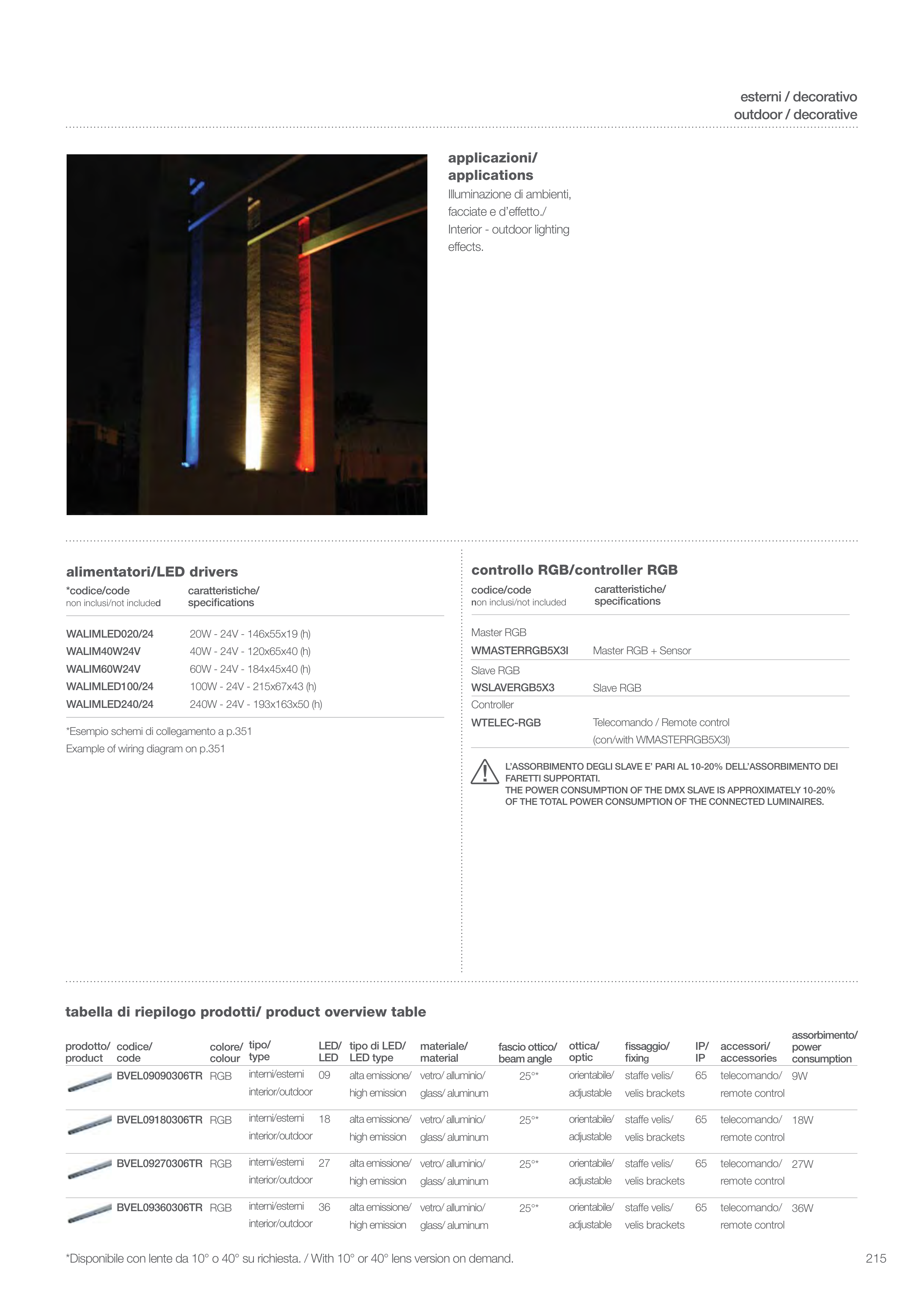

tabella di riepilogo prodotti/ product overview table
prodotto/
product
codice/
code
BVEL09090306TR
BVEL09180306TR
BVEL09270306TR
BVEL09360306TR
colore/
colour
RGB
RGB
RGB
RGB
tipo/
type
interni/esterni
interior/outdoor
interni/esterni
interior/outdoor
interni/esterni
interior/outdoor
interni/esterni
interior/outdoor
LED/
LED
09
18
27
36
tipo di LED/
LED type
alta emissione/
high emission
alta emissione/
high emission
alta emissione/
high emission
alta emissione/
high emission
materiale/
material
vetro/ alluminio/
glass/ aluminum
vetro/ alluminio/
glass/ aluminum
vetro/ alluminio/
glass/ aluminum
vetro/ alluminio/
glass/ aluminum
ottica/
optic
orientabile/
adjustable
orientabile/
adjustable
orientabile/
adjustable
orientabile/
adjustable
fascio ottico/
beam angle
25°*
25°*
25°*
25°*
fissaggio/
fixing
staffe velis/
velis brackets
staffe velis/
velis brackets
staffe velis/
velis brackets
staffe velis/
velis brackets
accessori/
accessories
telecomando/
remote control
telecomando/
remote control
telecomando/
remote control
telecomando/
remote control
assorbimento/
power
consumption
9W
18W
27W
36W
IP/
IP
65
65
65
65
codice/code
non inclusi/not included
Slave RGB
Master RGB
Controller
caratteristiche/
specifications
WMASTERRGB5X3I
WSLAVERGB5X3
WTELEC-RGB
Master RGB + Sensor
Slave RGB
Telecomando / Remote control
(con/with WMASTERRGB5X3l)
controllo RGB/controller RGB
*Esempio schemi di collegamento a p.351
Example of wiring diagram on p.351
*codice/code
non inclusi/not included
caratteristiche/
specifications
alimentatori/LED drivers
WALIMLED020/24
WALIM40W24V
WALIM60W24V
WALIMLED100/24
WALIMLED240/24
20W - 24V - 146x55x19 (h)
40W - 24V - 120x65x40 (h)
60W - 24V - 184x45x40 (h)
100W - 24V - 215x67x43 (h)
240W - 24V - 193x163x50 (h)
L’ASSORBIMENTO DEGLI SLAVE E’ PARI AL 10-20% DELL’ASSORBIMENTO DEI
FARETTI SUPPORTATI.
THE POWER CONSUMPTION OF THE DMX SLAVE IS APPROXIMATELY 10-20%
OF THE TOTAL POWER CONSUMPTION OF THE CONNECTED LUMINAIRES.
!
*Disponibile con lente da 10° o 40° su richiesta. / With 10° or 40° lens version on demand.
applicazioni/
applications
Illuminazione di ambienti,
facciate e d’effetto./
Interior - outdoor lighting
effects.
outdoor / decorative
esterni / decorativo
