143
applicazioni/
applications
Illuminazione generale di ambienti, negozi, quadri,
mostre, scaffali./
Hospitality lighting, general lighting, decorative
lighting, pictures, exhibition, shelves.
prodotto/
product
codice/
code
MSMAS409F300GM
MSMAS409F30WGM
MSMAS4094300GM
MSMAS409430WGM
MSMAS4097300GM
MSMAS409730WGM
MSMAS409F300NE
MSMAS409F30WNE
MSMAS4094300NE
MSMAS409430WNE
MSMAS4097300NE
MSMAS409730WNE
MSMAS409F300BO
MSMAS409F30WBO
MSMAS4094300BO
MSMAS409430WBO
MSMAS4097300BO
MSMAS409730WBO
colore/
colour
cool white
warm white
cool white
warm white
cool white
warm white
cool white
warm white
cool white
warm white
cool white
warm white
cool white
warm white
cool white
warm white
cool white
warm white
tipo/
type
interni/
interior
interni/
interior
interni/
interior
interni/
interior
interni/
interior
interni/
interior
interni/
interior
interni/
interior
interni/
interior
interni/
interior
interni/
interior
interni/
interior
interni/
interior
interni/
interior
interni/
interior
interni/
interior
interni/
interior
interni/
interior
LED/
LED
09
09
09
09
09
09
09
09
09
09
09
09
09
09
09
09
09
09
tipo di LED/
LED type
alta emissione/
high emission
alta emissione/
high emission
alta emissione/
high emission
alta emissione/
high emission
alta emissione/
high emission
alta emissione/
high emission
alta emissione/
high emission
alta emissione/
high emission
alta emissione/
high emission
alta emissione/
high emission
alta emissione/
high emission
alta emissione/
high emission
alta emissione/
high emission
alta emissione/
high emission
alta emissione/
high emission
alta emissione/
high emission
alta emissione/
high emission
alta emissione/
high emission
materiale/
material
alluminio/
aluminum
alluminio/
aluminum
alluminio/
aluminum
alluminio/
aluminum
alluminio/
aluminum
alluminio/
aluminum
alluminio/
aluminum
alluminio/
aluminum
alluminio/
aluminum
alluminio/
aluminum
alluminio/
aluminum
alluminio/
aluminum
alluminio/
aluminum
alluminio/
aluminum
alluminio/
aluminum
alluminio/
aluminum
alluminio/
aluminum
alluminio/
aluminum
fascio ottico/
beam angle
10°
10°
25°
25°
40°
40°
10°
10°
25°
25°
40°
40°
10°
10°
25°
25°
40°
40°
ottica/
optic
orientabile/
adjustable
orientabile/
adjustable
orientabile/
adjustable
orientabile/
adjustable
orientabile/
adjustable
orientabile/
adjustable
orientabile/
adjustable
orientabile/
adjustable
orientabile/
adjustable
orientabile/
adjustable
orientabile/
adjustable
orientabile/
adjustable
orientabile/
adjustable
orientabile/
adjustable
orientabile/
adjustable
orientabile/
adjustable
orientabile/
adjustable
orientabile/
adjustable
fissaggio/
fixing
con staffa/
with bracket
con staffa/
with bracket
con staffa/
with bracket
con staffa/
with bracket
con staffa/
with bracket
con staffa/
with bracket
con staffa/
with bracket
con staffa/
with bracket
con staffa/
with bracket
con staffa/
with bracket
con staffa/
with bracket
con staffa/
with bracket
con staffa/
with bracket
con staffa/
with bracket
con staffa/
with bracket
con staffa/
with bracket
con staffa/
with bracket
con staffa/
with bracket
finitura/
finishing
grigio/
grey
grigio/
grey
grigio/
grey
grigio/
grey
grigio/
grey
grigio/
grey
nero/
black
nero/
black
nero/
black
nero/
black
nero/
black
nero/
black
bianco/
white
bianco/
white
bianco/
white
bianco/
white
bianco/
white
bianco/
white
IP/
IP
40
40
40
40
40
40
40
40
40
40
40
40
40
40
40
40
40
40
*Esempio schemi di collegamento a p.346/ Example of wiring diagram on p.346

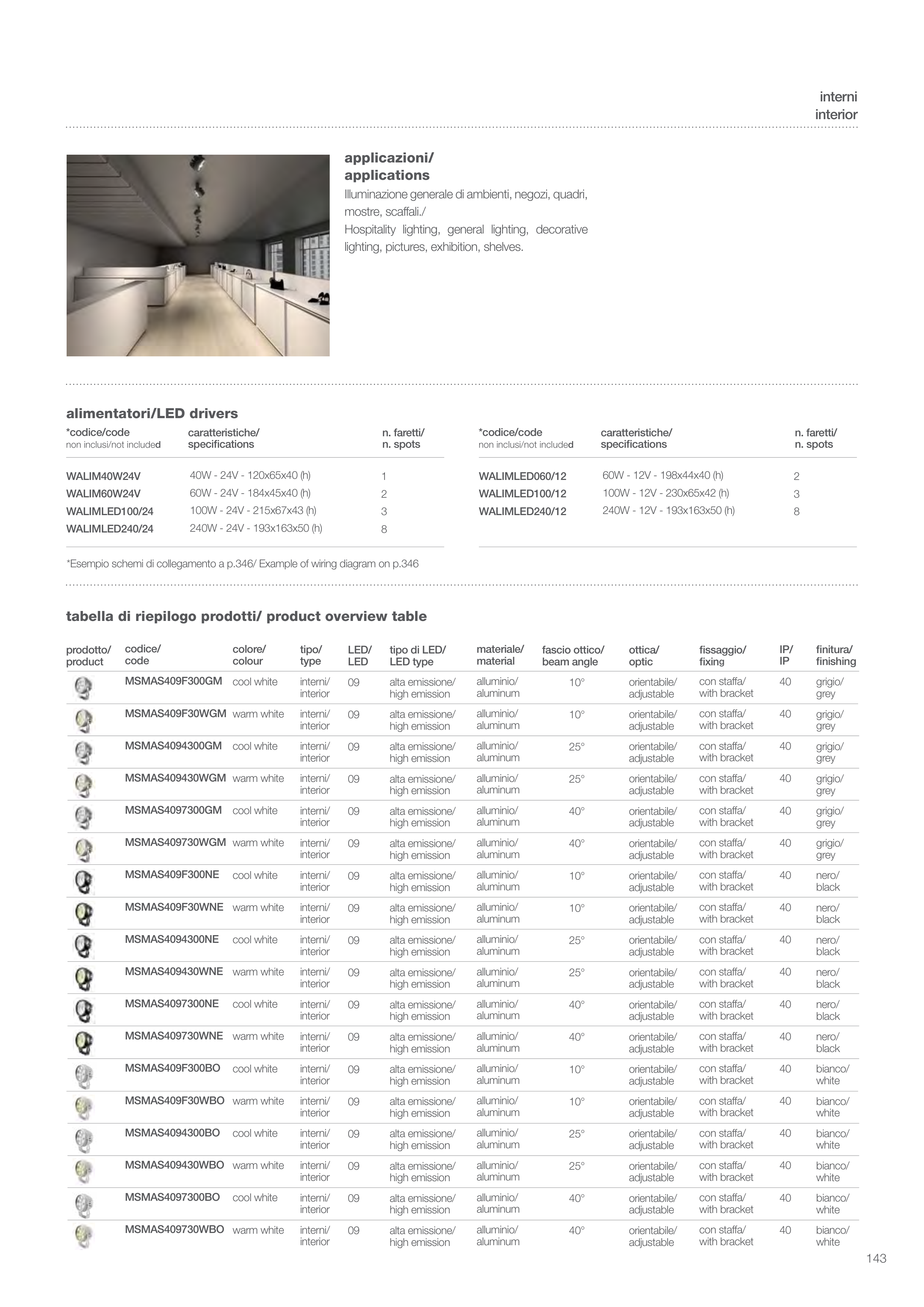

tabella di riepilogo prodotti/ product overview table
*codice/code
non inclusi/not included
*codice/code
non inclusi/not included
n. faretti/
n. spots
n. faretti/
n. spots
caratteristiche/
specifications
caratteristiche/
specifications
1
2
3
8
2
3
8
alimentatori/LED drivers
WALIM40W24V
WALIM60W24V
WALIMLED100/24
WALIMLED240/24
WALIMLED060/12
WALIMLED100/12
WALIMLED240/12
40W - 24V - 120x65x40 (h)
60W - 24V - 184x45x40 (h)
100W - 24V - 215x67x43 (h)
240W - 24V - 193x163x50 (h)
60W - 12V - 198x44x40 (h)
100W - 12V - 230x65x42 (h)
240W - 12V - 193x163x50 (h)
interior
interni
