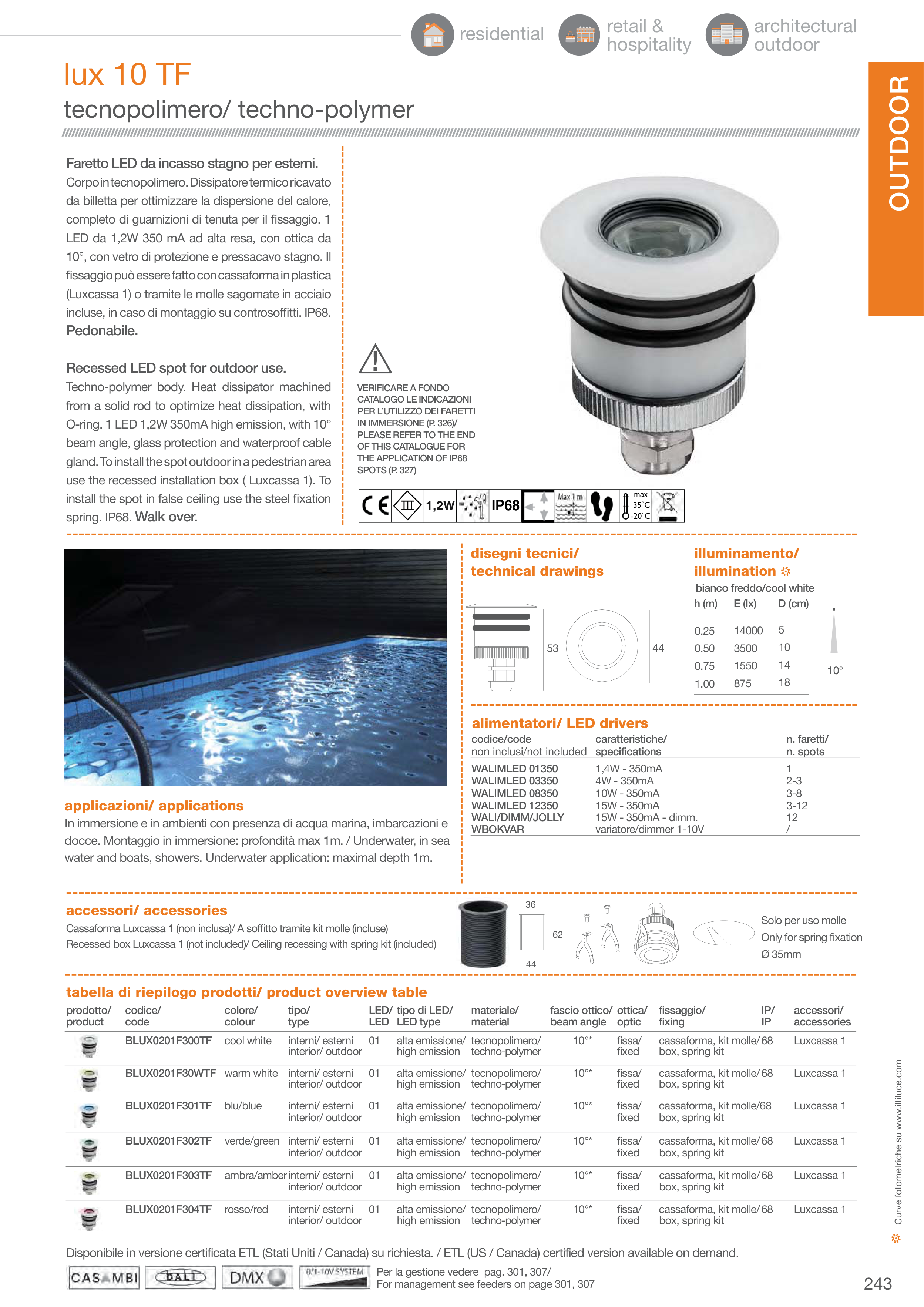

243
Faretto LED da incasso stagno per esterni.
Corpo in tecnopolimero. Dissipatore termico ricavato
da billetta per ottimizzare la dispersione del calore,
�����������������������������������������������������
LED da 1,2W 350 mA ad alta resa, con ottica da
10°, con vetro di protezione e pressacavo stagno. Il
�����������������������������������������������������
(Luxcassa 1) o tramite le molle sagomate in acciaio
������������������������������������������������������
Pedonabile.
Recessed LED spot for outdoor use.
Techno-polymer body. Heat dissipator machined
from a solid rod to optimize heat dissipation, with
O-ring. 1 LED 1,2W 350mA high emission, with 10°
beam angle, glass protection and waterproof cable
gland. To install the spot outdoor in a pedestrian area
use the recessed installation box ( Luxcassa 1). To
��������������������������������������������������������
spring. IP68. Walk over.
disegni tecnici/
technical drawings
alimentatori/ LED drivers
codice/code
caratteristiche/
n. faretti/
non inclusi/not included specifications
n. spots
WALIMLED 01350
1,4W - 350mA
1
WALIMLED 03350
4W - 350mA
2-3
WALIMLED 08350
10W - 350mA
3-8
WALIMLED 12350
15W - 350mA
3-12
WALI/DIMM/JOLLY
15W - 350mA - dimm.
12
WBOKVAR
variatore/dimmer 1-10V
/
applicazioni/ applications
In immersione e in ambienti con presenza di acqua marina, imbarcazioni e
docce. Montaggio in immersione: profondità max 1m. / Underwater, in sea
water and boats, showers. Underwater application: maximal depth 1m.
lux 10 TF
tecnopolimero/ techno-polymer
illuminamento/
illumination >
Solo per uso molle
�����������������������
Ø 35mm
accessori/ accessories
��������������������������������������������������������������������������
Recessed box Luxcassa 1 (not included)/ Ceiling recessing with spring kit (included)
44
36
62
h (m)
E (lx)
D (cm)
10°
44
53
bianco freddo/cool white
0.25
0.50
0.75
1.00
14000
3500
1550
875
5
10
14
18
tabella di riepilogo prodotti/ product overview table
prodotto/
codice/
colore/
tipo/
LED/ tipo di LED/
materiale/
fascio ottico/ ottica/ fissaggio/
IP/
accessori/
product
code
colour
type
LED LED type
material
beam angle optic
fixing
IP
accessories
BLUX0201F300TF
cool white
interni/ esterni
01
alta emissione/ tecnopolimero/
10°*
fissa/
cassaforma, kit molle/ 68
Luxcassa 1
interior/ outdoor
high emission techno-polymer
fixed
box, spring kit
BLUX0201F30WTF warm white interni/ esterni
01
alta emissione/ tecnopolimero/
10°*
fissa/
cassaforma, kit molle/ 68
Luxcassa 1
interior/ outdoor
high emission techno-polymer
fixed
box, spring kit
BLUX0201F301TF
blu/blue
interni/ esterni
01
alta emissione/ tecnopolimero/
10°*
fissa/
cassaforma, kit molle/68
Luxcassa 1
interior/ outdoor
high emission techno-polymer
fixed
box, spring kit
BLUX0201F302TF
verde/green interni/ esterni
01
alta emissione/ tecnopolimero/
10°*
fissa/
cassaforma, kit molle/ 68
Luxcassa 1
interior/ outdoor
high emission techno-polymer
fixed
box, spring kit
BLUX0201F303TF
ambra/amber interni/ esterni
01
alta emissione/ tecnopolimero/
10°*
fissa/
cassaforma, kit molle/ 68
Luxcassa 1
interior/ outdoor
high emission techno-polymer
fixed
box, spring kit
BLUX0201F304TF
rosso/red
interni/ esterni
01
alta emissione/ tecnopolimero/
10°*
fissa/
cassaforma, kit molle/ 68
Luxcassa 1
interior/ outdoor
high emission techno-polymer
fixed
box, spring kit
VERIFICARE A FONDO
CATALOGO LE INDICAZIONI
PER L’UTILIZZO DEI FARETTI
IN IMMERSIONE (P. 326)/
PLEASE REFER TO THE END
OF THIS CATALOGUE FOR
THE APPLICATION OF IP68
SPOTS (P. 327)
!
Curve fotometriche su www.iltiluce.com
>
OUTDOOR
Disponibile in versione certificata ETL (Stati Uniti / Canada) su richiesta. / ETL (US / Canada) certified version available on demand.
1,2W
IP68
max
�����
�����
Per la gestione vedere pag. 301, 307/
For management see feeders on page 301, 307
