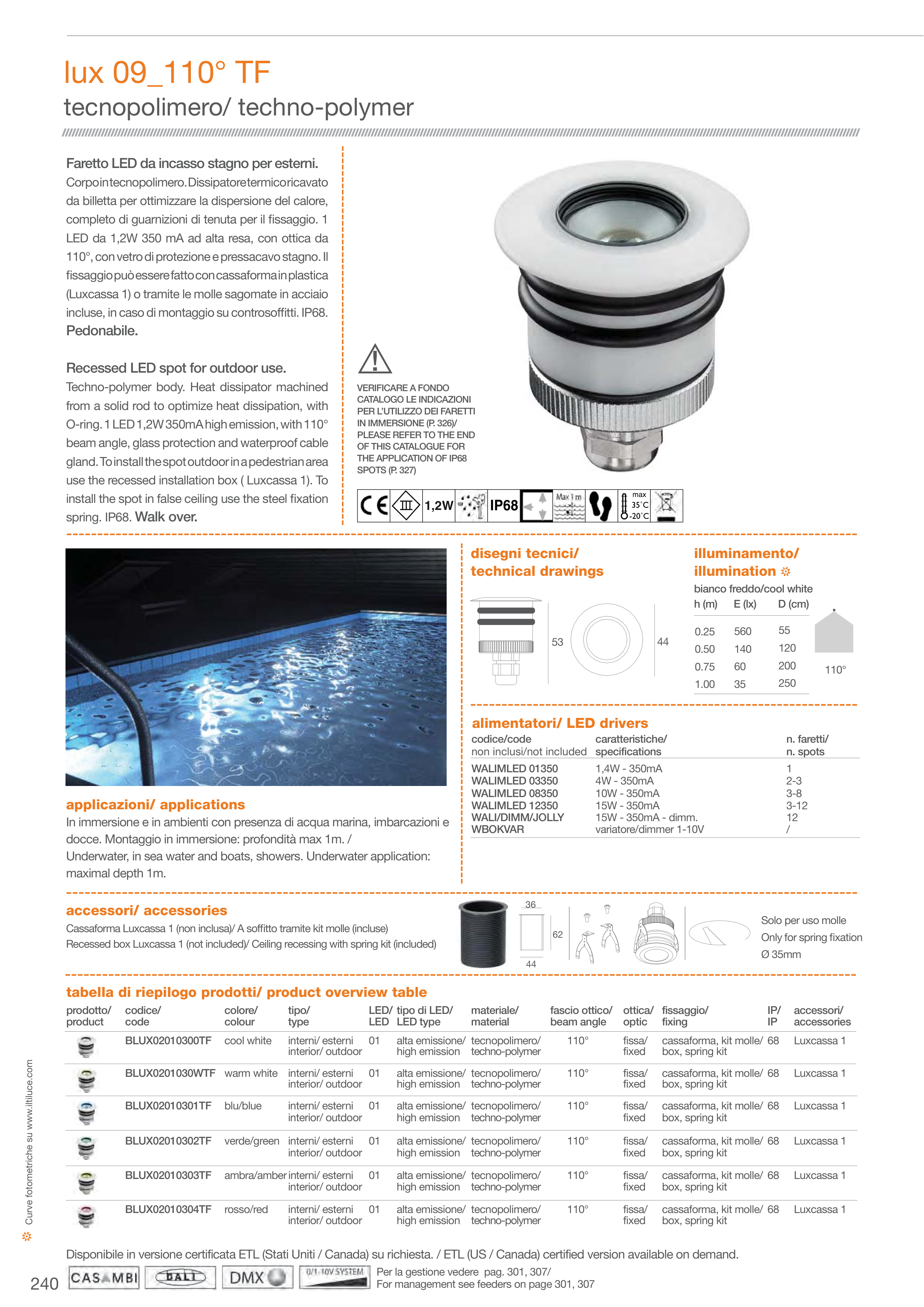

240
lux 09_110° TF
tecnopolimero/ techno-polymer
Faretto LED da incasso stagno per esterni.
Corpo in tecnopolimero. Dissipatore termico ricavato
da billetta per ottimizzare la dispersione del calore,
�����������������������������������������������������
LED da 1,2W 350 mA ad alta resa, con ottica da
110°, con vetro di protezione e pressacavo stagno. Il
�����������������������������������������������������
(Luxcassa 1) o tramite le molle sagomate in acciaio
������������������������������������������������������
Pedonabile.
Recessed LED spot for outdoor use.
Techno-polymer body. Heat dissipator machined
from a solid rod to optimize heat dissipation, with
O-ring. 1 LED 1,2W 350mA high emission, with 110°
beam angle, glass protection and waterproof cable
gland. To install the spot outdoor in a pedestrian area
use the recessed installation box ( Luxcassa 1). To
��������������������������������������������������������
spring. IP68. Walk over.
applicazioni/ applications
In immersione e in ambienti con presenza di acqua marina, imbarcazioni e
docce. Montaggio in immersione: profondità max 1m. /
Underwater, in sea water and boats, showers. Underwater application:
maximal depth 1m.
disegni tecnici/
technical drawings
illuminamento/
illumination >
Solo per uso molle
�����������������������
Ø 35mm
alimentatori/ LED drivers
codice/code
caratteristiche/
n. faretti/
non inclusi/not included specifications
n. spots
WALIMLED 01350
1,4W - 350mA
1
WALIMLED 03350
4W - 350mA
2-3
WALIMLED 08350
10W - 350mA
3-8
WALIMLED 12350
15W - 350mA
3-12
WALI/DIMM/JOLLY
15W - 350mA - dimm.
12
WBOKVAR
variatore/dimmer 1-10V
/
tabella di riepilogo prodotti/ product overview table
prodotto/
codice/
colore/
tipo/
LED/ tipo di LED/
materiale/
fascio ottico/ ottica/ fissaggio/
IP/
accessori/
product
code
colour
type
LED LED type
material
beam angle
optic
fixing
IP
accessories
BLUX02010300TF
cool white
interni/ esterni
01
alta emissione/ tecnopolimero/
110°
fissa/
cassaforma, kit molle/ 68
Luxcassa 1
interior/ outdoor
high emission techno-polymer
fixed
box, spring kit
BLUX0201030WTF warm white interni/ esterni
01
alta emissione/ tecnopolimero/
110°
fissa/
cassaforma, kit molle/ 68
Luxcassa 1
interior/ outdoor
high emission techno-polymer
fixed
box, spring kit
BLUX02010301TF
blu/blue
interni/ esterni
01
alta emissione/ tecnopolimero/
110°
fissa/
cassaforma, kit molle/ 68
Luxcassa 1
interior/ outdoor
high emission techno-polymer
fixed
box, spring kit
BLUX02010302TF
verde/green interni/ esterni
01
alta emissione/ tecnopolimero/
110°
fissa/
cassaforma, kit molle/ 68
Luxcassa 1
interior/ outdoor
high emission techno-polymer
fixed
box, spring kit
BLUX02010303TF
ambra/amber interni/ esterni
01
alta emissione/ tecnopolimero/
110°
fissa/
cassaforma, kit molle/ 68
Luxcassa 1
interior/ outdoor
high emission techno-polymer
fixed
box, spring kit
BLUX02010304TF
rosso/red
interni/ esterni
01
alta emissione/ tecnopolimero/
110°
fissa/
cassaforma, kit molle/ 68
Luxcassa 1
interior/ outdoor
high emission techno-polymer
fixed
box, spring kit
h (m)
E (lx)
D (cm)
0.25
0.50
0.75
1.00
560
140
60
35
55
120
200
250
110°
bianco freddo/cool white
44
53
accessori/ accessories
��������������������������������������������������������������������������
Recessed box Luxcassa 1 (not included)/ Ceiling recessing with spring kit (included)
44
36
62
VERIFICARE A FONDO
CATALOGO LE INDICAZIONI
PER L’UTILIZZO DEI FARETTI
IN IMMERSIONE (P. 326)/
PLEASE REFER TO THE END
OF THIS CATALOGUE FOR
THE APPLICATION OF IP68
SPOTS (P. 327)
!
Curve fotometriche su www.iltiluce.com
>
Disponibile in versione certificata ETL (Stati Uniti / Canada) su richiesta. / ETL (US / Canada) certified version available on demand.
1,2W
IP68
max
�����
�����
Per la gestione vedere pag. 301, 307/
For management see feeders on page 301, 307
