13
10
2
11
8
3
12
9
4
13
5
14
6
1
10
7
7
2
1
3
13
5
14
8
6
4
9
11
12
10
25 m
50 m
200 m
36*
lux
4
5
1
2
3
100 m
1. Super Spot (SS) α 5°
Application: Agorà ø 526 mm with very high performance
and luminous flux for illumination up to great heights.
Installation: pole-mounted at a height of 12 m.
2. Spot (S) α 14°
Application: Agorà ø 312 mm, a high performance optic
used to illuminate architectural details.
Installation: surface mount.
3. Flood (F) α 25°
Application: Agorà ø 526 mm with very high performance
and luminous flux for illumination up to great heights.
Installation: pole-mounted at a height of 12 m.
4. Wide Flood (WF) α 40°
Application: Agorà ø 390 mm, high performance for
uniform distribution over façades.
Installation: on bracket.
5. Very Wide Flood (VWF)
Application: Agorà ø 312 mm controlled luminous flux and
broad light distribution over the façade.
Installation: surface mount.
6. Wall Washer (WW)
Application: Agorà ø 390 mm optic designed to illuminate
the entire surface at the same intensity.
Installation: surface mount, exploiting the height of the
adjacent building.
7. Super Spot + Refractor for distribution
Application: Agorà ø 526 mm with elliptical refractor; the
ideal ogival optic for this architecture.
Installation: surface mount.
8. Spot + Refractor for distribution
Application: Agorà ø 390 mm with elliptical refractor, the
ideal ogival optic ideal for this task.
Installation: surface mount.
9. Flood + Refractor for distribution
Application: Agorà ø 312 mm with elliptical refractor, the
ideal ogival optic for this task.
Installation: bracket mount, taking advantage of the height
of the building itself.
10. Super Spot + Diffuser glass
Application: Agorà ø 312 mm precision yet with less
distinct edges to unify light distribution in height.
Installation: surface mount.
11. Spot + Diffuser glass
Application: Agorà ø 312 mm with diffuser accessory for
uniform light distribution.
Installation: surface mount.
12. Flood + Diffuser glass
Application: Agorà ø 390 mm with diffuser accessory for
uniform light distribution.
Installation: bracket mount, taking advantage of the height
of the building itself.
13. Wide Flood + Diffuser glass
Application: Agorà ø 312 mm with diffuser accessory for
complete uniformity.
Installation: surface mount.
14. Very Wide Flood + Diffuser glass
Application: Agorà ø 312 mm with diffuser accessory for
maximum uniformity.
Installation: surface mount.
Agorà
Basic optics
Agorà +
Elliptical
distribution
refractor
Agorà +
Diffuser glass
Indoor lighting systems
Outdoor lighting systems
Diffuser glass
Refractor
for elliptical
distribution
Crossways
blade louvre
Cylindrical
Screen at 45°
Screen
cylindrical
Protection grille
Perfect Effect
We have eliminated the double
ring effect, thereby achieving
a well-defined light circle. The
intensity at the limit angle is close
to 50% max intensity
1. 50% lmax Beam Angle
4. 5° ø18m
2. 10% lmax Field Angle
3. 10° ø35m
5. Agorà Compact ø515 Super
Spot 5°
* lmax

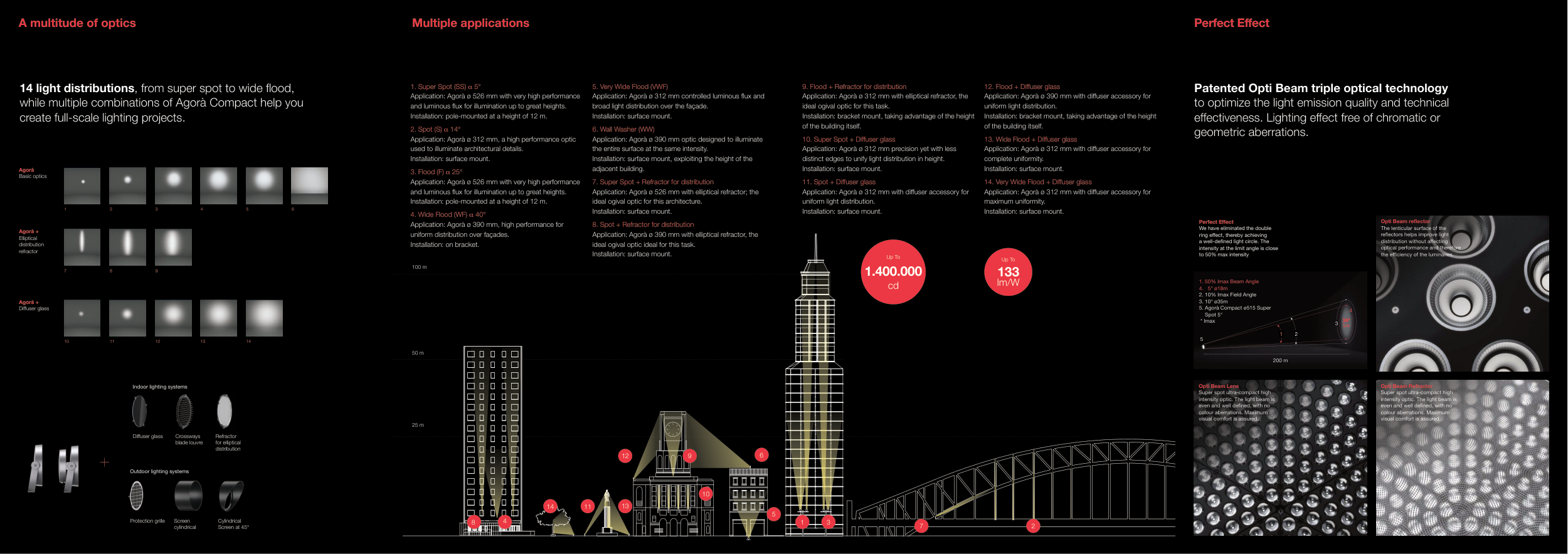

A multitude of optics
Multiple applications
14 light distributions, from super spot to wide flood,
while multiple combinations of Agorà Compact help you
create full-scale lighting projects.
Perfect Effect
Patented Opti Beam triple optical technology
to optimize the light emission quality and technical
effectiveness. Lighting effect free of chromatic or
geometric aberrations.
Opti Beam Lens
Super spot ultra-compact high
intensity optic. The light beam is
even and well defined, with no
colour aberrations. Maximum
visual comfort is assured.
Opti Beam reflector
The lenticular surface of the
reflectors helps improve light
distribution without affecting
optical performance and therefore
the efficiency of the luminaires.
Opti Beam Refractor
Super spot ultra-compact high
intensity optic. The light beam is
even and well defined, with no
colour aberrations. Maximum
visual comfort is assured.
Up To
133
lm/W
Up To
1.400.000
cd
