11
10
+
+

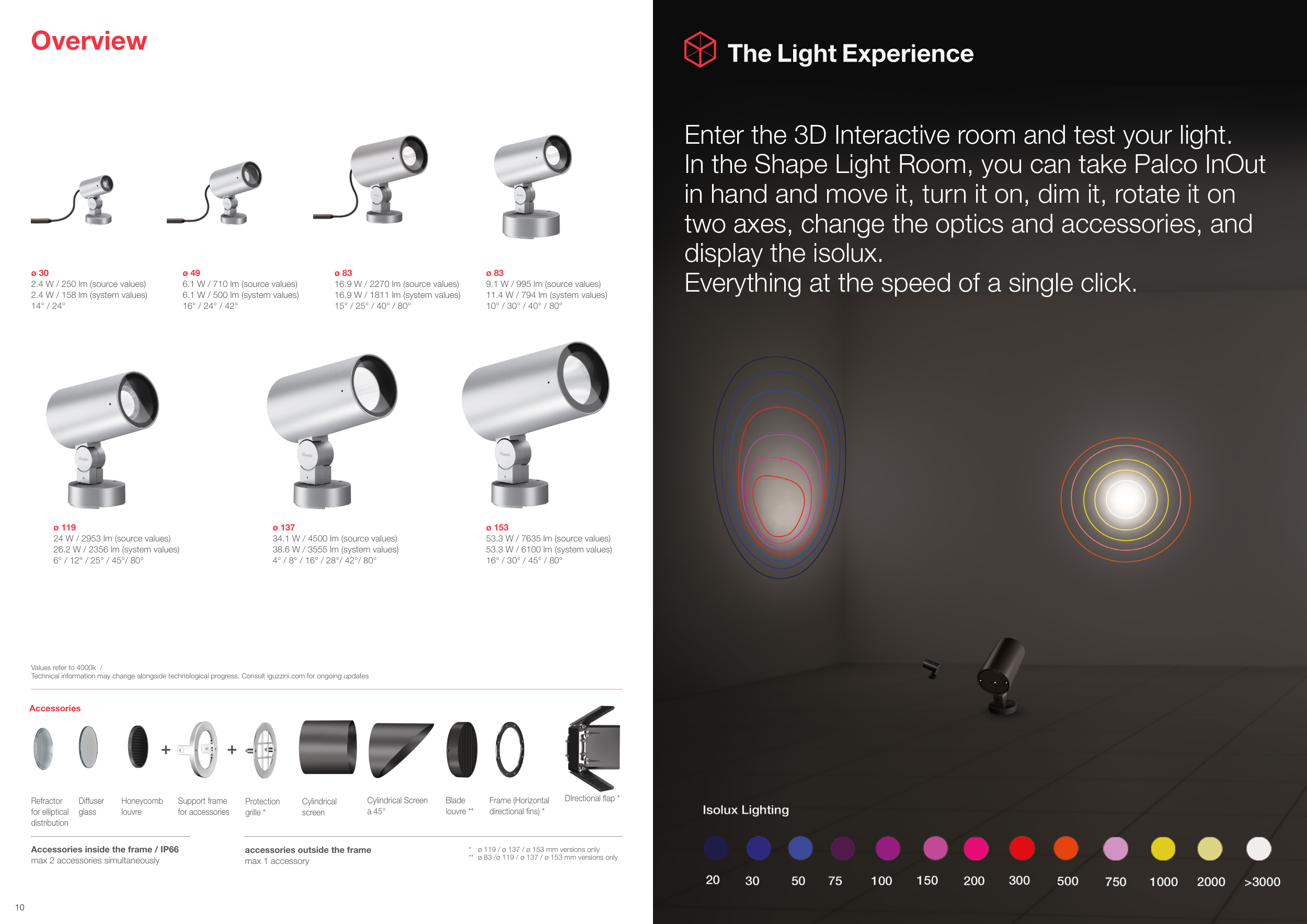

Overview
ø 153
53.3 W / 7635 lm (source values)
53.3 W / 6100 lm (system values)
16° / 30° / 45° / 80°
ø 83
9.1 W / 995 lm (source values)
11.4 W / 794 lm (system values)
10° / 30° / 40° / 80°
ø 119
24 W / 2953 lm (source values)
26.2 W / 2356 lm (system values)
6° / 12° / 25° / 45°/ 80°
ø 137
34.1 W / 4500 lm (source values)
38.6 W / 3555 lm (system values)
4° / 8° / 16° / 28°/ 42°/ 80°
ø 83
16.9 W / 2270 lm (source values)
16.9 W / 1811 lm (system values)
15° / 25° / 40° / 80°
ø 30
2.4 W / 250 lm (source values)
2.4 W / 158 lm (system values)
14° / 24°
ø 49
6.1 W / 710 lm (source values)
6.1 W / 500 lm (system values)
16° / 24° / 42°
Values refer to 4000k /
Technical information may change alongside technological progress. Consult iguzzini.com for ongoing updates
Refractor
for elliptical
distribution
Accessories inside the frame / IP66
max 2 accessories simultaneously
accessories outside the frame
max 1 accessory
Diffuser
glass
Honeycomb
louvre
Support frame
for accessories
Protection
grille *
Blade
louvre **
Cylindrical
screen
Cylindrical Screen
a 45°
DIrectional flap *
Frame (Horizontal
directional fins) *
* ø 119 / ø 137 / ø 153 mm versions only
** ø 83 /ø 119 / ø 137 / ø 153 mm versions only
Accessories
Enter the 3D Interactive room and test your light.
In the Shape Light Room, you can take Palco InOut
in hand and move it, turn it on, dim it, rotate it on
two axes, change the optics and accessories, and
display the isolux.
Everything at the speed of a single click.
