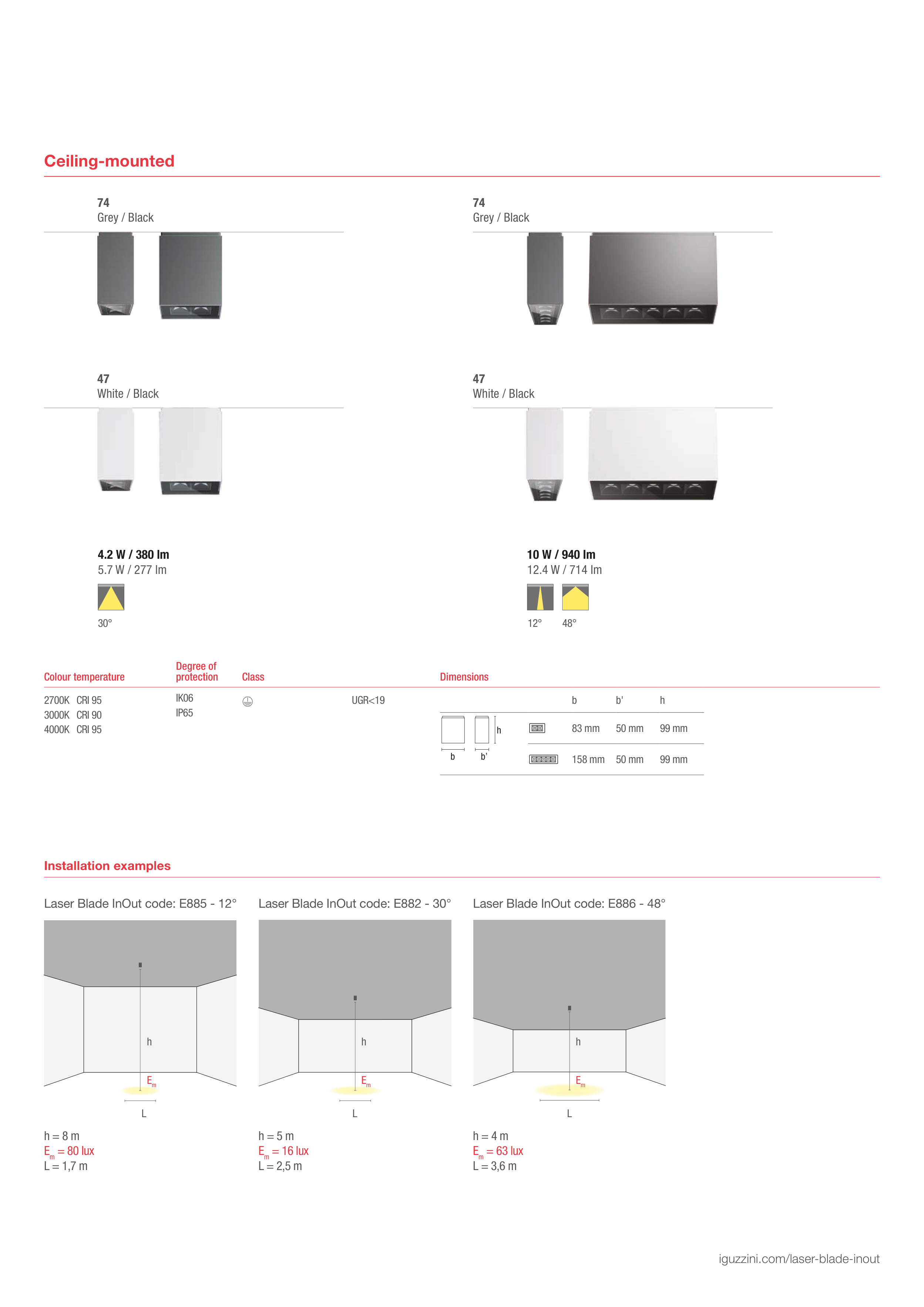

Ceiling-mounted
Laser Blade InOut code: E886 - 48°
Laser Blade InOut code: E882 - 30°
Laser Blade InOut code: E885 - 12°
Em
Em
h
h
L
L
Em
h
L
h = 4 m
Em = 63 lux
L = 3,6 m
h = 5 m
Em = 16 lux
L = 2,5 m
h = 8 m
Em = 80 lux
L = 1,7 m
Installation examples
Colour temperature
Degree of
protection
Class
Dimensions
2700K CRI 95
3000K CRI 90
4000K CRI 95
IK06
IP65
UGR<19
b
b'
h
b
b’
h
83 mm
50 mm
99 mm
158 mm
50 mm
99 mm
74
Grey / Black
74
Grey / Black
47
White / Black
47
White / Black
iguzzini.com/laser-blade-inout
10 W / 940 lm
12.4 W / 714 lm
4.2 W / 380 lm
5.7 W / 277 lm
48°
30°
12°
