11

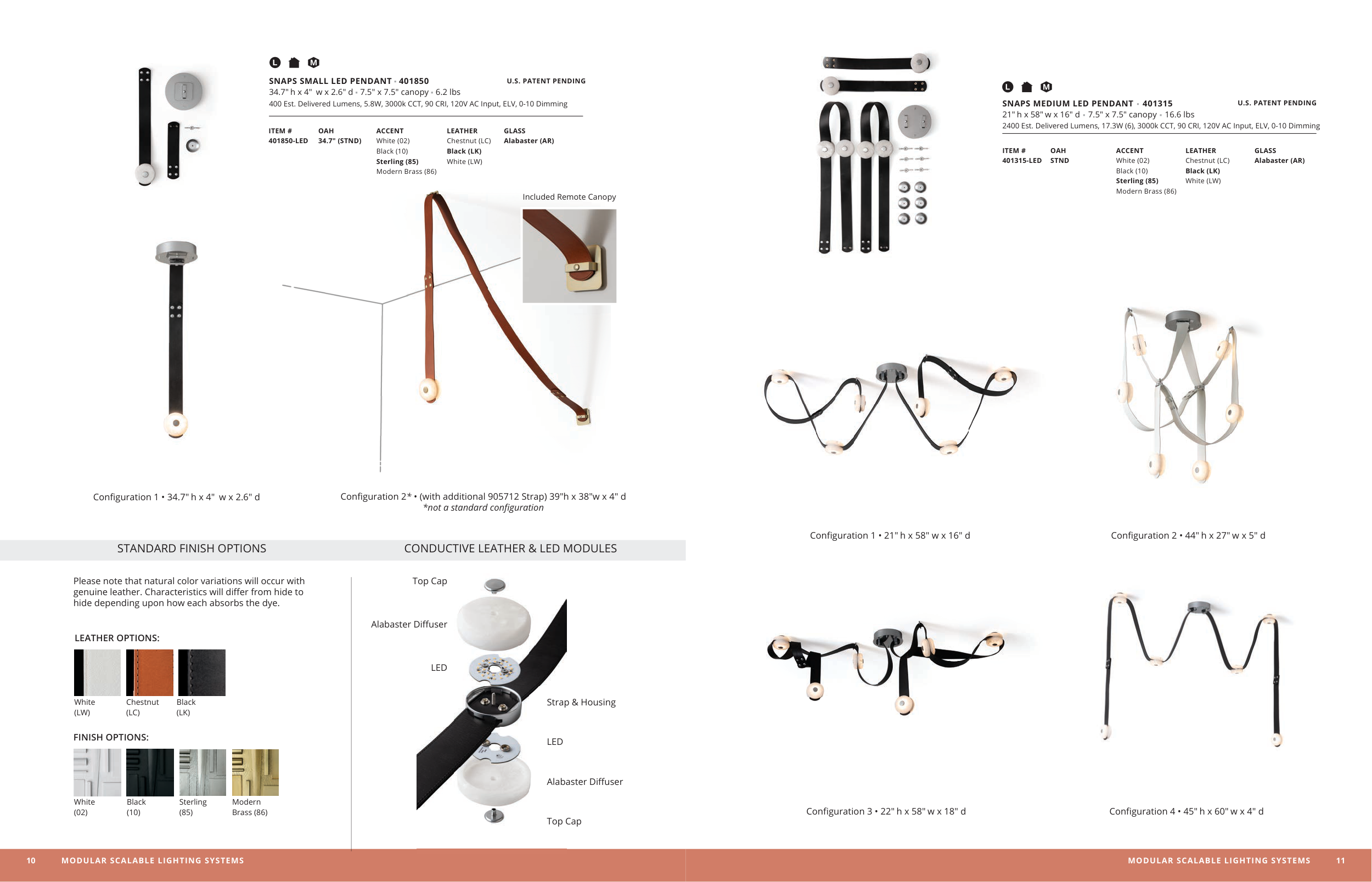

MODULAR SCALABLE LIGHTING SYSTEMS
10
MODULAR SCALABLE LIGHTING SYSTEMS
Configuration 1 • 34.7" h x 4" w x 2.6" d
Configuration 2* • (with additional 905712 Strap) 39"h x 38"w x 4" d
*not a standard configuration
White
(LW)
Chestnut
(LC)
LEATHER OPTIONS:
Black
(LK)
Please note that natural color variations will occur with
genuine leather. Characteristics will diff er from hide to
hide depending upon how each absorbs the dye.
FINISH OPTIONS:
White
(02)
Black
(10)
Sterling
(85)
Modern
Brass (86)
Strap & Housing
LED
Alabaster Diff user
Top Cap
Top Cap
Alabaster Diff user
LED
CONDUCTIVE LEATHER & LED MODULES
STANDARD FINISH OPTIONS
Included Remote Canopy
Configuration 1 • 21" h x 58" w x 16" d
Configuration 2 • 44" h x 27" w x 5" d
Configuration 3 • 22" h x 58" w x 18" d
ITEM #
OAH
ACCENT
LEATHER
GLASS
401315-LED
STND
White (02)
Chestnut (LC)
Alabaster (AR)
Black (10)
Black (LK)
Sterling (85)
White (LW)
Modern Brass (86)
SNAPS MEDIUM LED PENDANT
401315
21" h x 58" w x 16" d 7.5" x 7.5" canopy 16.6 lbs
2400 Est. Delivered Lumens, 17.3W (6), 3000k CCT, 90 CRI, 120V AC Input, ELV, 0-10 Dimming
Configuration 4 • 45" h x 60" w x 4" d
U.S. PATENT PENDING
ITEM #
OAH
ACCENT
LEATHER
GLASS
401850-LED
34.7" (STND)
White (02)
Chestnut (LC)
Alabaster (AR)
Black (10)
Black (LK)
Sterling (85)
White (LW)
Modern Brass (86)
SNAPS SMALL LED PENDANT
401850
34.7" h x 4" w x 2.6" d
7.5" x 7.5" canopy
6.2 lbs
400 Est. Delivered Lumens, 5.8W, 3000k CCT, 90 CRI, 120V AC Input, ELV, 0-10 Dimming
U.S. PATENT PENDING
