Lighting collection
188
Lighting collection
189
New irregular shapes for the iconic Light Ring Polygonal Evo, paired with an overall
language of repeating, iterative configurations, create bespoke constellations. Rhythmic
cadences punctuate the space weaving gorgeous narratives that tantalize with a sense
of wonderment.
Nuove forme irregolari per l’iconico anello luminoso poligonale EVO, abbinato a
un linguaggio di continue configurazioni iterative che creano delle costellazioni su
misura. Cadenze ritmiche punteggiano lo spazio intrecciando splendide narrazioni che
stuzzicano con un senso di meraviglia.
DETAILS
• Metal pendant lights with rings of different sizes.
• Energy-saving LED light (energy efficiency index A).
• Transformer integrated into the ceiling rosette.
• Alternative mounting system with
a remote transformer.
• Low voltage power supplied through
suspension cables.
• Standard total height 180 cm.
LIGHT SOURCE
• COB LED 24V 3000K.
• Upon request available with extra warm light
2700K or 4000K.
• Available 110V upon request.
• Dimming function included.
DETTAGLI
• Lampade a sospensione in metallo con anelli di
dimensioni diverse.
• Sorgente luminosa rivolta verso il basso
o verso l’interno.
• Sospensione a led a risparmio energetico
(Indice di efficienza energetica A).
• Trasformatore integrato nel rosone a soffitto.
• Sistema di montaggio alternativo con
trasformatore remoto.
• Alimentazione a bassa tensione fornita tramite
cavi di sospensione.
• Altezza totale standard 180 cm.
FONTE LUMINOSA
• LED 24V 3000K.
• Su richiesta disponibile con luce extra calda
a 2700K o 4000K.
• Disponibile 110V su richiesta.
• Dimmerabile.

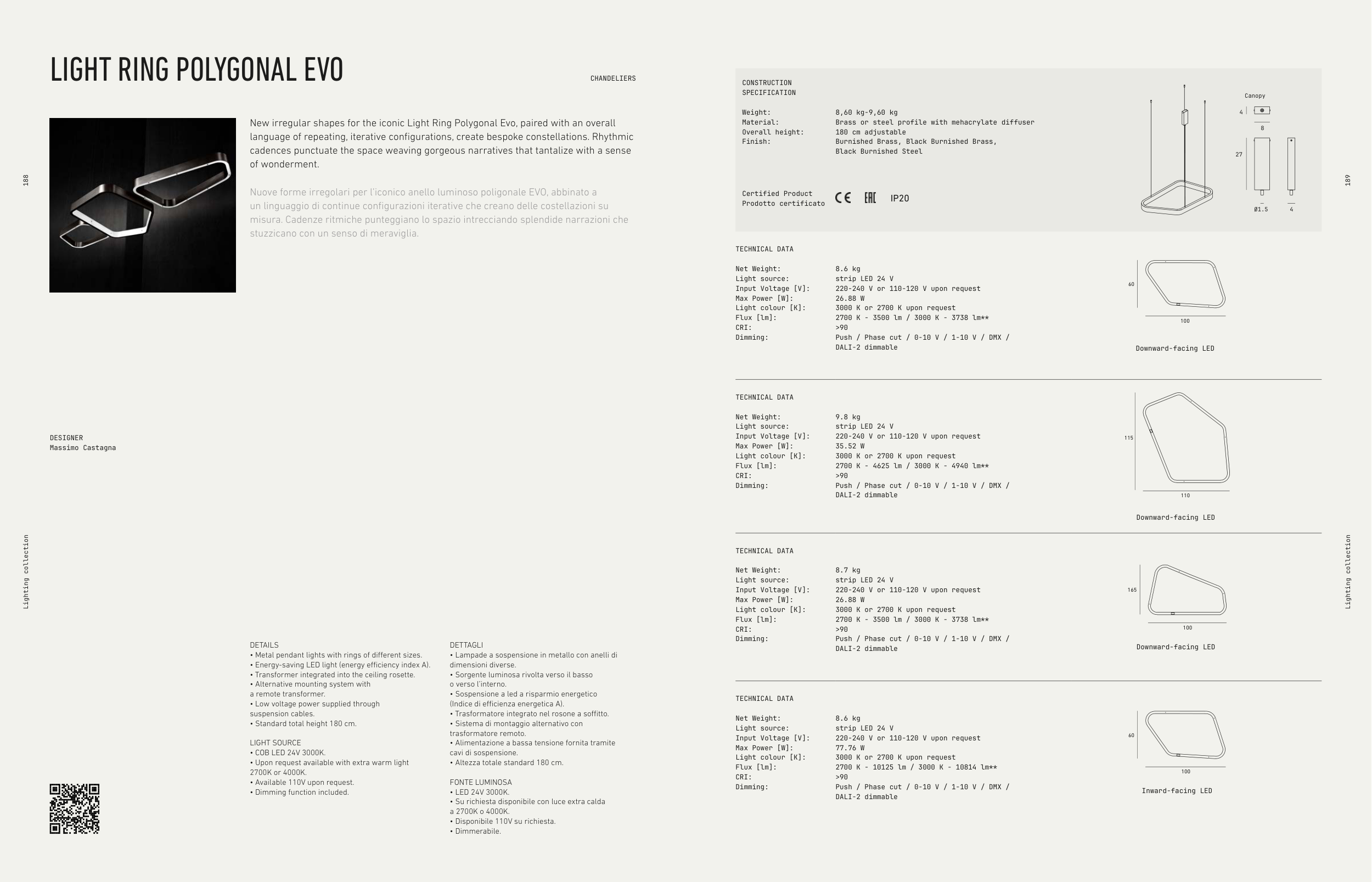

LIGHT RING POLYGONAL EVO
CHANDELIERS
CONSTRUCTION
SPECIFICATION
Weight:
Material:
Overall height:
Finish:
8,60 kg-9,60 kg
Brass or steel profile with mehacrylate diffuser
180 cm adjustable
Burnished Brass, Black Burnished Brass,
Black Burnished Steel
Certified Product
Prodotto certificato
IP20
TECHNICAL DATA
Net Weight:
Light source:
Input Voltage [V]:
Max Power [W]:
Light colour [K]:
Flux [lm]:
CRI:
Dimming:
8.6 kg
strip LED 24 V
220-240 V or 110-120 V upon request
26.88 W
3000 K or 2700 K upon request
2700 K - 3500 lm / 3000 K - 3738 lm**
>90
Push / Phase cut / 0-10 V / 1-10 V / DMX /
DALI-2 dimmable
Downward-facing LED
100
60
TECHNICAL DATA
Net Weight:
Light source:
Input Voltage [V]:
Max Power [W]:
Light colour [K]:
Flux [lm]:
CRI:
Dimming:
9.8 kg
strip LED 24 V
220-240 V or 110-120 V upon request
35.52 W
3000 K or 2700 K upon request
2700 K - 4625 lm / 3000 K - 4940 lm**
>90
Push / Phase cut / 0-10 V / 1-10 V / DMX /
DALI-2 dimmable
Downward-facing LED
115
110
TECHNICAL DATA
Net Weight:
Light source:
Input Voltage [V]:
Max Power [W]:
Light colour [K]:
Flux [lm]:
CRI:
Dimming:
8.7 kg
strip LED 24 V
220-240 V or 110-120 V upon request
26.88 W
3000 K or 2700 K upon request
2700 K - 3500 lm / 3000 K - 3738 lm**
>90
Push / Phase cut / 0-10 V / 1-10 V / DMX /
DALI-2 dimmable
165
100
Downward-facing LED
TECHNICAL DATA
Net Weight:
Light source:
Input Voltage [V]:
Max Power [W]:
Light colour [K]:
Flux [lm]:
CRI:
Dimming:
8.6 kg
strip LED 24 V
220-240 V or 110-120 V upon request
77.76 W
3000 K or 2700 K upon request
2700 K - 10125 lm / 3000 K - 10814 lm**
>90
Push / Phase cut / 0-10 V / 1-10 V / DMX /
DALI-2 dimmable
Inward-facing LED
100
60
DESIGNER
Massimo Castagna
8
Ø1.5
4
Canopy
27
4
