DETAILS
• Metal pendant lights with rings of different sizes.
• Energy-saving LED light (energy efficiency index A).
• Transformer integrated into the ceiling rosette.
• Alternative mounting system with a remote
transformer.
• Low voltage power supplied through
suspension cables.
• Standard total height 180 cm.
LIGHT SOURCE
• COB LED 24V 3000K.
• Upon request available with extra
warm light 2700K.
• Available 110V upon request.
• Dimming function included.
DETTAGLI
• Lampade a sospensione in metallo con anelli di
dimensioni diverse.
• Sospensione a led a risparmio energetico (Indice di
efficienza energetica A).
• Trasformatore integrato nel rosone a soffitto.
• Sistema di montaggio alternativo
con trasformatore remoto.
• Alimentazione a bassa tensione fornita tramite cavi
di sospensione.
• Altezza totale standard 180 cm.
FONTE LUMINOSA
• COB LED 24V 3000K.
• Su richiesta disponibile con luce extra
calda a 2700K.
• Disponibile 110V su richiesta.
• Dimmerabile.
Metal cylinders in different finishes and sizes, supported by metal cables, combined
and concerted with total creative freedom, draw dynamic and vibrant luminous
graphisms.
Cilindri metallici in diverse finiture e dimensioni, sorretti da cavi metallici, accostati e
concertati in totale libertà creativa, disegnano grafismi luminosi dinamici e vibranti.

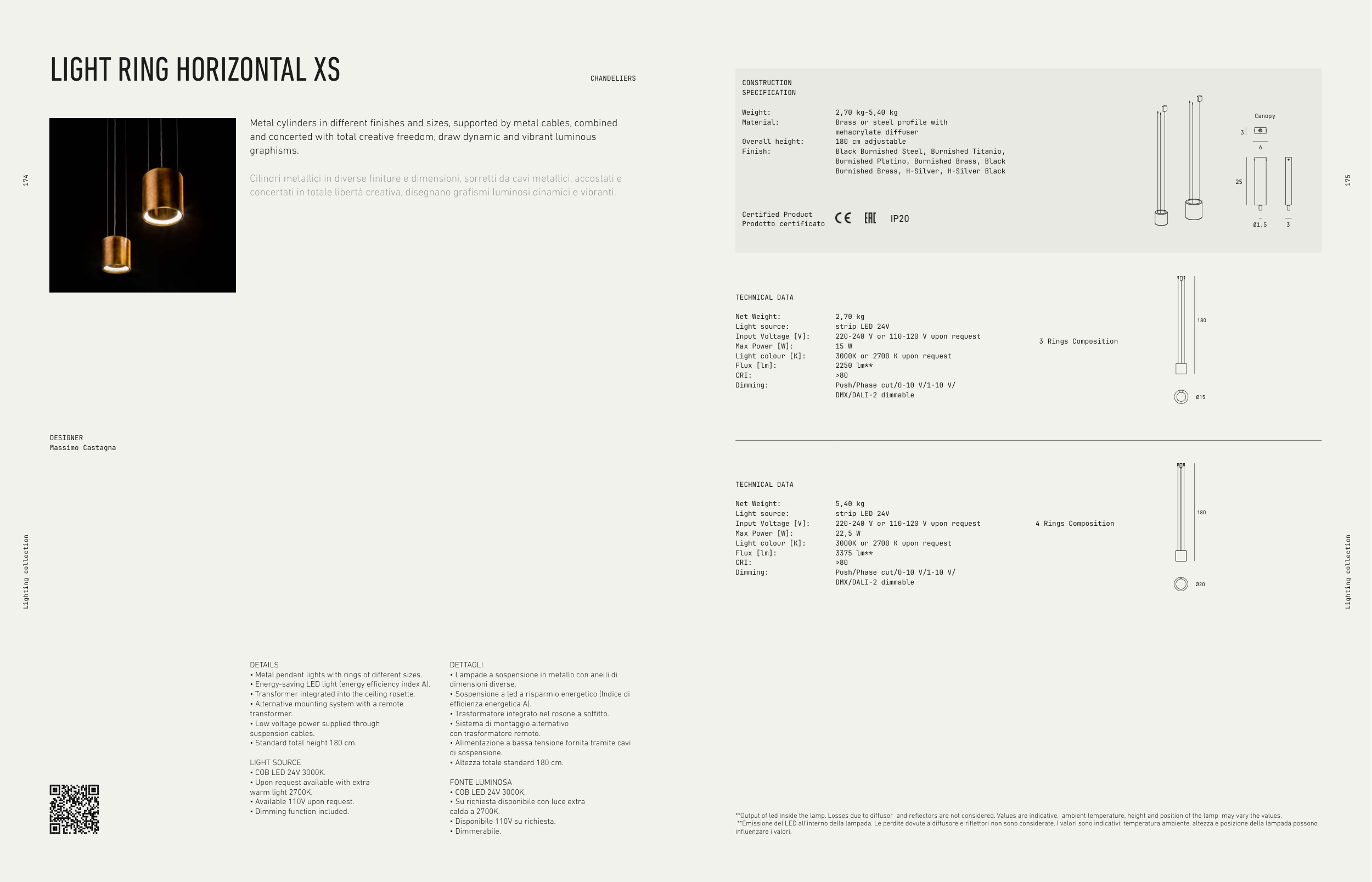

LIGHT RING HORIZONTAL XS
CHANDELIERS
CONSTRUCTION
SPECIFICATION
Weight:
Material:
Overall height:
Finish:
2,70 kg-5,40 kg
Brass or steel profile with
mehacrylate diffuser
180 cm adjustable
Black Burnished Steel, Burnished Titanio,
Burnished Platino, Burnished Brass, Black
Burnished Brass, H-Silver, H-Silver Black
Certified Product
Prodotto certificato
IP20
TECHNICAL DATA
Net Weight:
Light source:
Input Voltage [V]:
Max Power [W]:
Light colour [K]:
Flux [lm]:
CRI:
Dimming:
2,70 kg
strip LED 24V
220-240 V or 110-120 V upon request
15 W
3000K or 2700 K upon request
2250 lm**
>80
Push/Phase cut/0-10 V/1-10 V/
DMX/DALI-2 dimmable
3 Rings Composition
180
Ø15
TECHNICAL DATA
Net Weight:
Light source:
Input Voltage [V]:
Max Power [W]:
Light colour [K]:
Flux [lm]:
CRI:
Dimming:
5,40 kg
strip LED 24V
220-240 V or 110-120 V upon request
22,5 W
3000K or 2700 K upon request
3375 lm**
>80
Push/Phase cut/0-10 V/1-10 V/
DMX/DALI-2 dimmable
4 Rings Composition
Ø20
180
**Output of led inside the lamp. Losses due to diffusor and reflectors are not considered. Values are indicative, ambient temperature, height and position of the lamp may vary the values.
**Emissione del LED all’interno della lampada. Le perdite dovute a diffusore e riflettori non sono considerate. I valori sono indicativi: temperatura ambiente, altezza e posizione della lampada possono
influenzare i valori.
DESIGNER
Massimo Castagna
6
Ø1.5
3
Canopy
25
3
