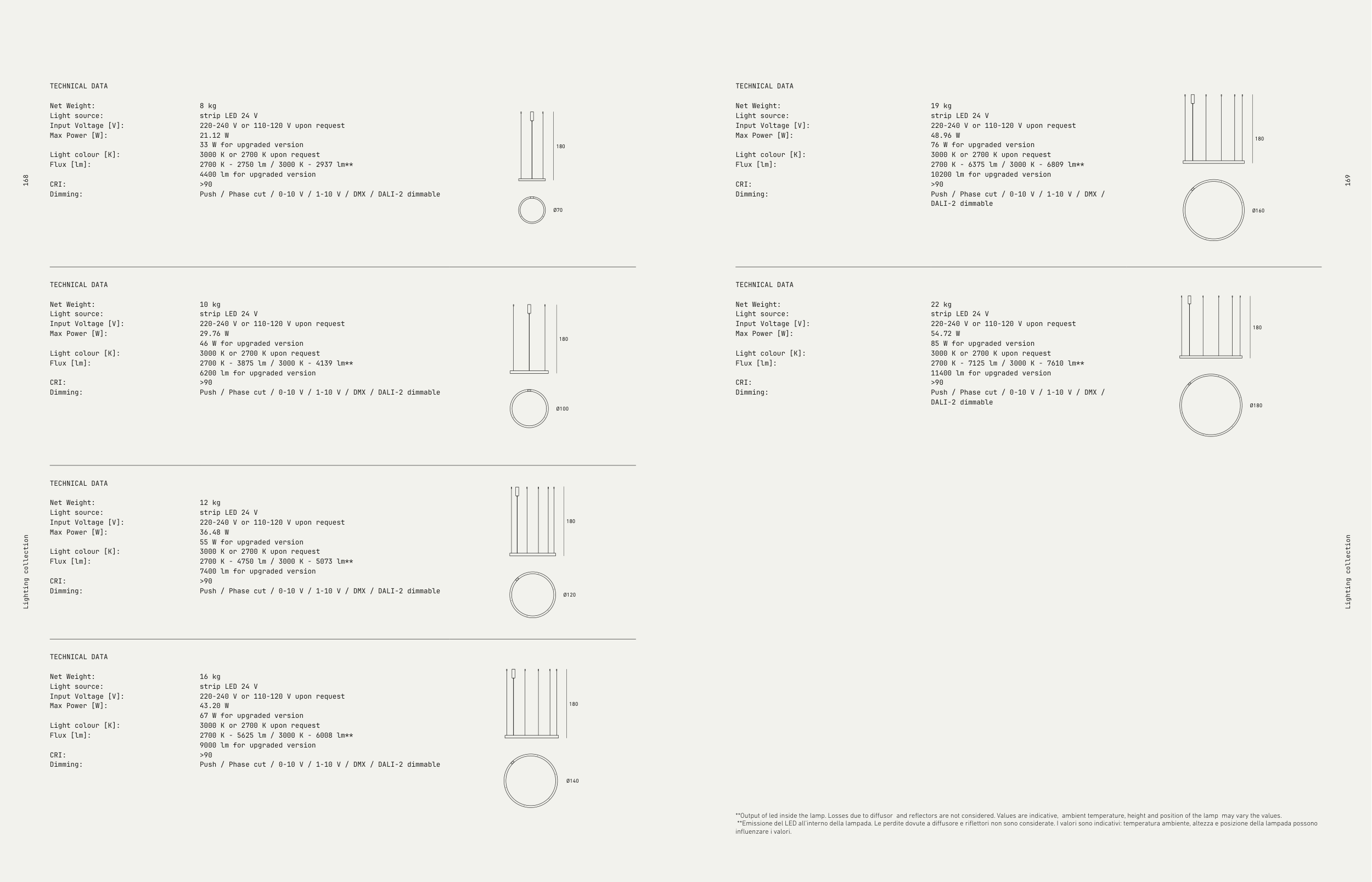

Lighting collection
168
Lighting collection
169
TECHNICAL DATA
Net Weight:
Light source:
Input Voltage [V]:
Max Power [W]:
Light colour [K]:
Flux [lm]:
CRI:
Dimming:
8 kg
strip LED 24 V
220-240 V or 110-120 V upon request
21.12 W
33 W for upgraded version
3000 K or 2700 K upon request
2700 K - 2750 lm / 3000 K - 2937 lm**
4400 lm for upgraded version
>90
Push / Phase cut / 0-10 V / 1-10 V / DMX / DALI-2 dimmable
180
Ø70
TECHNICAL DATA
Net Weight:
Light source:
Input Voltage [V]:
Max Power [W]:
Light colour [K]:
Flux [lm]:
CRI:
Dimming:
10 kg
strip LED 24 V
220-240 V or 110-120 V upon request
29.76 W
46 W for upgraded version
3000 K or 2700 K upon request
2700 K - 3875 lm / 3000 K - 4139 lm**
6200 lm for upgraded version
>90
Push / Phase cut / 0-10 V / 1-10 V / DMX / DALI-2 dimmable
180
Ø100
TECHNICAL DATA
Net Weight:
Light source:
Input Voltage [V]:
Max Power [W]:
Light colour [K]:
Flux [lm]:
CRI:
Dimming:
12 kg
strip LED 24 V
220-240 V or 110-120 V upon request
36.48 W
55 W for upgraded version
3000 K or 2700 K upon request
2700 K - 4750 lm / 3000 K - 5073 lm**
7400 lm for upgraded version
>90
Push / Phase cut / 0-10 V / 1-10 V / DMX / DALI-2 dimmable
180
Ø120
TECHNICAL DATA
Net Weight:
Light source:
Input Voltage [V]:
Max Power [W]:
Light colour [K]:
Flux [lm]:
CRI:
Dimming:
16 kg
strip LED 24 V
220-240 V or 110-120 V upon request
43.20 W
67 W for upgraded version
3000 K or 2700 K upon request
2700 K - 5625 lm / 3000 K - 6008 lm**
9000 lm for upgraded version
>90
Push / Phase cut / 0-10 V / 1-10 V / DMX / DALI-2 dimmable
180
Ø140
TECHNICAL DATA
Net Weight:
Light source:
Input Voltage [V]:
Max Power [W]:
Light colour [K]:
Flux [lm]:
CRI:
Dimming:
19 kg
strip LED 24 V
220-240 V or 110-120 V upon request
48.96 W
76 W for upgraded version
3000 K or 2700 K upon request
2700 K - 6375 lm / 3000 K - 6809 lm**
10200 lm for upgraded version
>90
Push / Phase cut / 0-10 V / 1-10 V / DMX /
DALI-2 dimmable
180
Ø160
TECHNICAL DATA
Net Weight:
Light source:
Input Voltage [V]:
Max Power [W]:
Light colour [K]:
Flux [lm]:
CRI:
Dimming:
22 kg
strip LED 24 V
220-240 V or 110-120 V upon request
54.72 W
85 W for upgraded version
3000 K or 2700 K upon request
2700 K - 7125 lm / 3000 K - 7610 lm**
11400 lm for upgraded version
>90
Push / Phase cut / 0-10 V / 1-10 V / DMX /
DALI-2 dimmable
180
Ø180
**Output of led inside the lamp. Losses due to diffusor and reflectors are not considered. Values are indicative, ambient temperature, height and position of the lamp may vary the values.
**Emissione del LED all’interno della lampada. Le perdite dovute a diffusore e riflettori non sono considerate. I valori sono indicativi: temperatura ambiente, altezza e posizione della lampada possono
influenzare i valori.
