Lighting collection
160
Lighting collection
161
DETAILS
• Metal pendant lights with rings of different sizes.
• Light source downward or inward facing.
• Pendant energy-saving LED light
(Energy efficiency index A).
• Low voltage power supplied through
suspension cable.
• Transformer integrated into the ceiling rosette.
LIGHT SOURCE
• LED 24V 3000K.
• Upon request available with extra warm light
2700K or 4000K.
• Available 110V upon request.
• Dimming function included.
DETTAGLI
• Lampade a sospensione in metallo con anelli di
dimensioni diverse.
• Sorgente luminosa rivolta verso il basso o verso
l’interno.
• Sospensione a led a risparmio energetico
(Indice di efficienza energetica A).
• Alimentazione a bassa tensione fornita tramite cavo
di sospensione.
• Trasformatore incorporato nel rosone a soffitto.
FONTE LUMINOSA
• LED 24V 3000K.
• Su richiesta disponibile con luce extra calda
a 2700K o 4000K.
• Disponibile 110V su richiesta.
• Dimmerabile.
Concentric rings, in sequence or overlapping, wall-mounted or suspended, develop
archetypal visual codes inspired by the beauty and purity that the circle synthesizes in
its perfect symbolic form. An idea realized with important hand-crafted materials that
diffuse a warm and intriguing light.
Anelli concentrici, in sequenza o sovrapposti, a parete o sospesi, sviluppano codici
visivi archetipici ispirati alla bellezza e alla purezza che il cerchio sintetizza nella sua
perfetta forma simbolica. Un’idea realizzata con importanti materiali lavorati a mano
che diffondono una luce calda e intrigante.

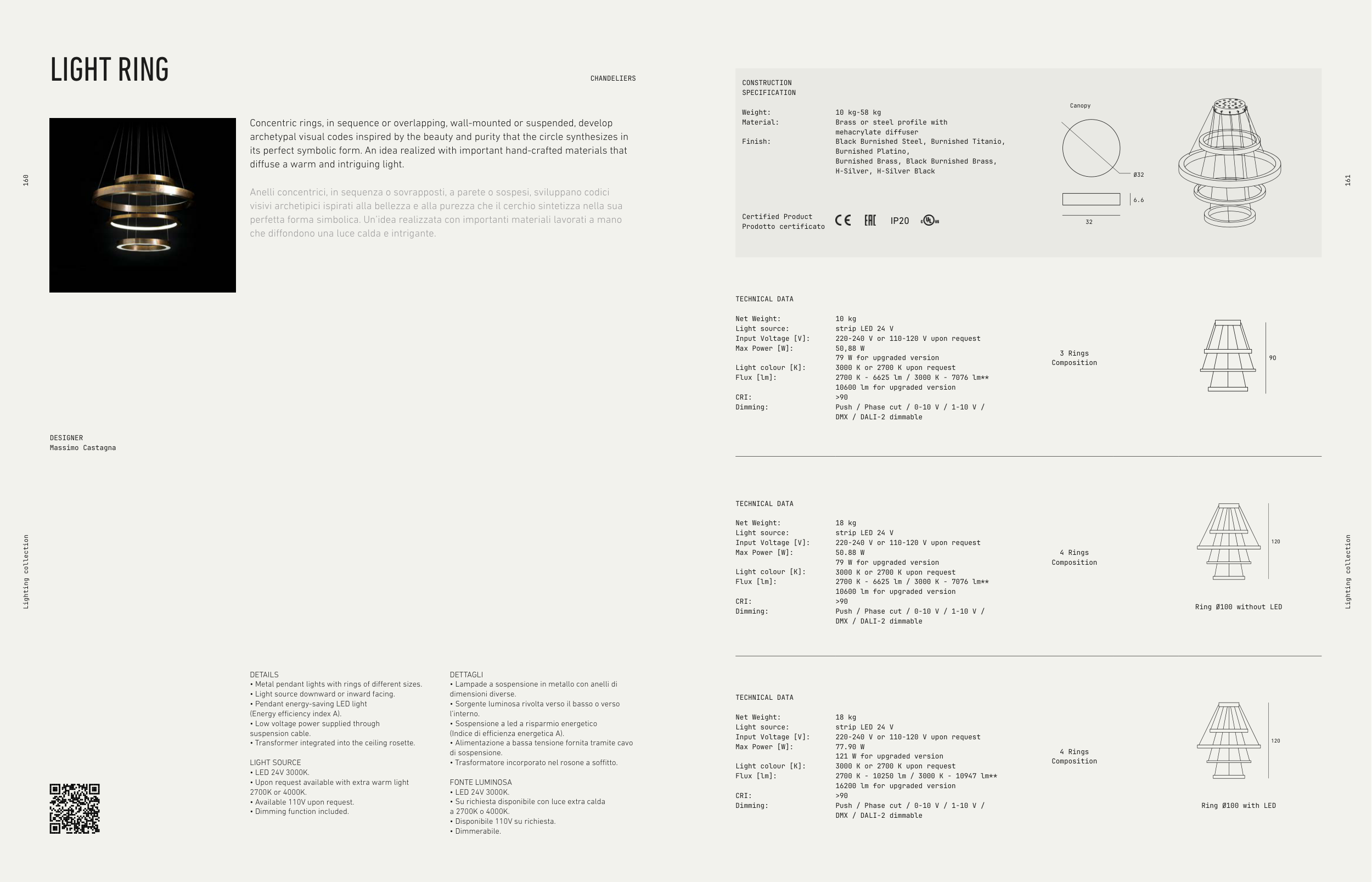

LIGHT RING
CHANDELIERS
CONSTRUCTION
SPECIFICATION
Weight:
Material:
Finish:
10 kg-58 kg
Brass or steel profile with
mehacrylate diffuser
Black Burnished Steel, Burnished Titanio,
Burnished Platino,
Burnished Brass, Black Burnished Brass,
H-Silver, H-Silver Black
32
6.6
Ø32
Canopy
Certified Product
Prodotto certificato
IP20
TECHNICAL DATA
Net Weight:
Light source:
Input Voltage [V]:
Max Power [W]:
Light colour [K]:
Flux [lm]:
CRI:
Dimming:
10 kg
strip LED 24 V
220-240 V or 110-120 V upon request
50,88 W
79 W for upgraded version
3000 K or 2700 K upon request
2700 K - 6625 lm / 3000 K - 7076 lm**
10600 lm for upgraded version
>90
Push / Phase cut / 0-10 V / 1-10 V /
DMX / DALI-2 dimmable
3 Rings
Composition
90
TECHNICAL DATA
Net Weight:
Light source:
Input Voltage [V]:
Max Power [W]:
Light colour [K]:
Flux [lm]:
CRI:
Dimming:
18 kg
strip LED 24 V
220-240 V or 110-120 V upon request
50.88 W
79 W for upgraded version
3000 K or 2700 K upon request
2700 K - 6625 lm / 3000 K - 7076 lm**
10600 lm for upgraded version
>90
Push / Phase cut / 0-10 V / 1-10 V /
DMX / DALI-2 dimmable
4 Rings
Composition
120
Ring Ø100 without LED
TECHNICAL DATA
Net Weight:
Light source:
Input Voltage [V]:
Max Power [W]:
Light colour [K]:
Flux [lm]:
CRI:
Dimming:
18 kg
strip LED 24 V
220-240 V or 110-120 V upon request
77.90 W
121 W for upgraded version
3000 K or 2700 K upon request
2700 K - 10250 lm / 3000 K - 10947 lm**
16200 lm for upgraded version
>90
Push / Phase cut / 0-10 V / 1-10 V /
DMX / DALI-2 dimmable
4 Rings
Composition
120
Ring Ø100 with LED
DESIGNER
Massimo Castagna
