Lighting collection
60
Lighting collection
61
DETAILS
• Metal pendant lights made of straight and curved
glass elements.
• The glass elements are joined and held by Sand Cast
Peltro rings. The rings are connected by a rounded
metal bar.
• Pendant energy-saving LED light
(Energy efficiency index A).
• Transformer integrated into the ceiling rosette.
• Alternative mounting system with a remote
transformer.
• Standard total height 180 cm.
(Height can be customised).
LIGHT SOURCE
• 360° Neon LED 24 V, warm white 3000 K, CRI >90
• Upon request available with extra warm light
2700 K.
• Upon request available 110 V.
• Dimming function included.
DETTAGLI
• Lampade a sospensione in metallo composte da
elementi in vetro diritti e curvi.
• Gli elementi in vetro sono uniti e trattenuti da anelli
in metallo fuso in sabbia finitura Peltro. Gli anelli sono
collegati da una barra arrotondata di metallo.
• Sospensione a led a risparmio energetico
(Indice di efficienza energetica A).
• Trasformatore integrato nel rosone a soffitto.
• Sistema di montaggio alternativo con
trasformatore remoto.
• Altezza totale standard 180 cm.
FONTE LUMINOSA
• Neon LED 360° 24V, bianco caldo 3000K.
• Su richiesta disponibile con luce extra
calda a 2700K.
• Disponibile 110V su richiesta.
• Dimmerabile.
An exercise of subtraction and a search for atypical statements of minimalist aesthetics
rethink spatial dynamics leading to Legacy. A thin, long glass tube with dimmable LED
light, supported by rings of an overlying burnished brass cylindrical structure, runs
with dynamic linearity through the space, tracing with a simple gesture iconic, floating
sculptural configurations.
Un esercizio di sottrazione e una ricerca di affermazioni atipiche dell’estetica
minimalista ripensano le dinamiche spaziali portando a Legacy. Un sottile e lungo tubo
di vetro con luce LED dimmerabile, sostenuto dagli anelli di una sovrastante struttura
cilindrica in ottone brunito, corre con dinamica linearità attraverso lo spazio, tracciando
con un semplice gesto iconiche, fluttuanti configurazioni scultoree.

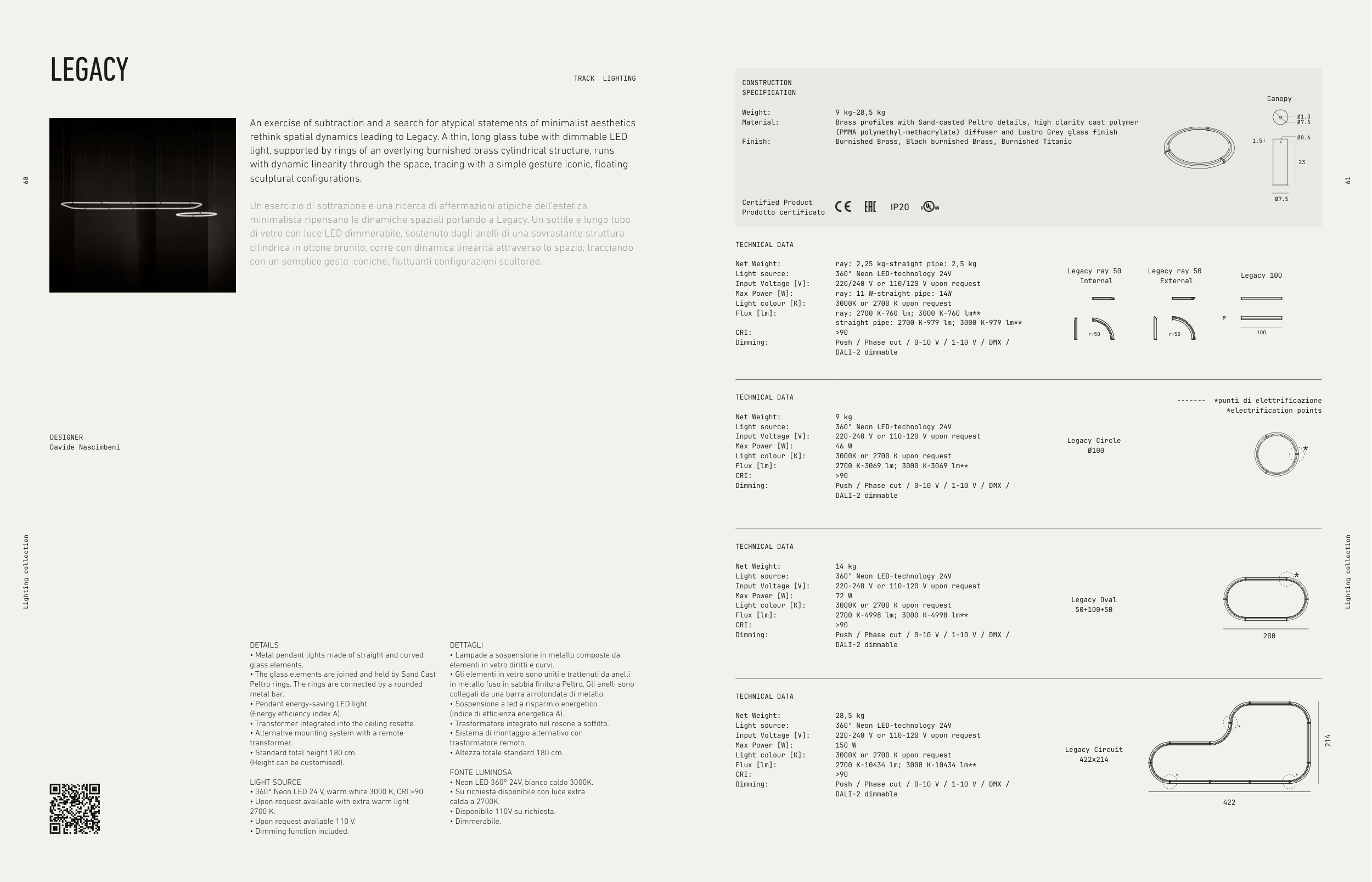

LEGACY
CONSTRUCTION
SPECIFICATION
Weight:
Material:
Finish:
9 kg-28,5 kg
Brass profiles with Sand-casted Peltro details, high clarity cast polymer
(PMMA polymethyl-methacrylate) diffuser and Lustro Grey glass finish
Burnished Brass, Black burnished Brass, Burnished Titanio
Ø7.5
23
Ø1.3
Ø0.6
Ø7.5
Canopy
1.5
Certified Product
Prodotto certificato
IP20
TECHNICAL DATA
Net Weight:
Light source:
Input Voltage [V]:
Max Power [W]:
Light colour [K]:
Flux [lm]:
CRI:
Dimming:
ray: 2,25 kg-straight pipe: 2,5 kg
360° Neon LED-technology 24V
220/240 V or 110/120 V upon request
ray: 11 W-straight pipe: 14W
3000K or 2700 K upon request
ray: 2700 K-760 lm; 3000 K-760 lm**
straight pipe: 2700 K-979 lm; 3000 K-979 lm**
>90
Push / Phase cut / 0-10 V / 1-10 V / DMX /
DALI-2 dimmable
r=50
r=50
100
Legacy ray 50
Internal
Legacy ray 50
External
Legacy 100
TECHNICAL DATA
Net Weight:
Light source:
Input Voltage [V]:
Max Power [W]:
Light colour [K]:
Flux [lm]:
CRI:
Dimming:
9 kg
360° Neon LED-technology 24V
220-240 V or 110-120 V upon request
46 W
3000K or 2700 K upon request
2700 K-3069 lm; 3000 K-3069 lm**
>90
Push / Phase cut / 0-10 V / 1-10 V / DMX /
DALI-2 dimmable
Legacy Circle
Ø100
*
TECHNICAL DATA
Net Weight:
Light source:
Input Voltage [V]:
Max Power [W]:
Light colour [K]:
Flux [lm]:
CRI:
Dimming:
14 kg
360° Neon LED-technology 24V
220-240 V or 110-120 V upon request
72 W
3000K or 2700 K upon request
2700 K-4998 lm; 3000 K-4998 lm**
>90
Push / Phase cut / 0-10 V / 1-10 V / DMX /
DALI-2 dimmable
Legacy Oval
50+100+50
200
*
TECHNICAL DATA
Net Weight:
Light source:
Input Voltage [V]:
Max Power [W]:
Light colour [K]:
Flux [lm]:
CRI:
Dimming:
28,5 kg
360° Neon LED-technology 24V
220-240 V or 110-120 V upon request
150 W
3000K or 2700 K upon request
2700 K-10434 lm; 3000 K-10434 lm**
>90
Push / Phase cut / 0-10 V / 1-10 V / DMX /
DALI-2 dimmable
Legacy Circuit
422x214
422
214
DESIGNER
Davide Nascimbeni
TRACK LIGHTING
------- *punti di elettrificazione
*electrification points
