Lighting collection
244
Lighting collection
245
DETAILS
• Spherical pendant lights made with grey fiberglass
are available in different sizes.
• Spheres are placed on the horizontal and on the
vertical tubes (1 on each tube).
• Energy-saving LED light (Energy efficiency index A).
• Transformer incorporated in the ceiling rosette.
• Alternative mounting system with a
remote transformer.
• Low voltage power supplied through
suspension cables.
• Power supply cable coated with metal cord.
• Standard total height 180 cm.
LIGHT SOURCE
• LED 24V 3000K.
• Upon request available with extra
warm light 2700K.
• Available 110V upon request.
• Dimming function included.
DETTAGLI
• Lampade a sospensione sferiche realizzate con fibra
di vetro grigia disponibile in diverse dimensioni.
• Le sfere sono posizionate sui tubi orizzontali e
verticali (1 su ciascun tubo).
• Sospensione a led a risparmio energetico (Indice di
efficienza energetica A).
• Trasformatore incorporato nel rosone a soffitto.
• Sistema di montaggio alternativo con
trasformatore remoto.
• Alimentazione a bassa tensione fornita tramite cavi
di sospensione.
• Cavo elettrico rivestito in metallo.
• Altezza totale standard 180 cm.
FONTE LUMINOSA
• Strip LED 24V 3000K.
• Su richiesta disponibile con luce extra
calda a 2700K.
• Disponibile 110V su richiesta.
• Dimmerabile.

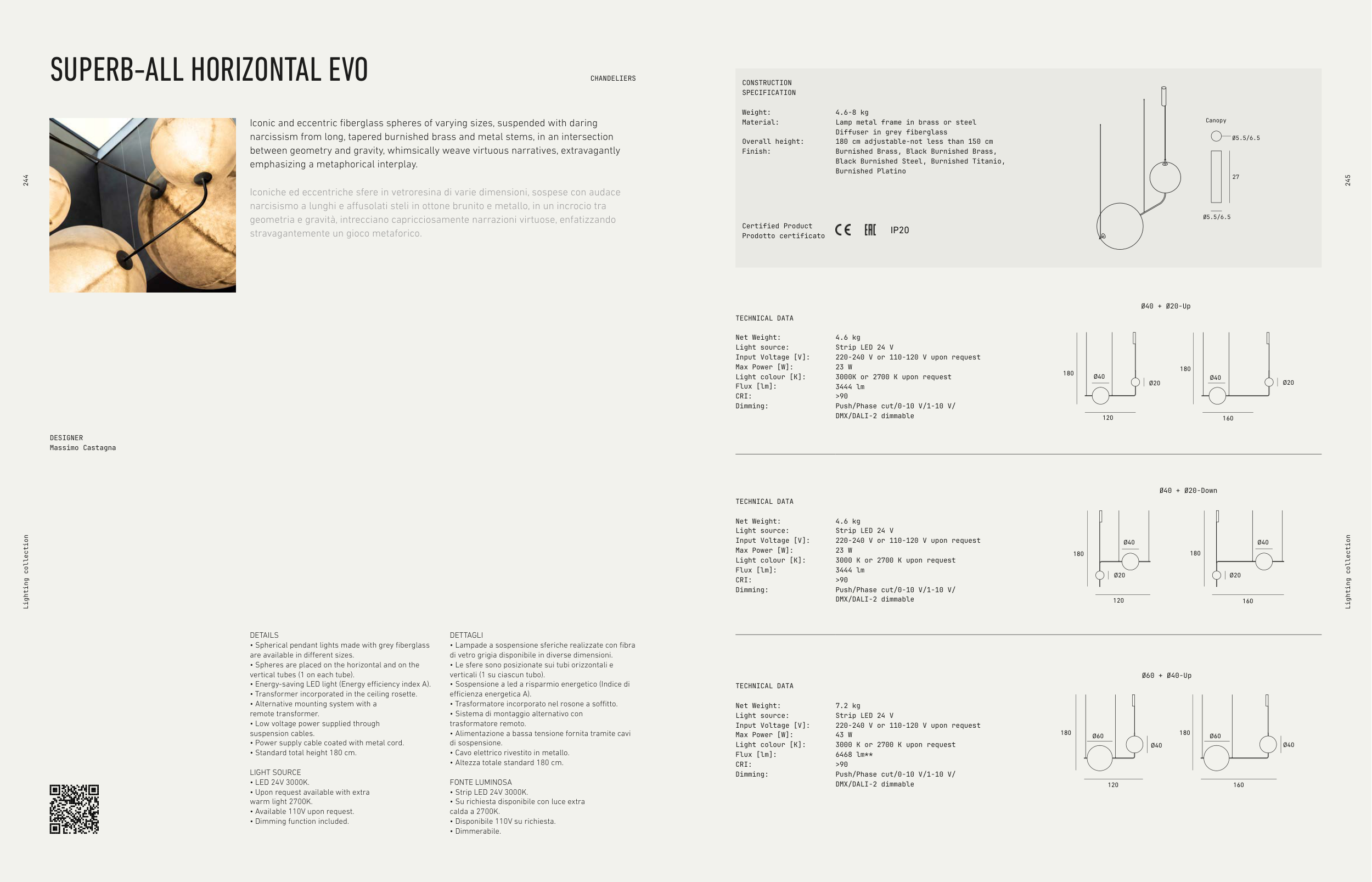

SUPERB-ALL HORIZONTAL EVO
CHANDELIERS
Iconic and eccentric fiberglass spheres of varying sizes, suspended with daring
narcissism from long, tapered burnished brass and metal stems, in an intersection
between geometry and gravity, whimsically weave virtuous narratives, extravagantly
emphasizing a metaphorical interplay.
Iconiche ed eccentriche sfere in vetroresina di varie dimensioni, sospese con audace
narcisismo a lunghi e affusolati steli in ottone brunito e metallo, in un incrocio tra
geometria e gravità, intrecciano capricciosamente narrazioni virtuose, enfatizzando
stravagantemente un gioco metaforico.
CONSTRUCTION
SPECIFICATION
Weight:
Material:
Overall height:
Finish:
4.6-8 kg
Lamp metal frame in brass or steel
Diffuser in grey fiberglass
180 cm adjustable-not less than 150 cm
Burnished Brass, Black Burnished Brass,
Black Burnished Steel, Burnished Titanio,
Burnished Platino
Ø5.5/6.5
27
Ø5.5/6.5
Canopy
Certified Product
Prodotto certificato
IP20
TECHNICAL DATA
Net Weight:
Light source:
Input Voltage [V]:
Max Power [W]:
Light colour [K]:
Flux [lm]:
CRI:
Dimming:
4.6 kg
Strip LED 24 V
220-240 V or 110-120 V upon request
23 W
3000K or 2700 K upon request
3444 lm
>90
Push/Phase cut/0-10 V/1-10 V/
DMX/DALI-2 dimmable
Ø40 + Ø20-Up
180
120
180
Ø40
Ø20
160
Ø40
Ø20
TECHNICAL DATA
Net Weight:
Light source:
Input Voltage [V]:
Max Power [W]:
Light colour [K]:
Flux [lm]:
CRI:
Dimming:
4.6 kg
Strip LED 24 V
220-240 V or 110-120 V upon request
23 W
3000 K or 2700 K upon request
3444 lm
>90
Push/Phase cut/0-10 V/1-10 V/
DMX/DALI-2 dimmable
Ø40 + Ø20-Down
180
180
160
Ø40
120
Ø20
Ø40
Ø20
TECHNICAL DATA
Net Weight:
Light source:
Input Voltage [V]:
Max Power [W]:
Light colour [K]:
Flux [lm]:
CRI:
Dimming:
7.2 kg
Strip LED 24 V
220-240 V or 110-120 V upon request
43 W
3000 K or 2700 K upon request
6468 lm**
>90
Push/Phase cut/0-10 V/1-10 V/
DMX/DALI-2 dimmable
180
160
Ø60
Ø40
180
120
Ø60
Ø40
Ø60 + Ø40-Up
DESIGNER
Massimo Castagna
