Lighting collection
238
Lighting collection
239
Iconic and eccentric fiberglass spheres of varying sizes, suspended with daring
narcissism from long, tapered burnished brass and metal stems, in an intersection
between geometry and gravity, whimsically weave virtuous narratives, extravagantly
emphasizing a metaphorical interplay.
Iconiche ed eccentriche sfere in vetroresina di varie dimensioni, sospese con audace
narcisismo a lunghi e affusolati steli in ottone brunito e metallo, in un incrocio tra
geometria e gravità, intrecciano capricciosamente narrazioni virtuose, enfatizzando
stravagantemente un gioco metaforico.
DETAILS
• Spherical pendant lights made with grey fiberglass
are available in different sizes.
• Spheres are placed in line in the horizontal
suspension tube.
• Energy-saving LED light (Energy efficiency index A).
• Transformer incorporated in the ceiling rosette.
• Alternative mounting system with
a remote transformer.
• Low voltage power supplied through
suspension cables.
• Power supply cable coated with metal cord.
• Standard total height 180 cm.
LIGHT SOURCE
• LED 24V 3000K.
• Upon request available with extra
warm light 2700K.
• Available 110V upon request.
• Dimming function included.
DETTAGLI
• Lampade a sospensione sferiche realizzate
con fibra di vetro grigia disponibile in diverse
dimensioni.
• Le sfere sono posizionate in linea nel tubo di
sospensione orizzontale.
• Sospensione a led a risparmio energetico
(Indice di efficienza energetica A).
• Trasformatore incorporato nel rosone a soffitto.
• Sistema di montaggio alternativo
con trasformatore remoto.
• Alimentazione a bassa tensione fornita tramite
cavi di sospensione.
• Cavo elettrico rivestito in metallo.
• Altezza totale standard 180 cm.
FONTE LUMINOSA
• Strip LED 24V 3000K.
• Su richiesta disponibile con luce extra
calda a 2700K.
• Disponibile 110V su richiesta.
• Dimmerabile.

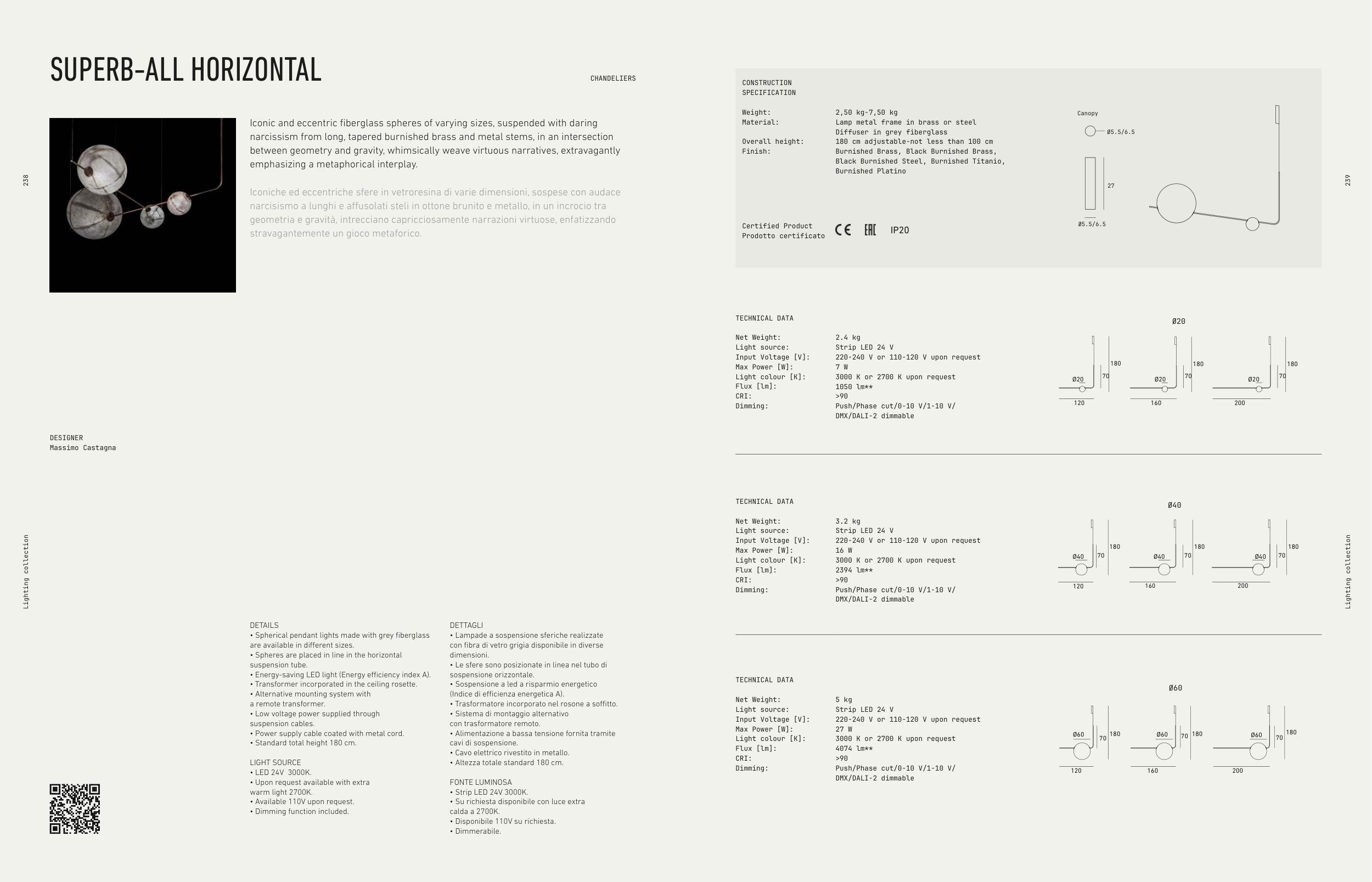

SUPERB-ALL HORIZONTAL
CHANDELIERS
CONSTRUCTION
SPECIFICATION
Weight:
Material:
Overall height:
Finish:
2,50 kg-7,50 kg
Lamp metal frame in brass or steel
Diffuser in grey fiberglass
180 cm adjustable-not less than 100 cm
Burnished Brass, Black Burnished Brass,
Black Burnished Steel, Burnished Titanio,
Burnished Platino
Ø5.5/6.5
27
Ø5.5/6.5
Canopy
Certified Product
Prodotto certificato
IP20
TECHNICAL DATA
Net Weight:
Light source:
Input Voltage [V]:
Max Power [W]:
Light colour [K]:
Flux [lm]:
CRI:
Dimming:
2.4 kg
Strip LED 24 V
220-240 V or 110-120 V upon request
7 W
3000 K or 2700 K upon request
1050 lm**
>90
Push/Phase cut/0-10 V/1-10 V/
DMX/DALI-2 dimmable
Ø20
70
180
120
Ø20
70
70
Ø20
200
180
160
180
Ø20
TECHNICAL DATA
Net Weight:
Light source:
Input Voltage [V]:
Max Power [W]:
Light colour [K]:
Flux [lm]:
CRI:
Dimming:
3.2 kg
Strip LED 24 V
220-240 V or 110-120 V upon request
16 W
3000 K or 2700 K upon request
2394 lm**
>90
Push/Phase cut/0-10 V/1-10 V/
DMX/DALI-2 dimmable
Ø40
70
120
180
200
70
Ø40
160
Ø40
180
70
Ø40
180
TECHNICAL DATA
Net Weight:
Light source:
Input Voltage [V]:
Max Power [W]:
Light colour [K]:
Flux [lm]:
CRI:
Dimming:
5 kg
Strip LED 24 V
220-240 V or 110-120 V upon request
27 W
3000 K or 2700 K upon request
4074 lm**
>90
Push/Phase cut/0-10 V/1-10 V/
DMX/DALI-2 dimmable
Ø60
70 180
Ø60
120
180
70
Ø60
160
180
70
Ø60
200
DESIGNER
Massimo Castagna
