Lighting collection
216
Lighting collection
217
DETAILS
• Light source incorporated in a borosilicate
cylindrical glass.
• Energy-saving LED light (Energy efficiency index A).
• Transformer incorporated in the ceiling rosette.
• Alternative mounting system with
a remote transformer.
• Low voltage power supplied through
suspension cables.
• Standard total height 180 cm.
LIGHT SOURCE
• LED 24V 3000K.
• Upon request available with
extra warm light 2700K.
• Available 110V upon request.
• Dimming function included.
DETTAGLI
• Sorgente luminosa incorporata in vetro
cilindrico borosilicato.
• Sospensione a led a risparmio energetico (Indice di
efficienza energetica A).
• Trasformatore incorporato nel rosone
a soffitto.
• Sistema di montaggio alternativo
con trasformatore remoto.
• Alimentazione a bassa tensione fornita tramite cavi
di sospensione.
• Altezza totale standard 180 cm.
FONTE LUMINOSA
• Strip LED 24V 3000K.
• Su richiesta disponibile con luce extra
calda a 2700K.
• Disponibile 110V su richiesta.
• Dimmerabile.
The suspension lamp, Spyder X, an ensemble of slender, fluted, borosilicate glass
cylinders, exquisitely finished at each end with rounded burnished brass protuberances,
horizontally and vertically arranged and connected in balanced symmetry, interprets a
performance of lightness and elegance.
La lampada a sospensione Spyder X, un insieme di esili cilindri in vetro borosilicato
scanalato, finemente rifiniti alle estremità da protuberanze arrotondate in ottone
brunito, disposti orizzontalmente e verticalmente e collegati in equilibrata simmetria,
interpreta una performance di leggerezza ed eleganza.

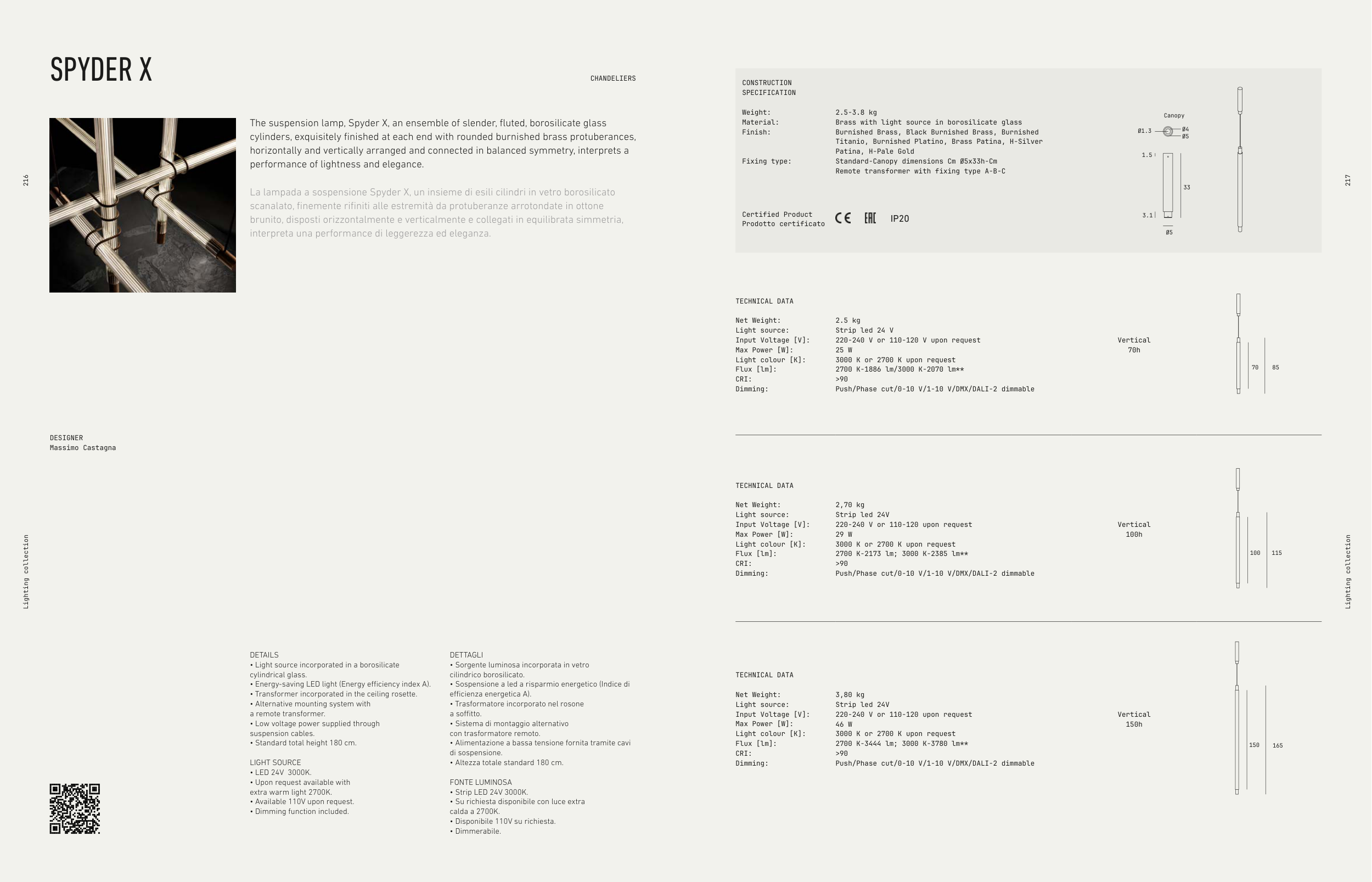

SPYDER X
CHANDELIERS
CONSTRUCTION
SPECIFICATION
Weight:
Material:
Finish:
Fixing type:
2.5-3.8 kg
Brass with light source in borosilicate glass
Burnished Brass, Black Burnished Brass, Burnished
Titanio, Burnished Platino, Brass Patina, H-Silver
Patina, H-Pale Gold
Standard-Canopy dimensions Cm Ø5x33h-Cm
Remote transformer with fixing type A-B-C
33
Ø5
Ø4
Ø1.3
Ø5
Canopy
1.5
3.1
Certified Product
Prodotto certificato
IP20
TECHNICAL DATA
Net Weight:
Light source:
Input Voltage [V]:
Max Power [W]:
Light colour [K]:
Flux [lm]:
CRI:
Dimming:
2.5 kg
Strip led 24 V
220-240 V or 110-120 V upon request
25 W
3000 K or 2700 K upon request
2700 K-1886 lm/3000 K-2070 lm**
>90
Push/Phase cut/0-10 V/1-10 V/DMX/DALI-2 dimmable
Vertical
70h
70
85
TECHNICAL DATA
Net Weight:
Light source:
Input Voltage [V]:
Max Power [W]:
Light colour [K]:
Flux [lm]:
CRI:
Dimming:
2,70 kg
Strip led 24V
220-240 V or 110-120 upon request
29 W
3000 K or 2700 K upon request
2700 K-2173 lm; 3000 K-2385 lm**
>90
Push/Phase cut/0-10 V/1-10 V/DMX/DALI-2 dimmable
Vertical
100h
100
115
TECHNICAL DATA
Net Weight:
Light source:
Input Voltage [V]:
Max Power [W]:
Light colour [K]:
Flux [lm]:
CRI:
Dimming:
3,80 kg
Strip led 24V
220-240 V or 110-120 upon request
46 W
3000 K or 2700 K upon request
2700 K-3444 lm; 3000 K-3780 lm**
>90
Push/Phase cut/0-10 V/1-10 V/DMX/DALI-2 dimmable
Vertical
150h
150
165
DESIGNER
Massimo Castagna
