Lighting collection
198
Lighting collection
199
DETAILS
• Low consumption suspension LED light with brass
stems and central Y-shaped body in Sand Cast Bronze
(or Brass).
• Lustro Grey or frosted glass available.
• Pendant energy-saving LED light
(Energy efficiency index A).
• Transformer integrated into
the ceiling rosette.
LIGHT SOURCE
• Henge LED bulb 24V 3000K.
• Upon request available with extra
warm light 2700K.
• Available 110V upon request.
• Dimming function included.
DETTAGLI
• Lampada LED a sospensione a basso consumo con
steli in ottone e corpo centrale a Y in fusione di Bronzo
(o Ottone).
• Disponibile vetro Lustro Grey o satinato.
• Sospensione a led a risparmio energetico (Indice di
efficienza energetica A).
• Trasformatore integrato nel rosone a soffitto.
FONTE LUMINOSA
• Lampadina LED Henge
• Su richiesta disponibile con luce extra
calda a 2700K.
• Disponibile 110V su richiesta.
• Dimmerabile.
Like the seeds of the Maple tree, Maple, pendant light, expands its stems in black
burnished brass, germinating with unusual and charismatic organic buds in
blown glass.
Come i semi dell’albero di acero, Maple, lampada a sospensione, espande i suoi
steli in ottone brunito nero, germinando con insoliti e carismatici boccioli organici
in vetro soffiato.

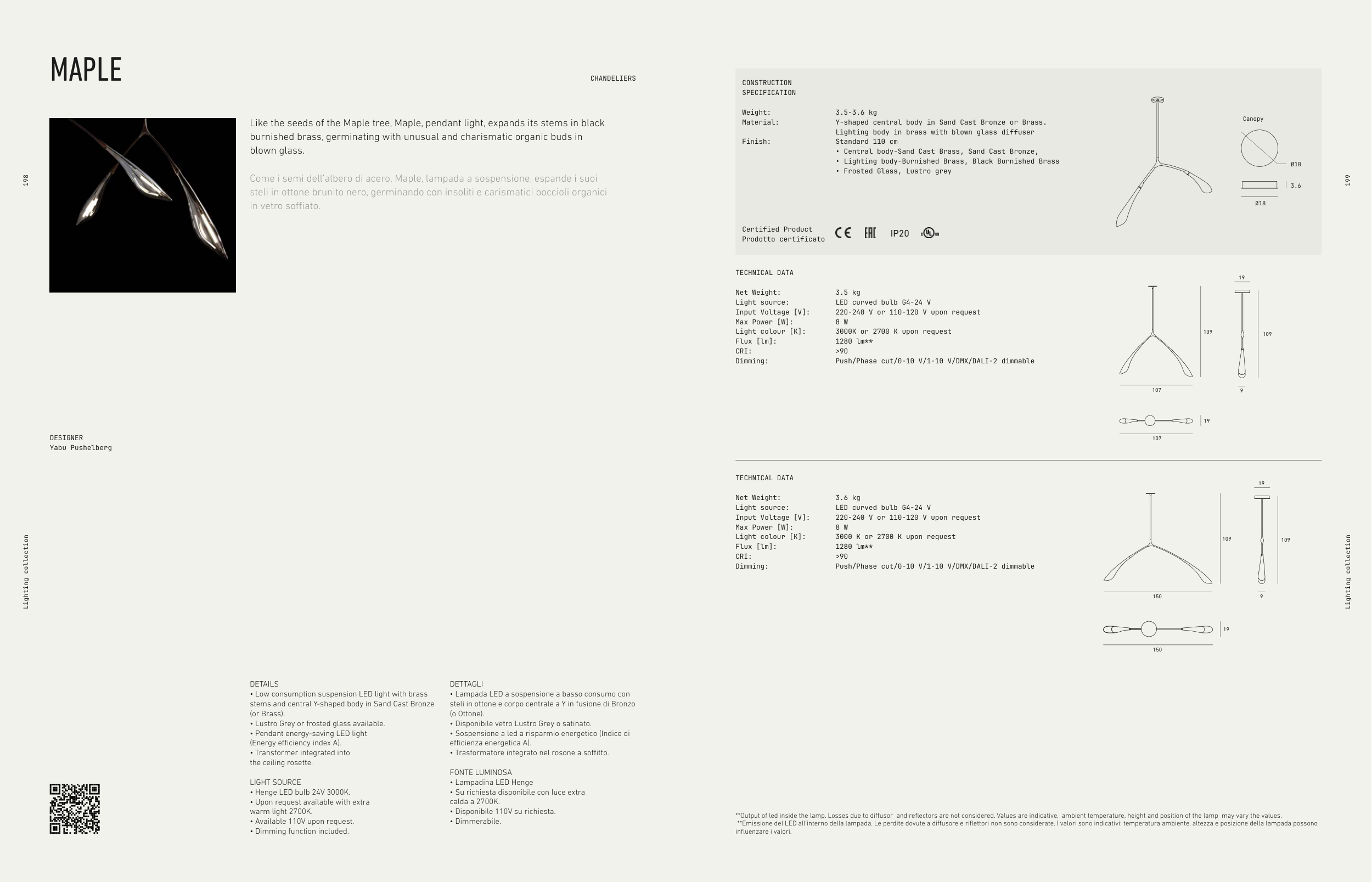

MAPLE
CHANDELIERS
CONSTRUCTION
SPECIFICATION
Weight:
Material:
Finish:
3.5-3.6 kg
Y-shaped central body in Sand Cast Bronze or Brass.
Lighting body in brass with blown glass diffuser
Standard 110 cm
• Central body-Sand Cast Brass, Sand Cast Bronze,
• Lighting body-Burnished Brass, Black Burnished Brass
• Frosted Glass, Lustro grey
Certified Product
Prodotto certificato
IP20
TECHNICAL DATA
Net Weight:
Light source:
Input Voltage [V]:
Max Power [W]:
Light colour [K]:
Flux [lm]:
CRI:
Dimming:
3.5 kg
LED curved bulb G4-24 V
220-240 V or 110-120 V upon request
8 W
3000K or 2700 K upon request
1280 lm**
>90
Push/Phase cut/0-10 V/1-10 V/DMX/DALI-2 dimmable
109
19
9
107
107
109
19
TECHNICAL DATA
Net Weight:
Light source:
Input Voltage [V]:
Max Power [W]:
Light colour [K]:
Flux [lm]:
CRI:
Dimming:
3.6 kg
LED curved bulb G4-24 V
220-240 V or 110-120 V upon request
8 W
3000 K or 2700 K upon request
1280 lm**
>90
Push/Phase cut/0-10 V/1-10 V/DMX/DALI-2 dimmable
19
9
150
150
109
109
19
**Output of led inside the lamp. Losses due to diffusor and reflectors are not considered. Values are indicative, ambient temperature, height and position of the lamp may vary the values.
**Emissione del LED all’interno della lampada. Le perdite dovute a diffusore e riflettori non sono considerate. I valori sono indicativi: temperatura ambiente, altezza e posizione della lampada possono
influenzare i valori.
DESIGNER
Yabu Pushelberg
Ø18
Ø18
3.6
Canopy
