TECH. DRAWING
w
LUMEN
1160
CCT
BEAM
4000K
10
DIA
Ø165
www.hb-lux.com
Color
O RAL 9016 O RAL 9006 O RAL 9005
Beam Angle O 15°
O 45°
CCT
O 4000K
O 30°
O 2700K
O 3000K
O 5000K
O 60°
O 6500K

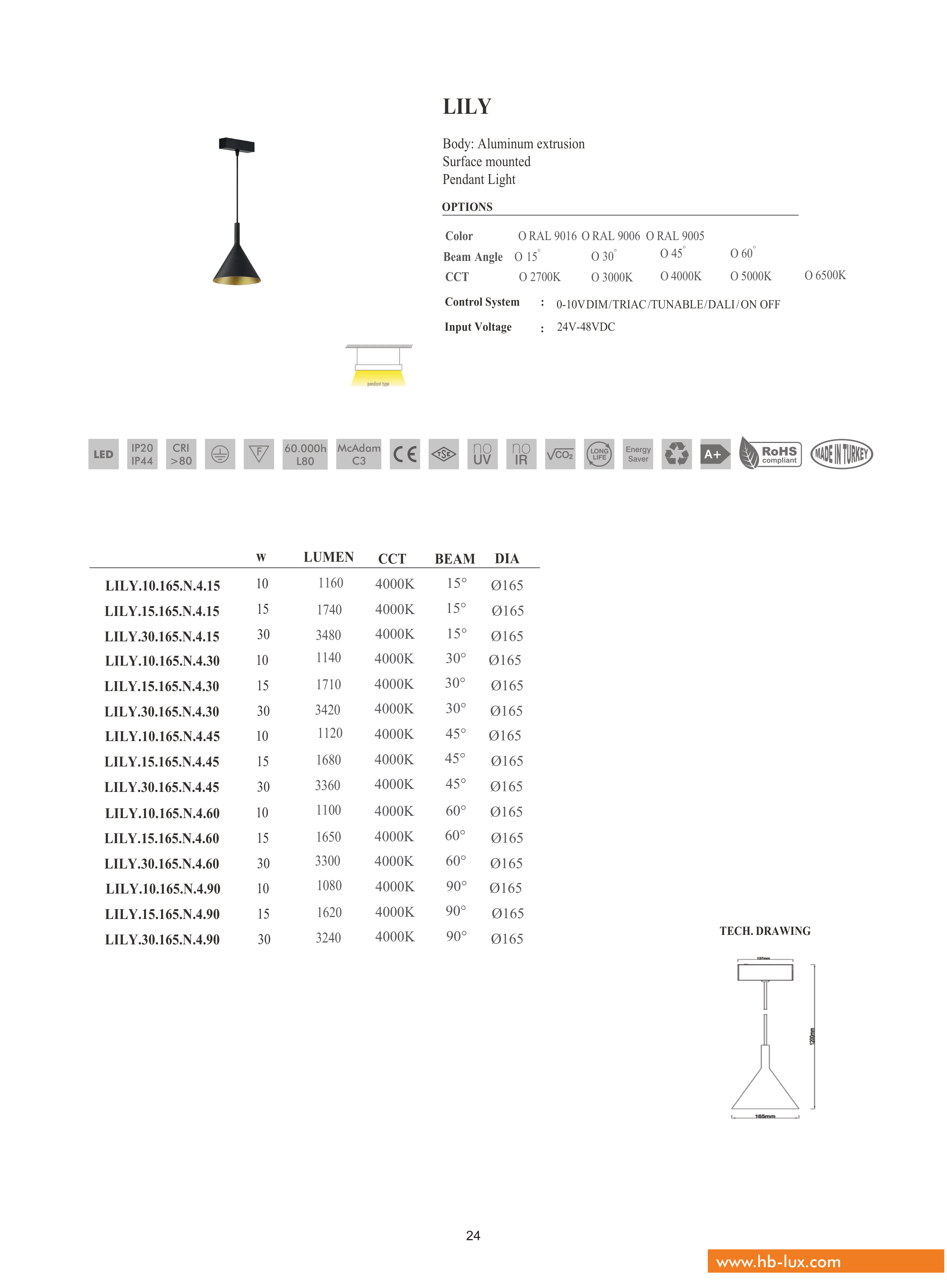

LILY
Body: Aluminum extrusion
Surface mounted
Pendant Light
OPTIONS
Control System
:
0-10V DIM / TRIAC /TUNABLE / DALI / ON OFF
Input Voltage :
24V-48VDC
LED
IP20
IP44
CRI
>80
60.000h
L80
McAdam
C3
Energy
Saver
A+
15°
1740
4000K
15
Ø165
15°
3480
4000K
30
Ø165
LILY.10.165.N.4.15
LILY.15.165.N.4.15
LILY.30.165.N.4.15
15°
1140
4000K
10
Ø165
30°
1710
4000K
15
Ø165
30°
3420
4000K
30
Ø165
LILY.10.165.N.4.30
LILY.15.165.N.4.30
LILY.30.165.N.4.30
30°
1120
4000K
10
Ø165
45°
1680
4000K
15
Ø165
45°
3360
4000K
30
Ø165
LILY.10.165.N.4.45
LILY.15.165.N.4.45
LILY.30.165.N.4.45
45°
1100
4000K
10
Ø165
60°
1650
4000K
15
Ø165
60°
3300
4000K
30
Ø165
LILY.10.165.N.4.60
LILY.15.165.N.4.60
LILY.30.165.N.4.60
60°
1080
4000K
10
Ø165
90°
1620
4000K
15
Ø165
90°
3240
4000K
30
Ø165
LILY.10.165.N.4.90
LILY.15.165.N.4.90
LILY.30.165.N.4.90
90°
24
