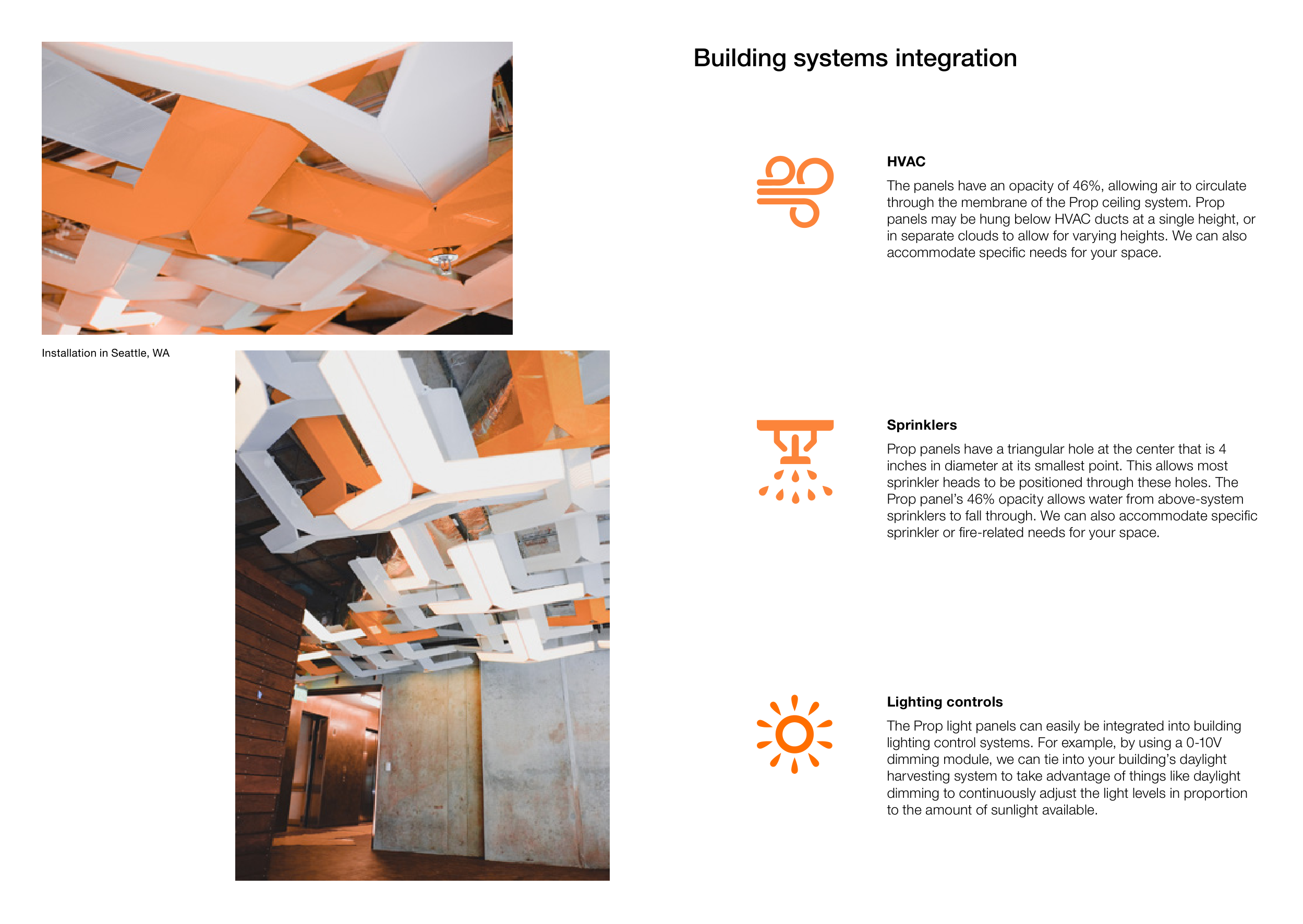

Installation in Seattle, WA
HVAC
The panels have an opacity of 46%, allowing air to circulate
through the membrane of the Prop ceiling system. Prop
panels may be hung below HVAC ducts at a single height, or
in separate clouds to allow for varying heights. We can also
accommodate specific needs for your space.
Building systems integration
Sprinklers
Prop panels have a triangular hole at the center that is 4
inches in diameter at its smallest point. This allows most
sprinkler heads to be positioned through these holes. The
Prop panel’s 46% opacity allows water from above-system
sprinklers to fall through. We can also accommodate specific
sprinkler or fire-related needs for your space.
Lighting controls
The Prop light panels can easily be integrated into building
lighting control systems. For example, by using a 0-10V
dimming module, we can tie into your building’s daylight
harvesting system to take advantage of things like daylight
dimming to continuously adjust the light levels in proportion
to the amount of sunlight available.
