PRINCESS 1
design by Francesco Brivio p.46
LL0529.34XXXXXEX -
LL0529.CAXX300EN -
LL0529.CAXX400EN -
PRINCESS 2
design by Francesco Brivio p.46
LL0530.34XXXXXEX -
LL0530.LRXX300EN -
LL0530.LRXX400EN -
LL0530.BRXX300EN -
LL0530.BRXX400EN -
2xE14 - Max 40W - 220-240V - 50/60Hz - 89° x 104° Not dim
2x5.8W 3000K 734lm - 220-240V - 50/60Hz - 120° Not dim
2x5.8W 4000K 778lm - 220-240V - 50/60Hz - 120° Not dim
2x E14 - Max 40W - 220-240V - 50/60Hz -120° Not dim
2x 8.7W 3000K 2x1101lm - 220-240V - 50/60Hz - 120° Not dim
2x 8.7W 4000K 2x1167lm - 220-240V - 50/60Hz - 120° Not dim
2x 12.9W 3000K 2x1479lm - 220-240V - 50/60Hz - 120° Not dim
2x 12.9W 4000K 2x1575lm - 220-240V - 50/60Hz - 120° Not dim
CUFFLINK
design by Serge & Robert Cornelissen p.48
LL2530.CAXO300EN -2x 3W 3000K 275lm - 220-240V - 50/60Hz -102° Not dim
LL2530.CAXO400EN -2x 3W 4000K 288lm - 220-240V - 50/60Hz -102° Not dim
CAGE 1
design by Serge & Robert Cornelissen p.50
LL2520.AHXO300EN -3.9W 3000K 570lm - 220-240V - 50/60Hz - 53° x 55° Not dim
LL2520.AHXO400EN -3.9W 4000K 600lm - 220-240V - 50/60Hz - 53° x 55° Not dim
CAGE 2
design by Serge & Robert Cornelissen p.50
LL2521.BRXO300EN - 8.2W 3000K 1012lm - 220-240V - 50/60Hz - 53° x 55° Dim on request
LL2521.BRXO400EN - 8.2 W 4000K 1151lm - 220-240V - 50/60Hz - 53° x 55° Dim on request
CAGE 3
design by Serge & Robert Cornelissen p.50
LL2522.BRXO300EN - 8.2W 3000K 1012lm - 220-240V - 50/60Hz - 53° x 55° Dim on request
LL2522.BRXO400EN - 8.2 W 4000K 1151lm - 220-240V - 50/60Hz - 53° x 55° Dim on request
ZERO 0 SR
design by Francesco Brivio p.52
LL2020.FAFO300ET - 10W 3000K 1425lm - 220-240V - 50/60Hz - 84° IGBT-TRIAC
LL2020.FAFO400ET - 10W 4000K 1470lm - 220-240V - 50/60Hz - 84° IGBT-TRIAC
ZERO 1 SR
design by Francesco Brivio p.52
LL2431.40XTXXXEX -
LL2431.BUAT270EN -
LL2431.BUAT300EN -
LL2431.BUAT400EN -
LL2431.BUAT270EC -
LL2431.BUAT300EC -
LL2431.BUAT400EC -
LL2431.CGAT270EA -
LL2431.CGAT300EA -
LL2431.CGAT400EA -
LL2431.CGAT270EP -
LL2431.CGAT300EP -
LL2431.CGAT400EP -
LL2431.CGAT270EC-
LL2431.CGAT300EC -
LL2431.CGAT400EC -
LL2431.CGAT270ET -
R7S Max 15W - 220-240V - 50/60Hz - 85°x102°
16.5W 2700K 2262lm - 220-240V - 50/60Hz - 107°x104° Not dim
16.5W 3000K 2410lm - 220-240V - 50/60Hz - 107°x104° Not dim
16.5W 4000K 2592lm - 220-240V - 50/60Hz - 107°x104° Not dim
16.5W 2700K 2262lm - 500mA - 107°x104° Dim based on driver
16.5W 3000K 2410lm - 500mA - 107°x104° Dim based on driver
16.5W 4000K 2592lm - 500mA - 107°x104° Dim based on driver
23.7W 2700K 3102lm - 220-240V - 50/60Hz - 107°x104° Dim 1-10V
23.7W 3000K 3306lm - 220-240V - 50/60Hz - 107°x104° Dim 1-10V
23.7W 4000K 3555lm - 220-240V - 50/60Hz - 107°x104° Dim 1-10V
23.7W 2700K 3102lm - 220-240V - 50/60Hz - 107°x104° Push
23.7W 3000K 3306lm - 220-240V - 50/60Hz - 107°x104° Push
23.7W 4000K 3555lm - 220-240V - 50/60Hz - 107°x104° Push
23.7W 2700K 3102lm -700 mA - 107°x104° Dim based on driver
23.7W 3000K 3306lm - 700mA - 107°x104° Dim based on driver
23.7W 4000K 3555lm - 700mA - 107°x104° Dim based on driver
23.7W 2700K 3102lm - 220-240V - 50/60Hz - 107°x104° IGBT-TRIAC
104

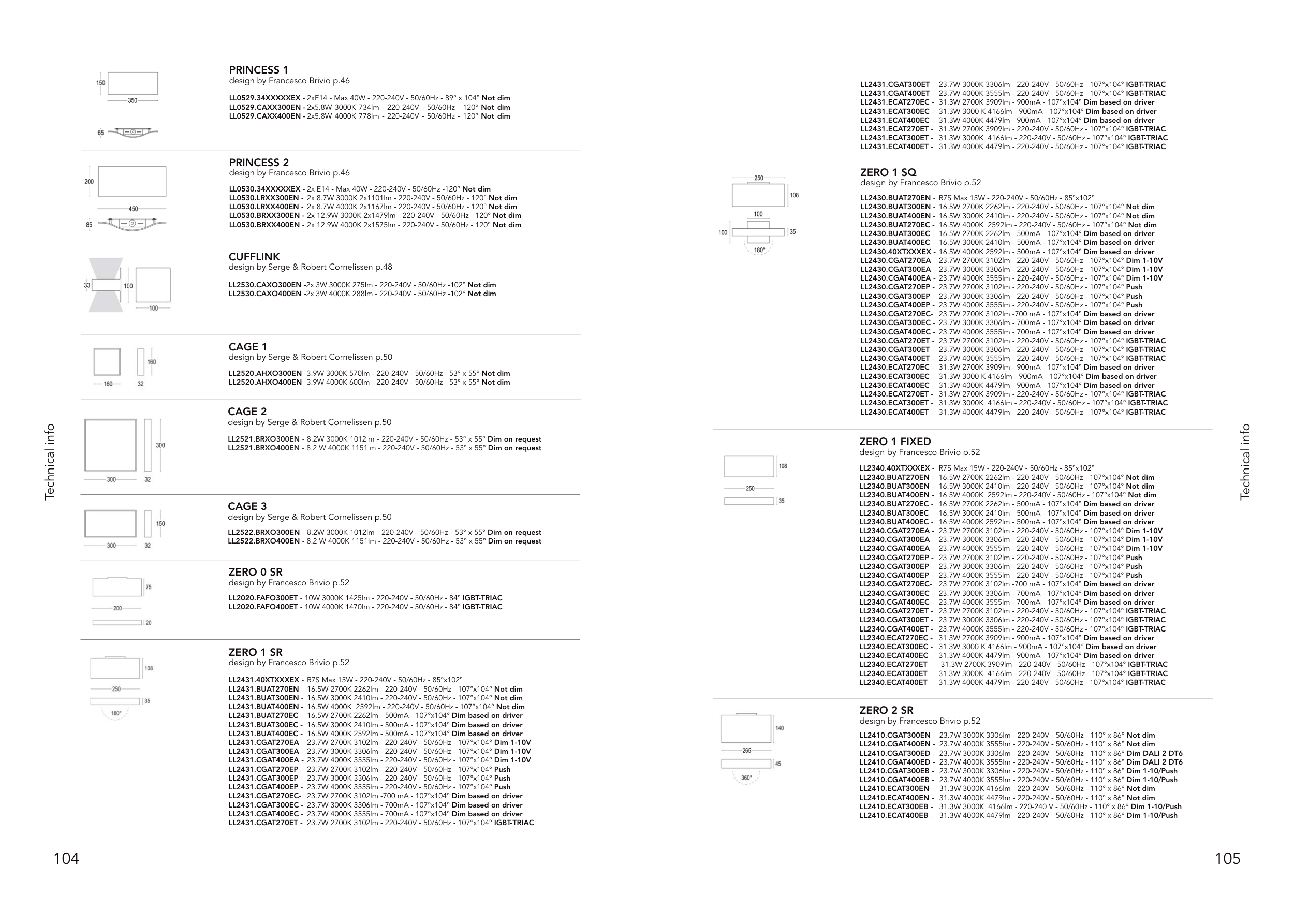

Technical info
ZERO 1 SQ
design by Francesco Brivio p.52
LL2430.BUAT270EN -
LL2430.BUAT300EN -
LL2430.BUAT400EN -
LL2430.BUAT270EC -
LL2430.BUAT300EC -
LL2430.BUAT400EC -
LL2430.40XTXXXEX -
LL2430.CGAT270EA -
LL2430.CGAT300EA -
LL2430.CGAT400EA -
LL2430.CGAT270EP -
LL2430.CGAT300EP -
LL2430.CGAT400EP -
LL2430.CGAT270EC-
LL2430.CGAT300EC -
LL2430.CGAT400EC -
LL2430.CGAT270ET -
LL2430.CGAT300ET -
LL2430.CGAT400ET -
LL2430.ECAT270EC -
LL2430.ECAT300EC -
LL2430.ECAT400EC -
LL2430.ECAT270ET -
LL2430.ECAT300ET -
LL2430.ECAT400ET -
R7S Max 15W - 220-240V - 50/60Hz - 85°x102°
16.5W 2700K 2262lm - 220-240V - 50/60Hz - 107°x104° Not dim
16.5W 3000K 2410lm - 220-240V - 50/60Hz - 107°x104° Not dim
16.5W 4000K 2592lm - 220-240V - 50/60Hz - 107°x104° Not dim
16.5W 2700K 2262lm - 500mA - 107°x104° Dim based on driver
16.5W 3000K 2410lm - 500mA - 107°x104° Dim based on driver
16.5W 4000K 2592lm - 500mA - 107°x104° Dim based on driver
23.7W 2700K 3102lm - 220-240V - 50/60Hz - 107°x104° Dim 1-10V
23.7W 3000K 3306lm - 220-240V - 50/60Hz - 107°x104° Dim 1-10V
23.7W 4000K 3555lm - 220-240V - 50/60Hz - 107°x104° Dim 1-10V
23.7W 2700K 3102lm - 220-240V - 50/60Hz - 107°x104° Push
23.7W 3000K 3306lm - 220-240V - 50/60Hz - 107°x104° Push
23.7W 4000K 3555lm - 220-240V - 50/60Hz - 107°x104° Push
23.7W 2700K 3102lm -700 mA - 107°x104° Dim based on driver
23.7W 3000K 3306lm - 700mA - 107°x104° Dim based on driver
23.7W 4000K 3555lm - 700mA - 107°x104° Dim based on driver
23.7W 2700K 3102lm - 220-240V - 50/60Hz - 107°x104° IGBT-TRIAC
23.7W 3000K 3306lm - 220-240V - 50/60Hz - 107°x104° IGBT-TRIAC
23.7W 4000K 3555lm - 220-240V - 50/60Hz - 107°x104° IGBT-TRIAC
31.3W 2700K 3909lm - 900mA - 107°x104° Dim based on driver
31.3W 3000 K 4166lm - 900mA - 107°x104° Dim based on driver
31.3W 4000K 4479lm - 900mA - 107°x104° Dim based on driver
31.3W 2700K 3909lm - 220-240V - 50/60Hz - 107°x104° IGBT-TRIAC
31.3W 3000K 4166lm - 220-240V - 50/60Hz - 107°x104° IGBT-TRIAC
31.3W 4000K 4479lm - 220-240V - 50/60Hz - 107°x104° IGBT-TRIAC
LL2431.CGAT300ET -
LL2431.CGAT400ET -
LL2431.ECAT270EC -
LL2431.ECAT300EC -
LL2431.ECAT400EC -
LL2431.ECAT270ET -
LL2431.ECAT300ET -
LL2431.ECAT400ET -
23.7W 3000K 3306lm - 220-240V - 50/60Hz - 107°x104° IGBT-TRIAC
23.7W 4000K 3555lm - 220-240V - 50/60Hz - 107°x104° IGBT-TRIAC
31.3W 2700K 3909lm - 900mA - 107°x104° Dim based on driver
31.3W 3000 K 4166lm - 900mA - 107°x104° Dim based on driver
31.3W 4000K 4479lm - 900mA - 107°x104° Dim based on driver
31.3W 2700K 3909lm - 220-240V - 50/60Hz - 107°x104° IGBT-TRIAC
31.3W 3000K 4166lm - 220-240V - 50/60Hz - 107°x104° IGBT-TRIAC
31.3W 4000K 4479lm - 220-240V - 50/60Hz - 107°x104° IGBT-TRIAC
ZERO 1 FIXED
design by Francesco Brivio p.52
LL2340.40XTXXXEX -
LL2340.BUAT270EN -
LL2340.BUAT300EN -
LL2340.BUAT400EN -
LL2340.BUAT270EC -
LL2340.BUAT300EC -
LL2340.BUAT400EC -
LL2340.CGAT270EA -
LL2340.CGAT300EA -
LL2340.CGAT400EA -
LL2340.CGAT270EP -
LL2340.CGAT300EP -
LL2340.CGAT400EP -
LL2340.CGAT270EC-
LL2340.CGAT300EC -
LL2340.CGAT400EC -
LL2340.CGAT270ET -
LL2340.CGAT300ET -
LL2340.CGAT400ET -
LL2340.ECAT270EC -
LL2340.ECAT300EC -
LL2340.ECAT400EC -
LL2340.ECAT270ET -
LL2340.ECAT300ET -
LL2340.ECAT400ET -
R7S Max 15W - 220-240V - 50/60Hz - 85°x102°
16.5W 2700K 2262lm - 220-240V - 50/60Hz - 107°x104° Not dim
16.5W 3000K 2410lm - 220-240V - 50/60Hz - 107°x104° Not dim
16.5W 4000K 2592lm - 220-240V - 50/60Hz - 107°x104° Not dim
16.5W 2700K 2262lm - 500mA - 107°x104° Dim based on driver
16.5W 3000K 2410lm - 500mA - 107°x104° Dim based on driver
16.5W 4000K 2592lm - 500mA - 107°x104° Dim based on driver
23.7W 2700K 3102lm - 220-240V - 50/60Hz - 107°x104° Dim 1-10V
23.7W 3000K 3306lm - 220-240V - 50/60Hz - 107°x104° Dim 1-10V
23.7W 4000K 3555lm - 220-240V - 50/60Hz - 107°x104° Dim 1-10V
23.7W 2700K 3102lm - 220-240V - 50/60Hz - 107°x104° Push
23.7W 3000K 3306lm - 220-240V - 50/60Hz - 107°x104° Push
23.7W 4000K 3555lm - 220-240V - 50/60Hz - 107°x104° Push
23.7W 2700K 3102lm -700 mA - 107°x104° Dim based on driver
23.7W 3000K 3306lm - 700mA - 107°x104° Dim based on driver
23.7W 4000K 3555lm - 700mA - 107°x104° Dim based on driver
23.7W 2700K 3102lm - 220-240V - 50/60Hz - 107°x104° IGBT-TRIAC
23.7W 3000K 3306lm - 220-240V - 50/60Hz - 107°x104° IGBT-TRIAC
23.7W 4000K 3555lm - 220-240V - 50/60Hz - 107°x104° IGBT-TRIAC
31.3W 2700K 3909lm - 900mA - 107°x104° Dim based on driver
31.3W 3000 K 4166lm - 900mA - 107°x104° Dim based on driver
31.3W 4000K 4479lm - 900mA - 107°x104° Dim based on driver
31.3W 2700K 3909lm - 220-240V - 50/60Hz - 107°x104° IGBT-TRIAC
31.3W 3000K 4166lm - 220-240V - 50/60Hz - 107°x104° IGBT-TRIAC
31.3W 4000K 4479lm - 220-240V - 50/60Hz - 107°x104° IGBT-TRIAC
ZERO 2 SR
design by Francesco Brivio p.52
LL2410.CGAT300EN -
LL2410.CGAT400EN -
LL2410.CGAT300ED -
LL2410.CGAT400ED -
LL2410.CGAT300EB -
LL2410.CGAT400EB -
LL2410.ECAT300EN -
LL2410.ECAT400EN -
LL2410.ECAT300EB -
LL2410.ECAT400EB -
23.7W 3000K 3306lm - 220-240V - 50/60Hz - 110° x 86° Not dim
23.7W 4000K 3555lm - 220-240V - 50/60Hz - 110° x 86° Not dim
23.7W 3000K 3306lm - 220-240V - 50/60Hz - 110° x 86° Dim DALI 2 DT6
23.7W 4000K 3555lm - 220-240V - 50/60Hz - 110° x 86° Dim DALI 2 DT6
23.7W 3000K 3306lm - 220-240V - 50/60Hz - 110° x 86° Dim 1-10/Push
23.7W 4000K 3555lm - 220-240V - 50/60Hz - 110° x 86° Dim 1-10/Push
31.3W 3000K 4166lm - 220-240V - 50/60Hz - 110° x 86° Not dim
31.3W 4000K 4479lm - 220-240V - 50/60Hz - 110° x 86° Not dim
31.3W 3000K 4166lm - 220-240 V - 50/60Hz - 110° x 86° Dim 1-10/Push
31.3W 4000K 4479lm - 220-240V - 50/60Hz - 110° x 86° Dim 1-10/Push
105
Technical info
