CENTRO 1S
design by Antonio Lanzillo & Partners p.32
LL0139.BGFT300EC -
LL0139.BGFT400EC -
LL0139.AHFT300EC -
LL0139.AHFT400EC -
CENTRO 2S
design by Antonio Lanzillo & Partners p.32
LL0140.LVFT300EN -
LL0140.LVFT400EN -
3.2W 3000K 277lm - 1050mA - 36° Dim based on driver
3.2W 4000K 307 lm - 1050mA - 36° Dim based on driver
6W 3000K 845lm - 350mA - 55° Dim based on driver
6W 4000K 877lm - 350mA - 55° Dim based on driver
8W 3000K 740lm - 220-240V - 50/60Hz - 65° Push on request
8W 4000K 790lm - 220-240V - 50/60Hz - 65° Push on request
STELO 00S 300 Ø35
Lucitalia design studio p.34
LL2321.43XTXXXEX -
LL2321.BGST300EN -
LL2321.BGST400EN -
LL2321.BGFT300EN -
LL2321.BGFT400EN -
STELO 00S 600 Ø35
Lucitalia design studio p.34
LL2322.43XTXXXEX -
LL2322.BGST300EN -
LL2322.BGST400EN -
LL2322.BGFT300EN -
LL2322.BGFT400EN -
STELO 00S 900 Ø35
Lucitalia design studio p.34
LL2803.43XTXXXEX -
LL2803.BGST300EN -
LL2803.BGST400EN -
LL2803.BGFT300EN -
LL2803.BGFT400EN -
STELO 0S 300 Ø45
Lucitalia design studio p.34
LL2316.AHST300ET -
LL2316.AHST400ET -
LL2316.AHFT300ET -
LL2316.AHFT400ET -
STELO 0S 600 Ø45
Lucitalia design studio p.34
LL2317.AHST300ET -
LL2317.AHST400ET -
LL2317.AHFT300ET -
LL2317.AHFT400ET -
STELO 0S 900 Ø45
Lucitalia design studio p.34
LL2804.AHST300ET -
LL2804.AHST400ET -
LL2804.AHFT300ET -
LL2804.AHFT400ET -
G9 - Max 10W - 220-240 V - 50/60 Hz
4W 3000K 440lm 220-240V - 50/60 Hz - 25° Dim on request
4W 4000K 475lm 220-240V - 50/60 Hz - 25° Dim on request
4W 3000K 440lm 220-240V - 50/60 Hz - 47° Dim on request
4W 4000K 475lm 220-240V - 50/60 Hz - 47° Dim on request
G9 - Max 10W 215lm - 220-240V - 50/60Hz
4W 3000K 440lm 220-240V - 50/60Hz - 25° Dim on request
4W 4000K 475lm 220-240V - 50/60Hz - 25° Dim on request
4W 3000K 440lm 220-240V - 50/60Hz - 47° Dim on request
4W 4000K 475lm 220-240V - 50/60Hz - 47° Dim on request
G9 - Max 10W - 220-240V - 50/60Hz
4W 3000K 440lm 220-240V - 50/60Hz - 25° Dim on request
4W 4000K 475lm 220-240V - 50/60Hz - 25° Dim on request
4W 3000K 440lm 220-240V - 50/60Hz - 47° Dim on request
4W 4000K 475lm 220-240V - 50/60Hz - 47° Dim on request
6.1W 3000K 791lm 220-240V - 50/60Hz - 18° IGBT-TRIAC
6.1W 4000K 845lm 220-240V - 50/60Hz - 18° IGBT-TRIAC
6.1W 3000K 791lm 220-240V - 50/60Hz - 47° IGBT-TRIAC
6.1W 4000K 845lm 220-240V - 50/60Hz - 47° IGBT-TRIAC
6.1W 3000K 791lm 220-240V - 50/60Hz - 18° IGBT-TRIAC
6.1W 4000K 845lm 220-240V - 50/60Hz - 18° IGBT-TRIAC
6.1W 3000K 791lm 220-240V - 50/60Hz - 47° IGBT-TRIAC
6.1W 4000K 845lm 220-240V - 50/60Hz - 47° IGBT-TRIAC
6.1W 3000K 791lm 220-240V - 50/60Hz - 18° IGBT-TRIAC
6.1W 4000K 845lm 220-240V - 50/60Hz - 18° IGBT-TRIAC
6.1W 3000K 791lm 220-240V - 50/60Hz - 47° IGBT-TRIAC
6.1W 4000K 845lm 220-240V - 50/60Hz - 47° IGBT-TRIAC
98

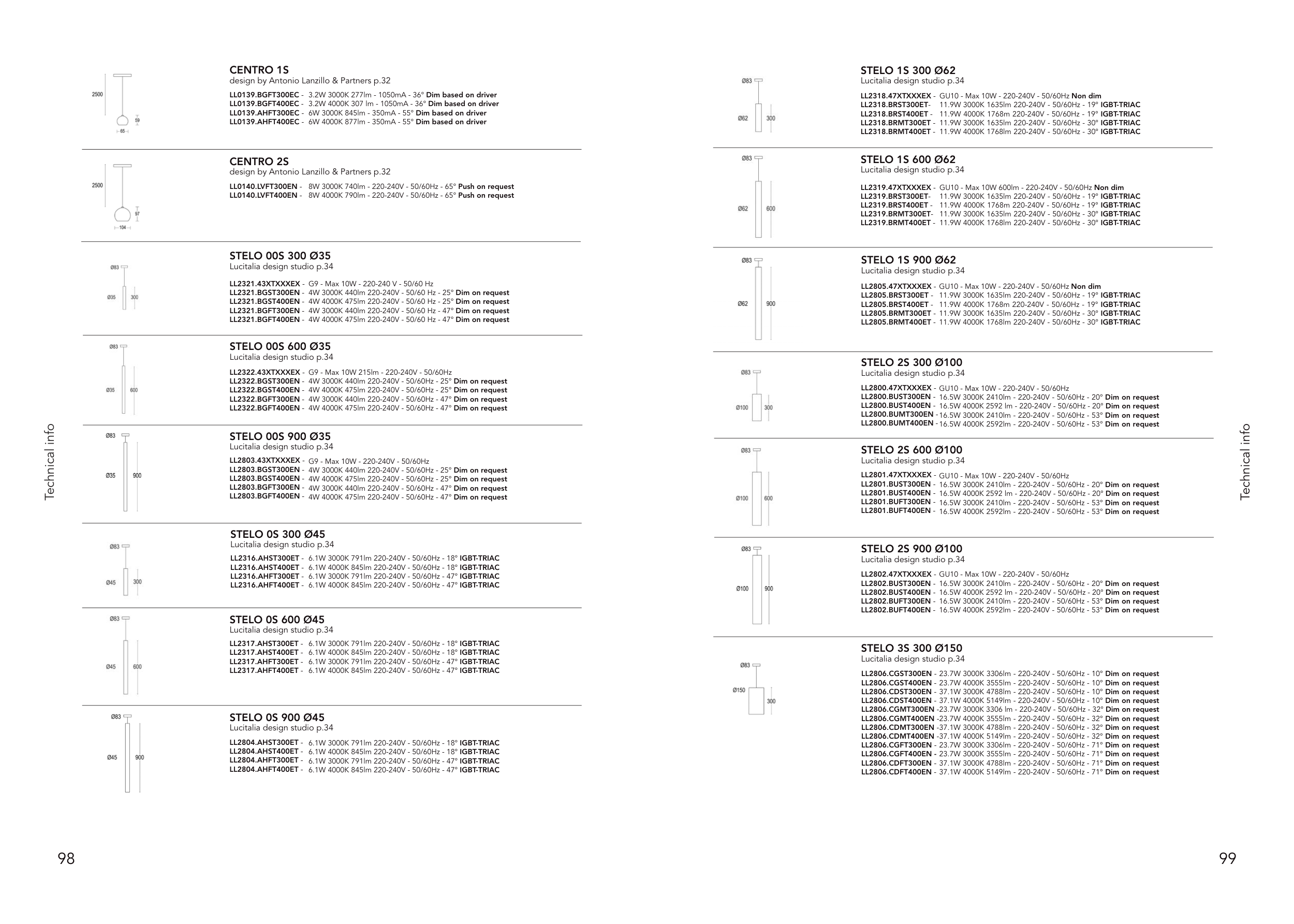

Technical info
STELO 1S 300 Ø62
Lucitalia design studio p.34
LL2318.47XTXXXEX -
LL2318.BRST300ET-
LL2318.BRST400ET -
LL2318.BRMT300ET -
LL2318.BRMT400ET -
STELO 1S 600 Ø62
Lucitalia design studio p.34
LL2319.47XTXXXEX -
LL2319.BRST300ET-
LL2319.BRST400ET -
LL2319.BRMT300ET-
LL2319.BRMT400ET -
GU10 - Max 10W - 220-240V - 50/60Hz Non dim
11.9W 3000K 1635lm 220-240V - 50/60Hz - 19° IGBT-TRIAC
11.9W 4000K 1768m 220-240V - 50/60Hz - 19° IGBT-TRIAC
11.9W 3000K 1635lm 220-240V - 50/60Hz - 30° IGBT-TRIAC
11.9W 4000K 1768lm 220-240V - 50/60Hz - 30° IGBT-TRIAC
GU10 - Max 10W 600lm - 220-240V - 50/60Hz Non dim
11.9W 3000K 1635lm 220-240V - 50/60Hz - 19° IGBT-TRIAC
11.9W 4000K 1768m 220-240V - 50/60Hz - 19° IGBT-TRIAC
11.9W 3000K 1635lm 220-240V - 50/60Hz - 30° IGBT-TRIAC
11.9W 4000K 1768lm 220-240V - 50/60Hz - 30° IGBT-TRIAC
STELO 1S 900 Ø62
Lucitalia design studio p.34
LL2805.47XTXXXEX -
LL2805.BRST300ET -
LL2805.BRST400ET -
LL2805.BRMT300ET -
LL2805.BRMT400ET -
STELO 2S 300 Ø100
Lucitalia design studio p.34
LL2800.47XTXXXEX -
LL2800.BUST300EN -
LL2800.BUST400EN -
LL2800.BUMT300EN -
LL2800.BUMT400EN -
STELO 2S 600 Ø100
Lucitalia design studio p.34
LL2801.47XTXXXEX -
LL2801.BUST300EN -
LL2801.BUST400EN -
LL2801.BUFT300EN -
LL2801.BUFT400EN -
STELO 2S 900 Ø100
Lucitalia design studio p.34
LL2802.47XTXXXEX -
LL2802.BUST300EN -
LL2802.BUST400EN -
LL2802.BUFT300EN -
LL2802.BUFT400EN -
STELO 3S 300 Ø150
Lucitalia design studio p.34
GU10 - Max 10W - 220-240V - 50/60Hz Non dim
11.9W 3000K 1635lm 220-240V - 50/60Hz - 19° IGBT-TRIAC
11.9W 4000K 1768m 220-240V - 50/60Hz - 19° IGBT-TRIAC
11.9W 3000K 1635lm 220-240V - 50/60Hz - 30° IGBT-TRIAC
11.9W 4000K 1768lm 220-240V - 50/60Hz - 30° IGBT-TRIAC
GU10 - Max 10W - 220-240V - 50/60Hz
16.5W 3000K 2410lm - 220-240V - 50/60Hz - 20° Dim on request
16.5W 4000K 2592 lm - 220-240V - 50/60Hz - 20° Dim on request
16.5W 3000K 2410lm - 220-240V - 50/60Hz - 53° Dim on request
16.5W 4000K 2592lm - 220-240V - 50/60Hz - 53° Dim on request
GU10 - Max 10W - 220-240V - 50/60Hz
16.5W 3000K 2410lm - 220-240V - 50/60Hz - 20° Dim on request
16.5W 4000K 2592 lm - 220-240V - 50/60Hz - 20° Dim on request
16.5W 3000K 2410lm - 220-240V - 50/60Hz - 53° Dim on request
16.5W 4000K 2592lm - 220-240V - 50/60Hz - 53° Dim on request
GU10 - Max 10W - 220-240V - 50/60Hz
16.5W 3000K 2410lm - 220-240V - 50/60Hz - 20° Dim on request
16.5W 4000K 2592 lm - 220-240V - 50/60Hz - 20° Dim on request
16.5W 3000K 2410lm - 220-240V - 50/60Hz - 53° Dim on request
16.5W 4000K 2592lm - 220-240V - 50/60Hz - 53° Dim on request
LL2806.CGST300EN -
LL2806.CGST400EN -
LL2806.CDST300EN -
LL2806.CDST400EN -
LL2806.CGMT300EN -
LL2806.CGMT400EN -
LL2806.CDMT300EN -
LL2806.CDMT400EN -
LL2806.CGFT300EN -
LL2806.CGFT400EN -
LL2806.CDFT300EN -
LL2806.CDFT400EN -
23.7W 3000K 3306lm - 220-240V - 50/60Hz - 10° Dim on request
23.7W 4000K 3555lm - 220-240V - 50/60Hz - 10° Dim on request
37.1W 3000K 4788lm - 220-240V - 50/60Hz - 10° Dim on request
37.1W 4000K 5149lm - 220-240V - 50/60Hz - 10° Dim on request
23.7W 3000K 3306 lm - 220-240V - 50/60Hz - 32° Dim on request
23.7W 4000K 3555lm - 220-240V - 50/60Hz - 32° Dim on request
37.1W 3000K 4788lm - 220-240V - 50/60Hz - 32° Dim on request
37.1W 4000K 5149lm - 220-240V - 50/60Hz - 32° Dim on request
23.7W 3000K 3306lm - 220-240V - 50/60Hz - 71° Dim on request
23.7W 3000K 3555lm - 220-240V - 50/60Hz - 71° Dim on request
37.1W 3000K 4788lm - 220-240V - 50/60Hz - 71° Dim on request
37.1W 4000K 5149lm - 220-240V - 50/60Hz - 71° Dim on request
99
Technical info
