All measurements in mm.

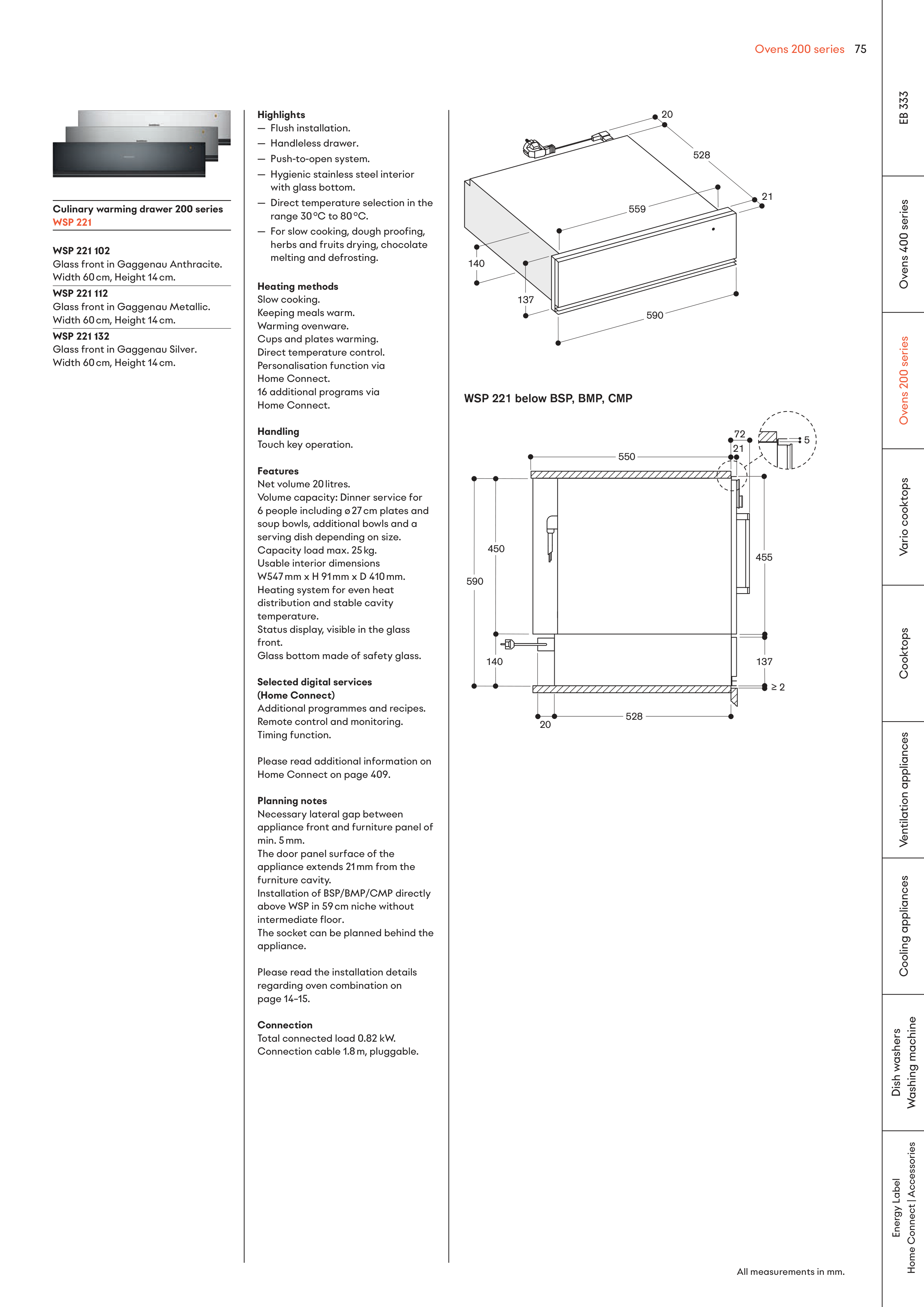

Culinary warming drawer 200 series
WS P 221
WS P 221 102
Glass front in Gaggenau Anthracite.
Width 60 cm, Height 14 cm.
WS P 221 112
Glass front in Gaggenau Metallic.
Width 60 cm, Height 14 cm.
WS P 221 132
Glass front in Gaggenau Silver.
Width 60 cm, Height 14 cm.
Highlights
— Flush installation.
— Handleless drawer.
— Push-to-open system.
— Hygienic stainless steel interior
with glass bottom.
— Direct temperature selection in the
range 30 °C to 80 °C.
— For slow cooking, dough proofing,
herbs and fruits drying, chocolate
melting and defrosting.
Heating methods
Slow cooking.
Keeping meals warm.
Warming ovenware.
Cups and plates warming.
Direct temperature control.
Personalisation function via
Home Connect.
16 additional programs via
Home Connect.
Handling
Touch key operation.
Features
Net volume 20 litres.
Volume capacity: Dinner service for
6 people including ø 27 cm plates and
soup bowls, additional bowls and a
serving dish depending on size.
Capacity load max. 25 kg.
Usable interior dimensions
W547 mm x H 91 mm x D 410 mm.
Heating system for even heat
distribution and stable cavity
temperature.
Status display, visible in the glass
front.
Glass bottom made of safety glass.
Selected digital services
(Home Connect)
Additional programmes and recipes.
Remote control and monitoring.
Timing function.
Please read additional information on
Home Connect on page 409.
Planning notes
Necessary lateral gap between
appliance front and furniture panel of
min. 5 mm.
The door panel surface of the
appliance extends 21 mm from the
furniture cavity.
Installation of BSP/BMP/CMP directly
above WSP in 59 cm niche without
intermediate floor.
The socket can be planned behind the
appliance.
Please read the installation details
regarding oven combination on
page 14–15.
Connection
Total connected load 0.82 kW.
Connection cable 1.8 m, pluggable.
Measurements in mm
20
528
137
590
140
21
559
WSP 221 below BSP, BMP, CMP
Measurements in mm
20
140
590
450
550
528
455
137
72
21
≥ 2
5
