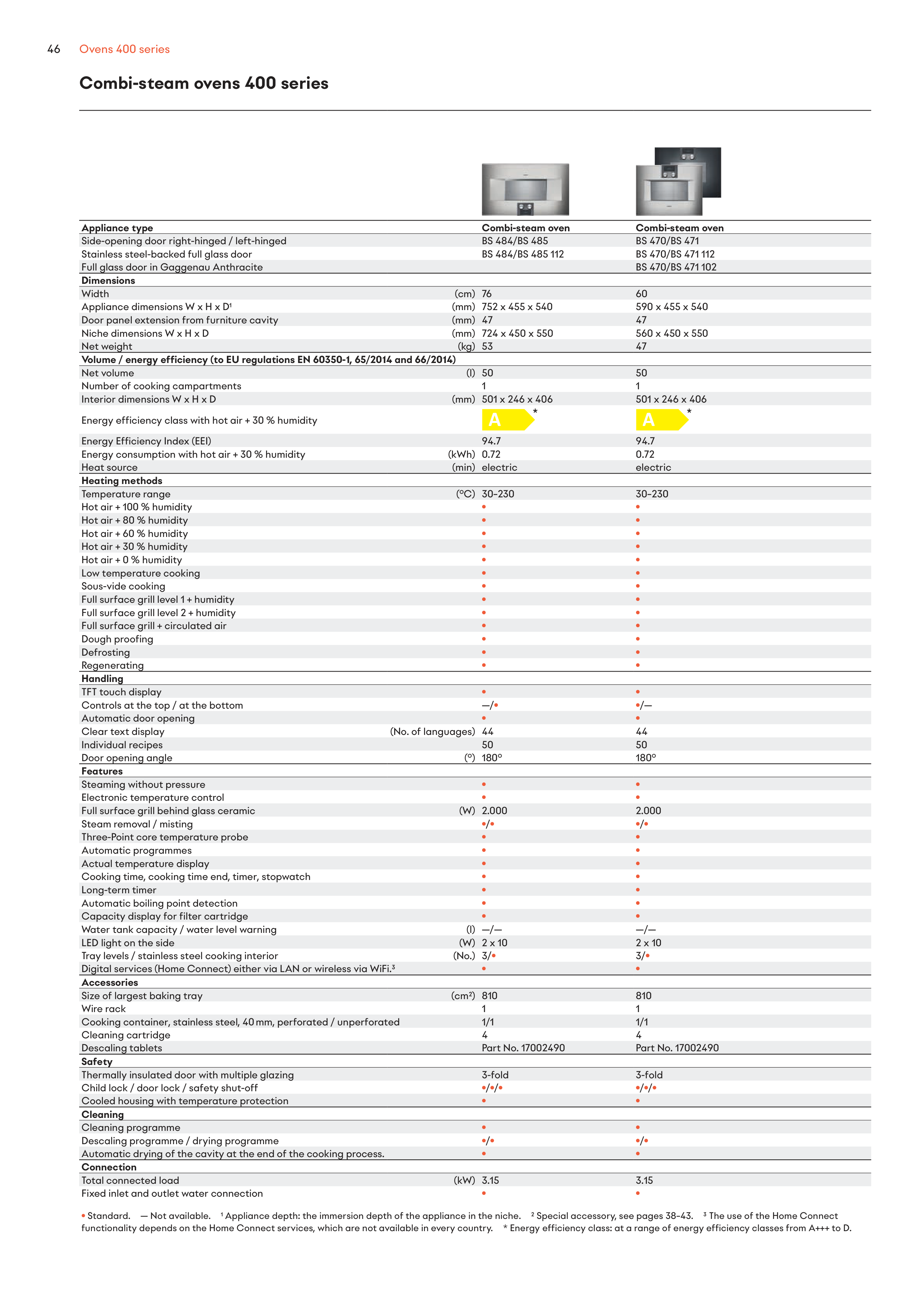

Combi-steam ovens 400 series
Appliance type
Combi-steam oven
Combi-steam oven
Combi-steam oven
Combi-steam oven
Combi-steam oven
Side-opening door right-hinged / left-hinged
BS 484/BS 485
BS 470/BS 471
BS 474/BS 475
BS 450/BS 451
BS 454/BS 455
Stainless steel-backed full glass door
BS 484/BS 485 112
BS 470/BS 471 112
BS 474/BS 475 112
BS 450/BS 451 111
BS 454/BS 455 111
Full glass door in Gaggenau Anthracite
BS 470/BS 471 102
BS 474/BS 475 102
BS 450/BS 451 101
BS 454/BS 455 101
Dimensions
Width
(cm) 76
60
60
60
60
Appliance dimensions W x H x D¹
(mm) 752 x 455 x 540
590 x 455 x 540
590 x 455 x 540
590 x 455 x 540
590 x 455 x 540
Door panel extension from furniture cavity
(mm) 47
47
47
47
47
Niche dimensions W x H x D
(mm) 724 x 450 x 550
560 x 450 x 550
560 x 450 x 550
560 x 450 x 550
560 x 450 x 550
Net weight
(kg) 53
47
47
47
47
Volume / energy efficiency (to EU regulations EN 60350-1, 65/2014 and 66/2014)
Net volume
(l) 50
50
50
50
50
Number of cooking campartments
1
1
1
1
1
Interior dimensions W x H x D
(mm) 501 x 246 x 406
501 x 246 x 406
501 x 246 x 406
501 x 246 x 406
501 x 246 x 406
Energy efficiency class with hot air + 30 % humidity
A
A
A
A
A
Energy Efficiency Index (EEI)
94.7
94.7
94.7
94.7
94.7
Energy consumption with hot air + 30 % humidity
(kWh) 0.72
0.72
0.72
0.60
0.60
Heat source
(min) electric
electric
electric
electric
electric
Heating methods
Temperature range
(°C) 30–230
30–230
30–230
30–230
30–230
Hot air + 100 % humidity
•
•
•
•
•
Hot air + 80 % humidity
•
•
•
•
•
Hot air + 60 % humidity
•
•
•
•
•
Hot air + 30 % humidity
•
•
•
•
•
Hot air + 0 % humidity
•
•
•
•
•
Low temperature cooking
•
•
•
•
•
Sous-vide cooking
•
•
•
•
•
Full surface grill level 1 + humidity
•
•
•
•
•
Full surface grill level 2 + humidity
•
•
•
•
•
Full surface grill + circulated air
•
•
•
•
•
Dough proofing
•
•
•
•
•
Defrosting
•
•
•
•
•
Regenerating
•
•
•
•
•
Handling
TFT touch display
•
•
•
•
•
Controls at the top / at the bottom
—/•
•/—
—/•
•/—
—/•
Automatic door opening
•
•
•
•
•
Clear text display
(No. of languages) 44
44
44
44
44
Individual recipes
50
50
50
50
50
Door opening angle
(°) 180°
180°
180°
180°
180°
Features
Steaming without pressure
•
•
•
•
•
Electronic temperature control
•
•
•
•
•
Full surface grill behind glass ceramic
(W) 2.000
2.000
2.000
—
—
Steam removal / misting
•/•
•/•
•/•
—/•
—/•
Three-Point core temperature probe
•
•
•
•
•
Automatic programmes
•
•
•
•
•
Actual temperature display
•
•
•
•
•
Cooking time, cooking time end, timer, stopwatch
•
•
•
•
•
Long-term timer
•
•
•
•
•
Automatic boiling point detection
•
•
•
•
•
Capacity display for filter cartridge
•
•
•
—
—
Water tank capacity / water level warning
(l) —/—
—/—
—/—
1.7/•
1.7/•
LED light on the side
(W) 2 x 10
2 x 10
2 x 10
2 x 10
2 x 10
Tray levels / stainless steel cooking interior
(No.) 3/•
3/•
3/•
3/•
3/•
Digital services (Home Connect) either via LAN or wireless via WiFi.³
•
•
•
•
•
Accessories
Size of largest baking tray
(cm²) 810
810
810
810
810
Wire rack
1
1
1
1
1
Cooking container, stainless steel, 40 mm, perforated / unperforated
1/1
1/1
1/1
1/1
1/1
Cleaning cartridge
4
4
4
4
4
Descaling tablets
Part No. 17002490
Part No. 17002490
Part No. 17002490
Part No. 17002490
Part No. 17002490
Safety
Thermally insulated door with multiple glazing
3-fold
3-fold
3-fold
3-fold
3-fold
Child lock / door lock / safety shut-off
•/•/•
•/•/•
•/•/•
•/•/•
•/•/•
Cooled housing with temperature protection
•
•
•
•
•
Cleaning
Cleaning programme
•
•
•
•
•
Descaling programme / drying programme
•/•
•/•
•/•
•/•
•/•
Automatic drying of the cavity at the end of the cooking process.
•
•
•
•
•
Connection
Total connected load
(kW) 3.15
3.15
3.15
3.15
3.15
Fixed inlet and outlet water connection
•
•
•
—
—
• Standard. — Not available. ¹ Appliance depth: the immersion depth of the appliance in the niche. ² Special accessory, see pages 38–43. ³ The use of the Home Connect
functionality depends on the Home Connect services, which are not available in every country. * Energy efficiency class: at a range of energy efficiency classes from A+++ to D.
