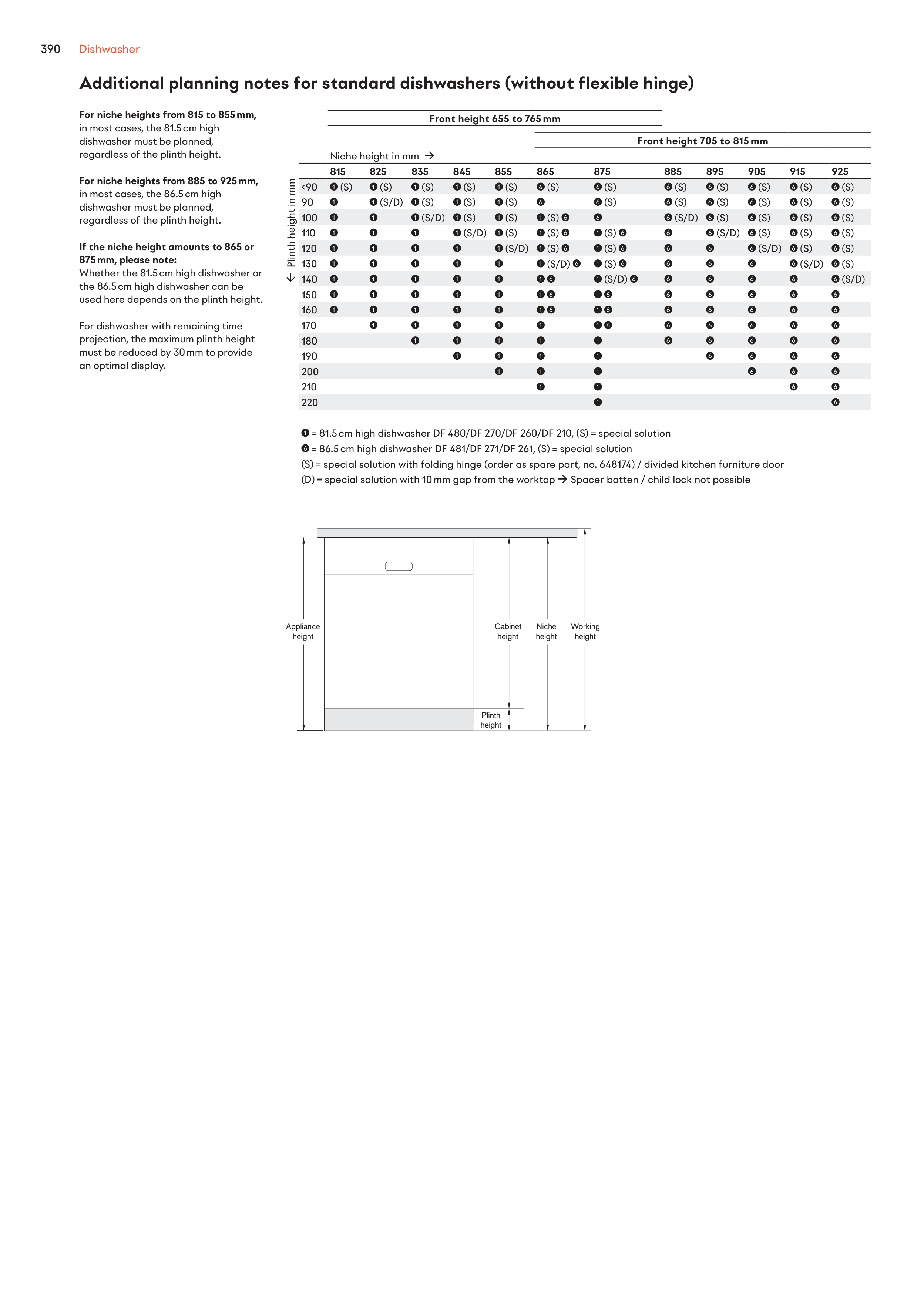

Additional planning notes for standard dishwashers (without flexible hinge)
For niche heights from 815 to 855 mm,
in most cases, the 81.5 cm high
dishwasher must be planned,
regardless of the plinth height.
For niche heights from 885 to 925 mm,
in most cases, the 86.5 cm high
dishwasher must be planned,
regardless of the plinth height.
If the niche height amounts to 865 or
875 mm, please note:
Whether the 81.5 cm high dishwasher or
the 86.5 cm high dishwasher can be
used here depends on the plinth height.
For dishwasher with remaining time
projection, the maximum plinth height
must be reduced by 30 mm to provide
an optimal display.
Front height 655 to 765 mm
Front height 705 to 815 mm
Niche height in mm
815
825
835
845
855
865
875
885
895
905
915
925
Plinth height in mm
<90
1 (S)
1 (S)
1 (S)
1 (S)
1 (S)
6 (S)
6 (S)
6 (S)
6 (S)
6 (S)
6 (S)
6 (S)
90
1
1 (S/D)
1 (S)
1 (S)
1 (S)
6
6 (S)
6 (S)
6 (S)
6 (S)
6 (S)
6 (S)
100
1
1
1 (S/D)
1 (S)
1 (S)
1 (S) 6
6
6 (S/D)
6 (S)
6 (S)
6 (S)
6 (S)
110
1
1
1
1 (S/D)
1 (S)
1 (S) 6
1 (S) 6
6
6 (S/D)
6 (S)
6 (S)
6 (S)
120
1
1
1
1
1 (S/D)
1 (S) 6
1 (S) 6
6
6
6 (S/D)
6 (S)
6 (S)
130
1
1
1
1
1
1 (S/D) 6
1 (S) 6
6
6
6
6 (S/D)
6 (S)
140
1
1
1
1
1
1 6
1 (S/D) 6
6
6
6
6
6 (S/D)
150
1
1
1
1
1
1 6
1 6
6
6
6
6
6
160
1
1
1
1
1
1 6
1 6
6
6
6
6
6
170
1
1
1
1
1
1 6
6
6
6
6
6
180
1
1
1
1
1
6
6
6
6
6
190
1
1
1
1
6
6
6
6
200
1
1
1
6
6
6
210
1
1
6
6
220
1
6
1 = 81.5 cm high dishwasher DF 480/DF 270/DF 260/DF 210, (S) = special solution
6 = 86.5 cm high dishwasher DF 481/DF 271/DF 261, (S) = special solution
(S) = special solution with folding hinge (order as spare part, no. 648174) / divided kitchen furniture door
(D) = special solution with 10 mm gap from the worktop Spacer batten / child lock not possible
���������
������
������
������
������
������
�������
�����
�������
������
