* Availability depending on country.

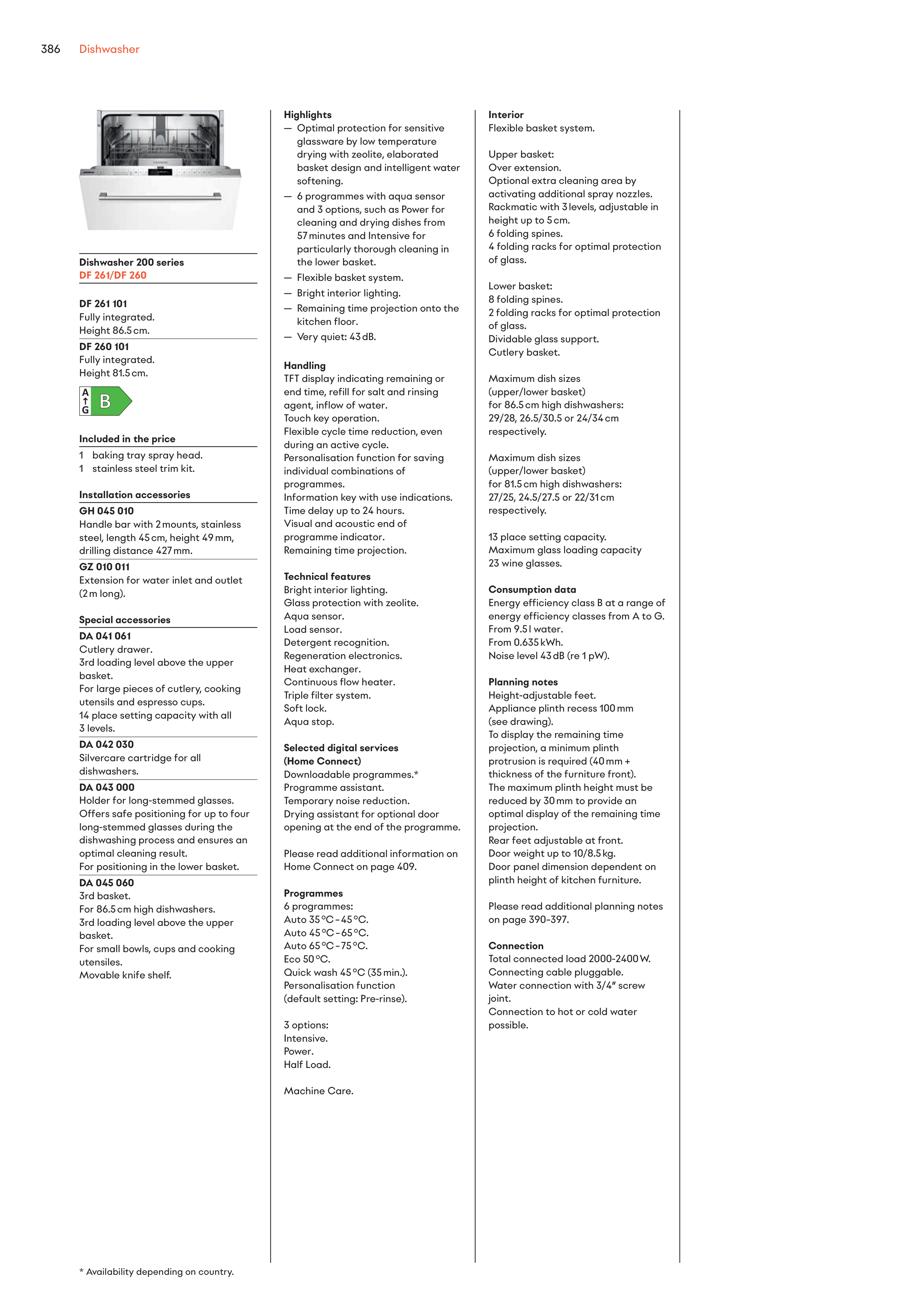

Dishwasher 200 series
D F 261/D F 260
D F 261 101
Fully integrated.
Height 86.5 cm.
D F 260 101
Fully integrated.
Height 81.5 cm.
Included in the price
1 baking tray spray head.
1 stainless steel trim kit.
Installation accessories
G H 045 010
Handle bar with 2 mounts, stainless
steel, length 45 cm, height 49 mm,
drilling distance 427 mm.
G Z 010 011
Extension for water inlet and outlet
(2 m long).
Special accessories
D A 041 061
Cutlery drawer.
3rd loading level above the upper
basket.
For large pieces of cutlery, cooking
utensils and espresso cups.
14 place setting capacity with all
3 levels.
D A 042 030
Silvercare cartridge for all
dishwashers.
D A 043 000
Holder for long-stemmed glasses.
Offers safe positioning for up to four
long-stemmed glasses during the
dishwashing process and ensures an
optimal cleaning result.
For positioning in the lower basket.
D A 045 060
3rd basket.
For 86.5 cm high dishwashers.
3rd loading level above the upper
basket.
For small bowls, cups and cooking
utensiles.
Movable knife shelf.
Highlights
— Optimal protection for sensitive
glassware by low temperature
drying with zeolite, elaborated
basket design and intelligent water
softening.
— 6 programmes with aqua sensor
and 3 options, such as Power for
cleaning and drying dishes from
57 minutes and Intensive for
particularly thorough cleaning in
the lower basket.
— Flexible basket system.
— Bright interior lighting.
— Remaining time projection onto the
kitchen floor.
— Very quiet: 43 dB.
Handling
TFT display indicating remaining or
end time, refill for salt and rinsing
agent, inflow of water.
Touch key operation.
Flexible cycle time reduction, even
during an active cycle.
Personalisation function for saving
individual combinations of
programmes.
Information key with use indications.
Time delay up to 24 hours.
Visual and acoustic end of
programme indicator.
Remaining time projection.
Technical features
Bright interior lighting.
Glass protection with zeolite.
Aqua sensor.
Load sensor.
Detergent recognition.
Regeneration electronics.
Heat exchanger.
Continuous flow heater.
Triple filter system.
Soft lock.
Aqua stop.
Selected digital services
(Home Connect)
Downloadable programmes.*
Programme assistant.
Temporary noise reduction.
Drying assistant for optional door
opening at the end of the programme.
Please read additional information on
Home Connect on page 409.
Programmes
6 programmes:
Auto 35 °C – 45 °C.
Auto 45 °C – 65 °C.
Auto 65 °C – 75 °C.
Eco 50 °C.
Quick wash 45 °C (35 min.).
Personalisation function
(default setting: Pre-rinse).
3 options:
Intensive.
Power.
Half Load.
Machine Care.
Interior
Flexible basket system.
Upper basket:
Over extension.
Optional extra cleaning area by
activating additional spray nozzles.
Rackmatic with 3 levels, adjustable in
height up to 5 cm.
6 folding spines.
4 folding racks for optimal protection
of glass.
Lower basket:
8 folding spines.
2 folding racks for optimal protection
of glass.
Dividable glass support.
Cutlery basket.
Maximum dish sizes
(upper/lower basket)
for 86.5 cm high dishwashers:
29/28, 26.5/30.5 or 24/34 cm
respectively.
Maximum dish sizes
(upper/lower basket)
for 81.5 cm high dishwashers:
27/25, 24.5/27.5 or 22/31 cm
respectively.
13 place setting capacity.
Maximum glass loading capacity
23 wine glasses.
Consumption data
Energy efficiency class B at a range of
energy efficiency classes from A to G.
From 9.5 l water.
From 0.635 kWh.
Noise level 43 dB (re 1 pW).
Planning notes
Height-adjustable feet.
Appliance plinth recess 100 mm
(see drawing).
To display the remaining time
projection, a minimum plinth
protrusion is required (40 mm +
thickness of the furniture front).
The maximum plinth height must be
reduced by 30 mm to provide an
optimal display of the remaining time
projection.
Rear feet adjustable at front.
Door weight up to 10/8.5 kg.
Door panel dimension dependent on
plinth height of kitchen furniture.
Please read additional planning notes
on page 390–397.
Connection
Total connected load 2000-2400 W.
Connecting cable pluggable.
Water connection with 3/4" screw
joint.
Connection to hot or cold water
possible.
Dishwasher
386
