* Availability depending on country.

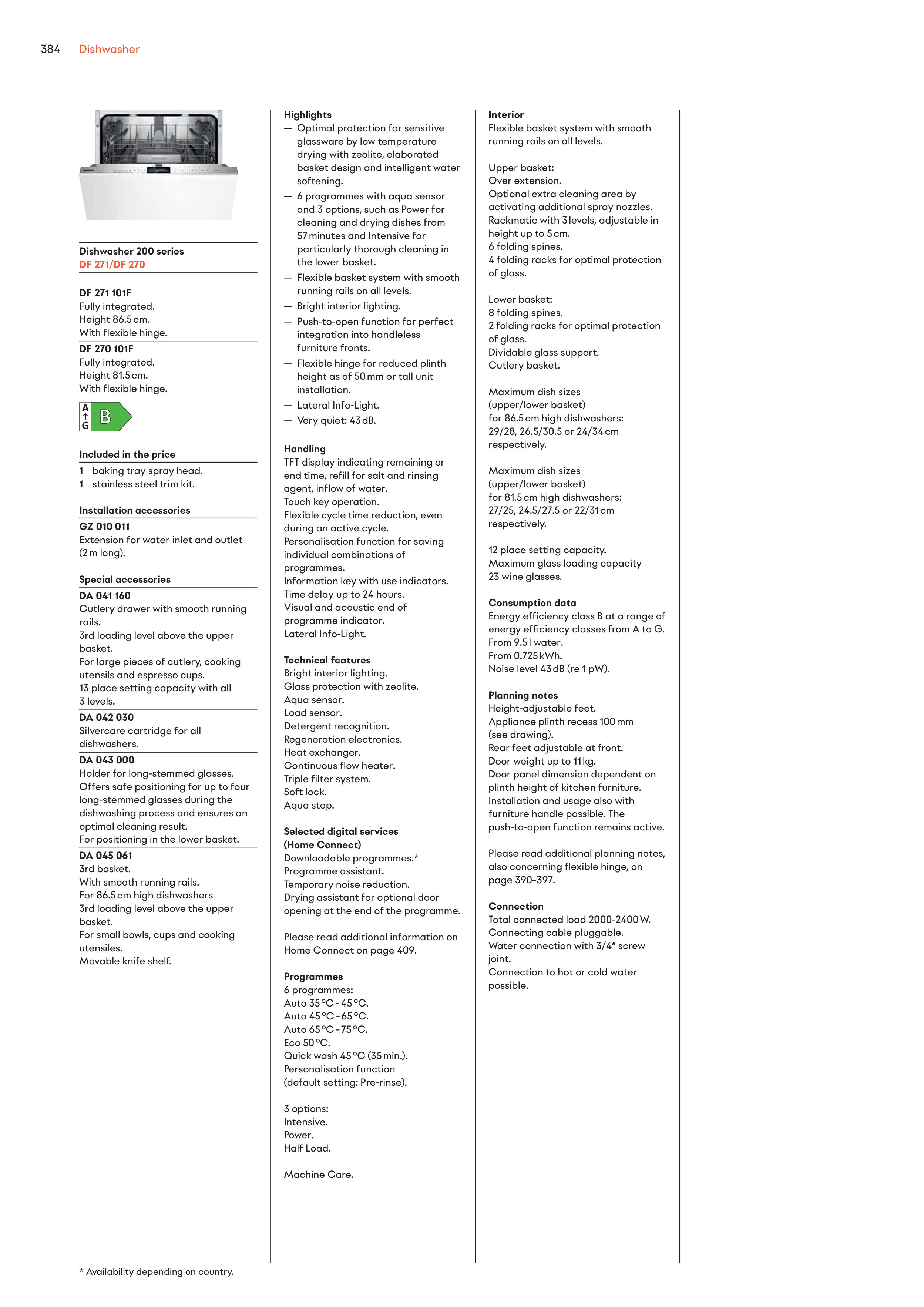

Dishwasher 200 series
D F 271/D F 270
D F 271 101F
Fully integrated.
Height 86.5 cm.
With flexible hinge.
D F 270 101F
Fully integrated.
Height 81.5 cm.
With flexible hinge.
Included in the price
1 baking tray spray head.
1 stainless steel trim kit.
Installation accessories
G Z 010 011
Extension for water inlet and outlet
(2 m long).
Special accessories
D A 041 160
Cutlery drawer with smooth running
rails.
3rd loading level above the upper
basket.
For large pieces of cutlery, cooking
utensils and espresso cups.
13 place setting capacity with all
3 levels.
D A 042 030
Silvercare cartridge for all
dishwashers.
D A 043 000
Holder for long-stemmed glasses.
Offers safe positioning for up to four
long-stemmed glasses during the
dishwashing process and ensures an
optimal cleaning result.
For positioning in the lower basket.
D A 045 061
3rd basket.
With smooth running rails.
For 86.5 cm high dishwashers
3rd loading level above the upper
basket.
For small bowls, cups and cooking
utensiles.
Movable knife shelf.
Highlights
— Optimal protection for sensitive
glassware by low temperature
drying with zeolite, elaborated
basket design and intelligent water
softening.
— 6 programmes with aqua sensor
and 3 options, such as Power for
cleaning and drying dishes from
57 minutes and Intensive for
particularly thorough cleaning in
the lower basket.
— Flexible basket system with smooth
running rails on all levels.
— Bright interior lighting.
— Push-to-open function for perfect
integration into handleless
furniture fronts.
— Flexible hinge for reduced plinth
height as of 50 mm or tall unit
installation.
— Lateral Info-Light.
— Very quiet: 43 dB.
Handling
TFT display indicating remaining or
end time, refill for salt and rinsing
agent, inflow of water.
Touch key operation.
Flexible cycle time reduction, even
during an active cycle.
Personalisation function for saving
individual combinations of
programmes.
Information key with use indicators.
Time delay up to 24 hours.
Visual and acoustic end of
programme indicator.
Lateral Info-Light.
Technical features
Bright interior lighting.
Glass protection with zeolite.
Aqua sensor.
Load sensor.
Detergent recognition.
Regeneration electronics.
Heat exchanger.
Continuous flow heater.
Triple filter system.
Soft lock.
Aqua stop.
Selected digital services
(Home Connect)
Downloadable programmes.*
Programme assistant.
Temporary noise reduction.
Drying assistant for optional door
opening at the end of the programme.
Please read additional information on
Home Connect on page 409.
Programmes
6 programmes:
Auto 35 °C – 45 °C.
Auto 45 °C – 65 °C.
Auto 65 °C – 75 °C.
Eco 50 °C.
Quick wash 45 °C (35 min.).
Personalisation function
(default setting: Pre-rinse).
3 options:
Intensive.
Power.
Half Load.
Machine Care.
Interior
Flexible basket system with smooth
running rails on all levels.
Upper basket:
Over extension.
Optional extra cleaning area by
activating additional spray nozzles.
Rackmatic with 3 levels, adjustable in
height up to 5 cm.
6 folding spines.
4 folding racks for optimal protection
of glass.
Lower basket:
8 folding spines.
2 folding racks for optimal protection
of glass.
Dividable glass support.
Cutlery basket.
Maximum dish sizes
(upper/lower basket)
for 86.5 cm high dishwashers:
29/28, 26.5/30.5 or 24/34 cm
respectively.
Maximum dish sizes
(upper/lower basket)
for 81.5 cm high dishwashers:
27/25, 24.5/27.5 or 22/31 cm
respectively.
12 place setting capacity.
Maximum glass loading capacity
23 wine glasses.
Consumption data
Energy efficiency class B at a range of
energy efficiency classes from A to G.
From 9.5 l water.
From 0.725 kWh.
Noise level 43 dB (re 1 pW).
Planning notes
Height-adjustable feet.
Appliance plinth recess 100 mm
(see drawing).
Rear feet adjustable at front.
Door weight up to 11 kg.
Door panel dimension dependent on
plinth height of kitchen furniture.
Installation and usage also with
furniture handle possible. The
push-to-open function remains active.
Please read additional planning notes,
also concerning flexible hinge, on
page 390–397.
Connection
Total connected load 2000-2400 W.
Connecting cable pluggable.
Water connection with 3/4" screw
joint.
Connection to hot or cold water
possible.
Dishwasher
384
