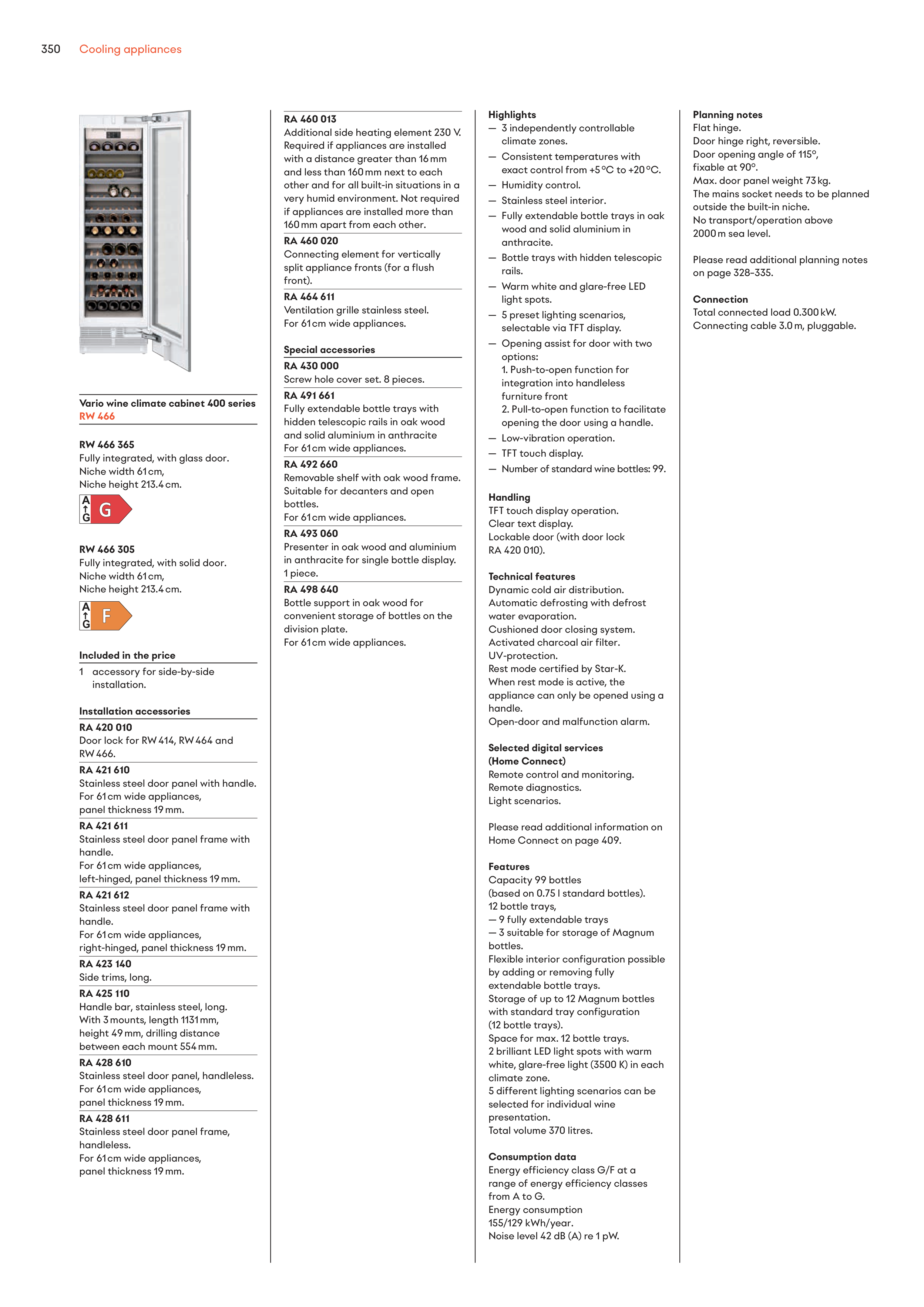

Vario wine climate cabinet 400 series
R W 466
R W 466 365
Fully integrated, with glass door.
Niche width 61 cm,
Niche height 213.4 cm.
R W 466 305
Fully integrated, with solid door.
Niche width 61 cm,
Niche height 213.4 cm.
Included in the price
1 accessory for side-by-side
installation.
Installation accessories
R A 420 010
Door lock for RW 414, RW 464 and
RW 466.
R A 421 610
Stainless steel door panel with handle.
For 61 cm wide appliances,
panel thickness 19 mm.
R A 421 611
Stainless steel door panel frame with
handle.
For 61 cm wide appliances,
left-hinged, panel thickness 19 mm.
R A 421 612
Stainless steel door panel frame with
handle.
For 61 cm wide appliances,
right-hinged, panel thickness 19 mm.
R A 423 140
Side trims, long.
R A 425 110
Handle bar, stainless steel, long.
With 3 mounts, length 1131 mm,
height 49 mm, drilling distance
between each mount 554 mm.
R A 428 610
Stainless steel door panel, handleless.
For 61 cm wide appliances,
panel thickness 19 mm.
R A 428 611
Stainless steel door panel frame,
handleless.
For 61 cm wide appliances,
panel thickness 19 mm.
A
G
A
G
R A 460 013
Additional side heating element 230 V.
Required if appliances are installed
with a distance greater than 16 mm
and less than 160 mm next to each
other and for all built-in situations in a
very humid environment. Not required
if appliances are installed more than
160 mm apart from each other.
R A 460 020
Connecting element for vertically
split appliance fronts (for a flush
front).
R A 464 611
Ventilation grille stainless steel.
For 61 cm wide appliances.
Special accessories
R A 430 000
Screw hole cover set. 8 pieces.
R A 491 661
Fully extendable bottle trays with
hidden telescopic rails in oak wood
and solid aluminium in anthracite
For 61 cm wide appliances.
R A 492 660
Removable shelf with oak wood frame.
Suitable for decanters and open
bottles.
For 61 cm wide appliances.
R A 493 060
Presenter in oak wood and aluminium
in anthracite for single bottle display.
1 piece.
R A 498 640
Bottle support in oak wood for
convenient storage of bottles on the
division plate.
For 61 cm wide appliances.
Highlights
— 3 independently controllable
climate zones.
— Consistent temperatures with
exact control from +5 °C to +20 °C.
— Humidity control.
— Stainless steel interior.
— Fully extendable bottle trays in oak
wood and solid aluminium in
anthracite.
— Bottle trays with hidden telescopic
rails.
— Warm white and glare-free LED
light spots.
— 5 preset lighting scenarios,
selectable via TFT display.
— Opening assist for door with two
options:
1. Push-to-open function for
integration into handleless
furniture front
2. Pull-to-open function to facilitate
opening the door using a handle.
— Low-vibration operation.
— TFT touch display.
— Number of standard wine bottles: 99.
Handling
TFT touch display operation.
Clear text display.
Lockable door (with door lock
RA 420 010).
Technical features
Dynamic cold air distribution.
Automatic defrosting with defrost
water evaporation.
Cushioned door closing system.
Activated charcoal air filter.
UV-protection.
Rest mode certified by Star-K.
When rest mode is active, the
appliance can only be opened using a
handle.
Open-door and malfunction alarm.
Selected digital services
(Home Connect)
Remote control and monitoring.
Remote diagnostics.
Light scenarios.
Please read additional information on
Home Connect on page 409.
Features
Capacity 99 bottles
(based on 0.75 l standard bottles).
12 bottle trays,
— 9 fully extendable trays
— 3 suitable for storage of Magnum
bottles.
Flexible interior configuration possible
by adding or removing fully
extendable bottle trays.
Storage of up to 12 Magnum bottles
with standard tray configuration
(12 bottle trays).
Space for max. 12 bottle trays.
2 brilliant LED light spots with warm
white, glare-free light (3500 K) in each
climate zone.
5 different lighting scenarios can be
selected for individual wine
presentation.
Total volume 370 litres.
Consumption data
Energy efficiency class G/F at a
range of energy efficiency classes
from A to G.
Energy consumption
155/129 kWh/year.
Noise level 42 dB (A) re 1 pW.
Planning notes
Flat hinge.
Door hinge right, reversible.
Door opening angle of 115°,
fixable at 90°.
Max. door panel weight 73 kg.
The mains socket needs to be planned
outside the built-in niche.
No transport/operation above
2000 m sea level.
Please read additional planning notes
on page 328–335.
Connection
Total connected load 0.300 kW.
Connecting cable 3.0 m, pluggable.
Cooling appliances
350
