All measurements in mm.

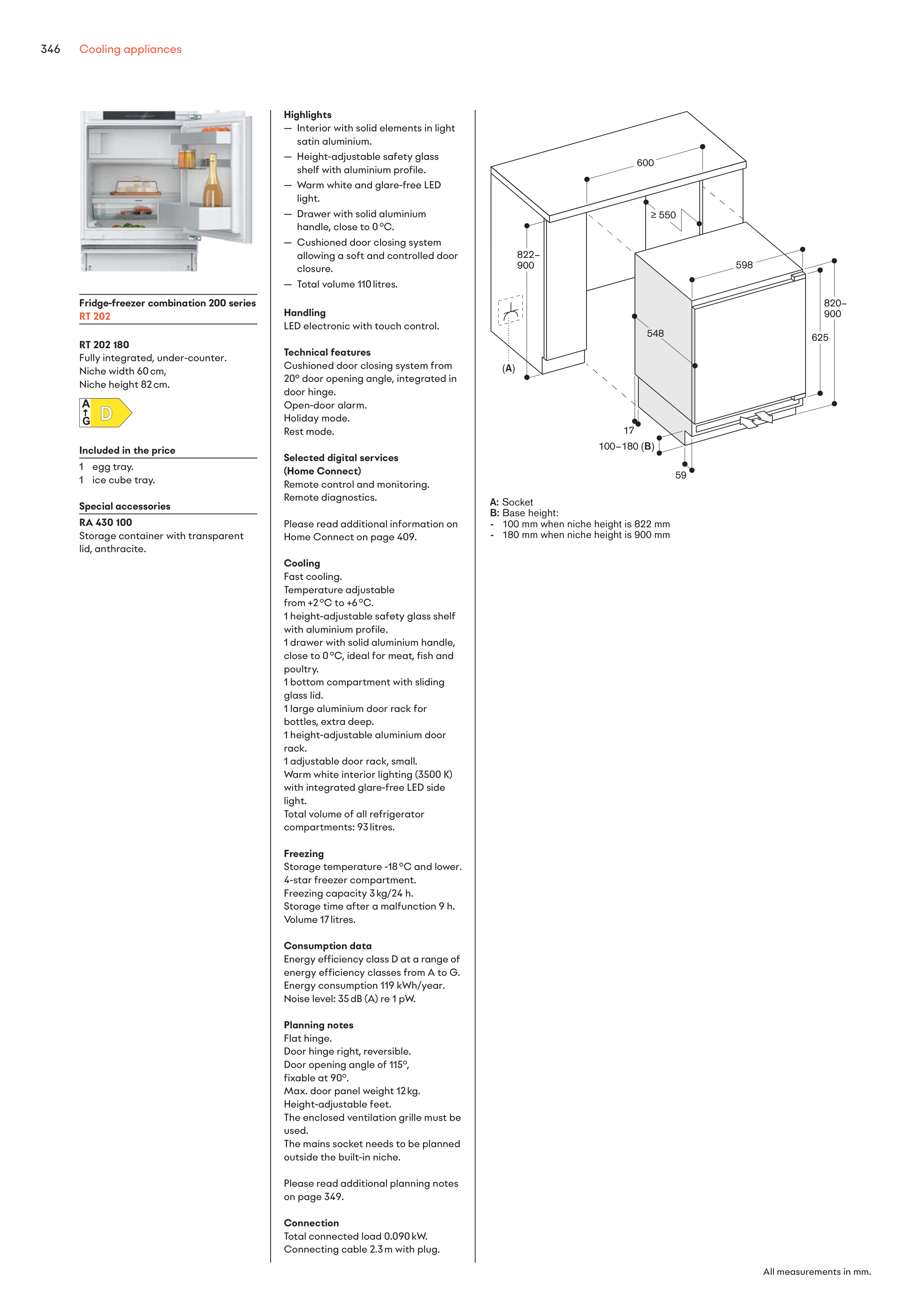

Fridge-freezer combination 200 series
R T 202
R T 202 180
Fully integrated, under-counter.
Niche width 60 cm,
Niche height 82 cm.
Included in the price
1 egg tray.
1 ice cube tray.
Special accessories
R A 430 100
Storage container with transparent
lid, anthracite.
A
G
Highlights
— Interior with solid elements in light
satin aluminium.
— Height-adjustable safety glass
shelf with aluminium profile.
— Warm white and glare-free LED
light.
— Drawer with solid aluminium
handle, close to 0 °C.
— Cushioned door closing system
allowing a soft and controlled door
closure.
— Total volume 110 litres.
Handling
LED electronic with touch control.
Technical features
Cushioned door closing system from
20° door opening angle, integrated in
door hinge.
Open-door alarm.
Holiday mode.
Rest mode.
Selected digital services
(Home Connect)
Remote control and monitoring.
Remote diagnostics.
Please read additional information on
Home Connect on page 409.
Cooling
Fast cooling.
Temperature adjustable
from +2 °C to +6 °C.
1 height-adjustable safety glass shelf
with aluminium profile.
1 drawer with solid aluminium handle,
close to 0 °C, ideal for meat, fish and
poultry.
1 bottom compartment with sliding
glass lid.
1 large aluminium door rack for
bottles, extra deep.
1 height-adjustable aluminium door
rack.
1 adjustable door rack, small.
Warm white interior lighting (3500 K)
with integrated glare-free LED side
light.
Total volume of all refrigerator
compartments: 93 litres.
Freezing
Storage temperature -18 °C and lower.
4-star freezer compartment.
Freezing capacity 3 kg/24 h.
Storage time after a malfunction 9 h.
Volume 17 litres.
Consumption data
Energy efficiency class D at a range of
energy efficiency classes from A to G.
Energy consumption 119 kWh/year.
Noise level: 35 dB (A) re 1 pW.
Planning notes
Flat hinge.
Door hinge right, reversible.
Door opening angle of 115°,
fixable at 90°.
Max. door panel weight 12 kg.
Height-adjustable feet.
The enclosed ventilation grille must be
used.
The mains socket needs to be planned
outside the built-in niche.
Please read additional planning notes
on page 349.
Connection
Total connected load 0.090 kW.
Connecting cable 2.3 m with plug.
Base height:
100 mm when niche height is 822 mm
180 mm when niche height is 900 mm
Socket
-
-
B:
A:
Measurements in mm
17
59
598
600
≥ 550
548
625
820–
900
822–
900
100–180 (
B
)
(
A
)
Cooling appliances
346
