All measurements in mm.

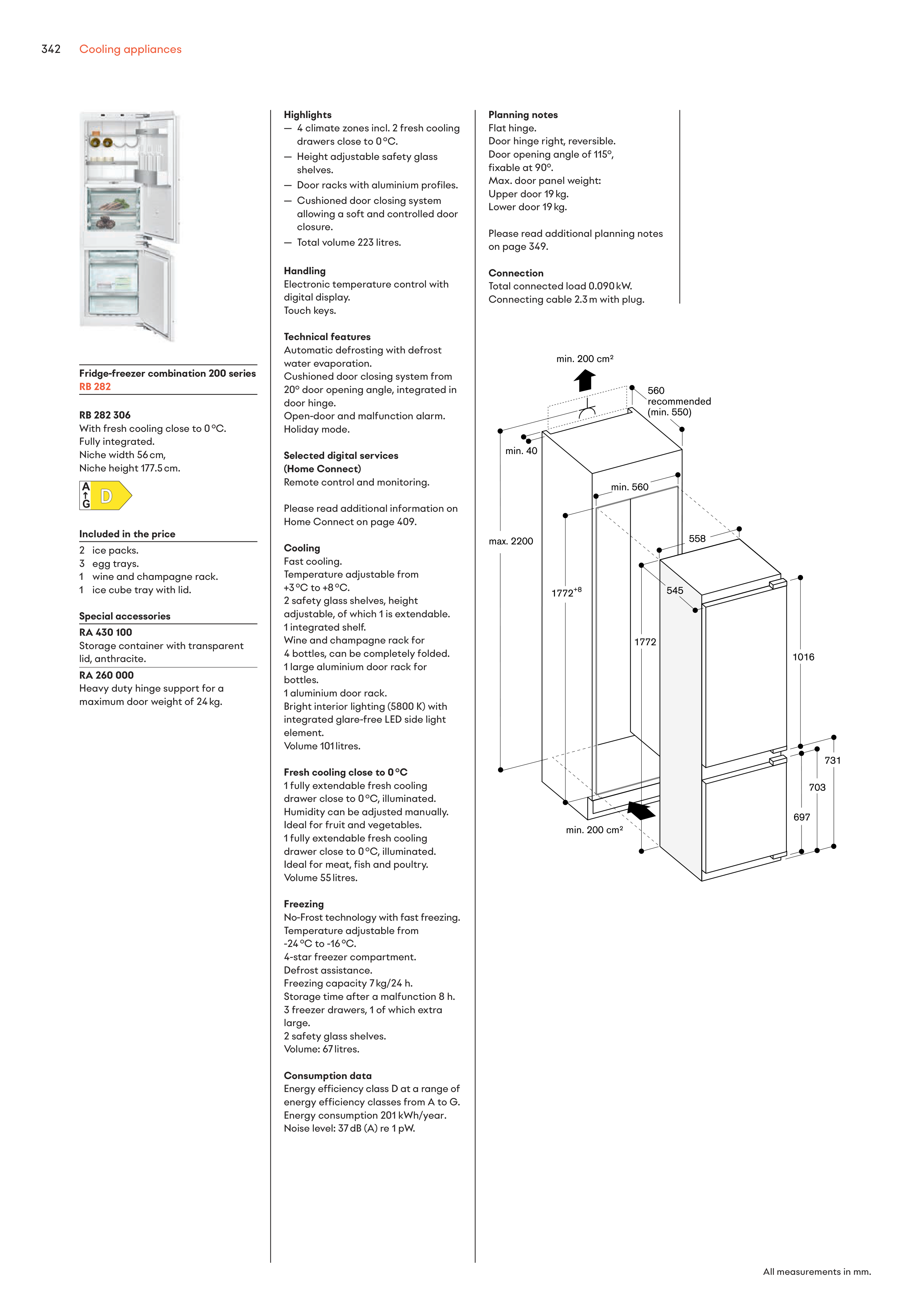

Fridge-freezer combination 200 series
R B 282
R B 282 306
With fresh cooling close to 0 °C.
Fully integrated.
Niche width 56 cm,
Niche height 177.5 cm.
Included in the price
2 ice packs.
3 egg trays.
1 wine and champagne rack.
1 ice cube tray with lid.
Special accessories
R A 430 100
Storage container with transparent
lid, anthracite.
R A 260 000
Heavy duty hinge support for a
maximum door weight of 24 kg.
A
G
Highlights
— 4 climate zones incl. 2 fresh cooling
drawers close to 0 °C.
— Height adjustable safety glass
shelves.
— Door racks with aluminium profiles.
— Cushioned door closing system
allowing a soft and controlled door
closure.
— Total volume 223 litres.
Handling
Electronic temperature control with
digital display.
Touch keys.
Technical features
Automatic defrosting with defrost
water evaporation.
Cushioned door closing system from
20° door opening angle, integrated in
door hinge.
Open-door and malfunction alarm.
Holiday mode.
Selected digital services
(Home Connect)
Remote control and monitoring.
Please read additional information on
Home Connect on page 409.
Cooling
Fast cooling.
Temperature adjustable from
+3 °C to +8 °C.
2 safety glass shelves, height
adjustable, of which 1 is extendable.
1 integrated shelf.
Wine and champagne rack for
4 bottles, can be completely folded.
1 large aluminium door rack for
bottles.
1 aluminium door rack.
Bright interior lighting (5800 K) with
integrated glare-free LED side light
element.
Volume 101 litres.
Fresh cooling close to 0 °C
1 fully extendable fresh cooling
drawer close to 0 °C, illuminated.
Humidity can be adjusted manually.
Ideal for fruit and vegetables.
1 fully extendable fresh cooling
drawer close to 0 °C, illuminated.
Ideal for meat, fish and poultry.
Volume 55 litres.
Freezing
No-Frost technology with fast freezing.
Temperature adjustable from
-24 °C to -16 °C.
4-star freezer compartment.
Defrost assistance.
Freezing capacity 7 kg/24 h.
Storage time after a malfunction 8 h.
3 freezer drawers, 1 of which extra
large.
2 safety glass shelves.
Volume: 67 litres.
Consumption data
Energy efficiency class D at a range of
energy efficiency classes from A to G.
Energy consumption 201 kWh/year.
Noise level: 37 dB (A) re 1 pW.
Planning notes
Flat hinge.
Door hinge right, reversible.
Door opening angle of 115°,
fixable at 90°.
Max. door panel weight:
Upper door 19 kg.
Lower door 19 kg.
Please read additional planning notes
on page 349.
Connection
Total connected load 0.090 kW.
Connecting cable 2.3 m with plug.
Cooling appliances
342
