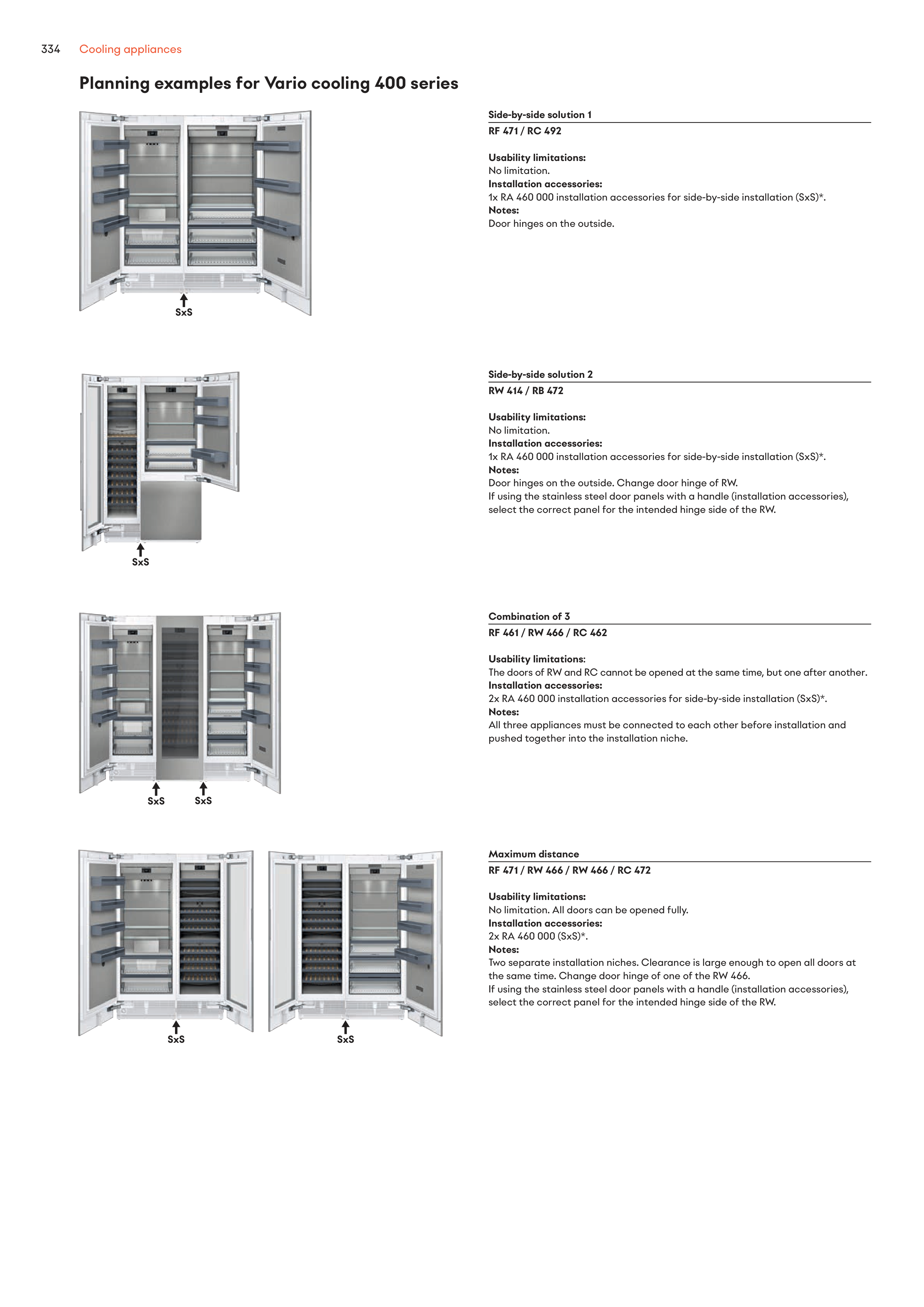

Planning examples for Vario cooling 400 series
Side-by-side solution 1
RF 471 / RC 492
Usability limitations:
No limitation.
Installation accessories:
1x RA 460 000 installa tion accessories for side-by-side installation (SxS)*.
Notes:
Door hinges on the outside.
Side-by-side solution 2
RW 414 / RB 472
Usability limitations:
No limitation.
Installation accessories:
1x RA 460 000 installa tion accessories for side-by-side installation (SxS)*.
Notes:
Door hinges on the outside. Change door hinge of RW.
If using the stainless steel door panels with a handle (installation accessories),
select the correct panel for the intended hinge side of the RW.
Combination of 3
RF 461 / RW 466 / RC 462
Usability limitations:
The doors of RW and RC cannot be opened at the same time, but one after another.
Installation accessories:
2x RA 460 000 installation accessories for side-by-side installation (SxS)*.
Notes:
All three appliances must be connected to each other before installation and
pushed together into the installation niche.
Maximum distance
RF 471 / RW 466 / RW 466 / RC 472
Usability limitations:
No limitation. All doors can be opened fully.
Installation accessories:
2x RA 460 000 (SxS)*.
Notes:
Two separate installation niches. Clearance is large enough to open all doors at
the same time. Change door hinge of one of the RW 466.
If using the stainless steel door panels with a handle (installation accessories),
select the correct panel for the intended hinge side of the RW.
