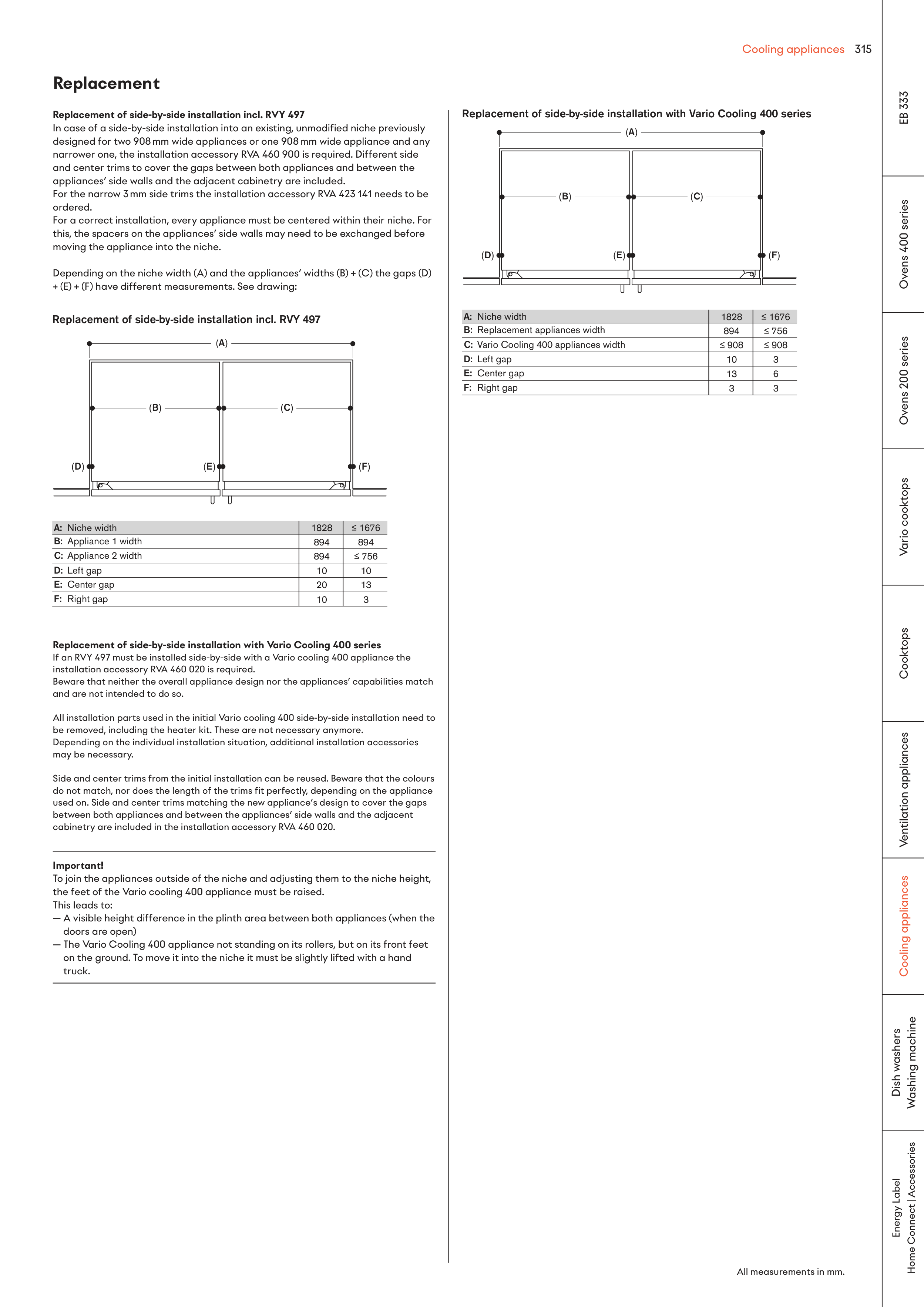

Replacement of side-by-side installation incl. RVY 497
In case of a side-by-side installation into an existing, unmodified niche previously
designed for two 908 mm wide appliances or one 908 mm wide appliance and any
narrower one, the installation accessory RVA 460 900 is required. Different side
and center trims to cover the gaps between both appliances and between the
appliances’ side walls and the adjacent cabinetry are included.
For the narrow 3 mm side trims the installation accessory RVA 423 141 needs to be
ordered.
For a correct installation, every appliance must be centered within their niche. For
this, the spacers on the appliances’ side walls may need to be exchanged before
moving the appliance into the niche.
Depending on the niche width (A) and the appliances’ widths (B) + (C) the gaps (D)
+ (E) + (F) have different measurements. See drawing:
Replacement
All measurements in mm.
Replacement of side-by-side installation with Vario Cooling 400 series
If an RVY 497 must be installed side-by-side with a Vario cooling 400 appliance the
installation accessory RVA 460 020 is required.
Beware that neither the overall appliance design nor the appliances’ capabilities match
and are not intended to do so.
All installation parts used in the initial Vario cooling 400 side-by-side installation need to
be removed, including the heater kit. These are not necessary anymore.
Depending on the individual installation situation, additional installation accessories
may be necessary.
Side and center trims from the initial installation can be reused. Beware that the colours
do not match, nor does the length of the trims fit perfectly, depending on the appliance
used on. Side and center trims matching the new appliance’s design to cover the gaps
between both appliances and between the appliances’ side walls and the adjacent
cabinetry are included in the installation accessory RVA 460 020.
Important!
To join the appliances outside of the niche and adjusting them to the niche height,
the feet of the Vario cooling 400 appliance must be raised.
This leads to:
— A visible height difference in the plinth area between both appliances (when the
doors are open)
— The Vario Cooling 400 appliance not standing on its rollers, but on its front feet
on the ground. To move it into the niche it must be slightly lifted with a hand
truck.
Replacement of side-by-side installation incl. RVY 497
Niche width
Appliance 1 width
Appliance 2 width
Left gap
Center gap
Right gap
F:
E:
A:
B:
C:
D:
Measurements in mm
(
A
)
(
B
)
(
D
)
(
E
)
(
F
)
(
C
)
1828
≤ 1676
894
894
894
≤ 756
10
10
20
13
10
3
Replacement of side-by-side installation with Vario Cooling 400 series
Niche width
Replacement appliances width
Vario Cooling 400 appliances width
Left gap
Center gap
Right gap
F:
E:
A:
B:
C:
D:
Measurements in mm
(
A
)
(
B
)
(
D
)
(
E
)
(
F
)
(
C
)
1828
≤ 1676
894
≤ 756
≤ 908
≤ 908
10
3
13
6
3
3
