The side walls of the adjacent cabinetry have to be dimensionally stable, as the
cooling appliances are secured in the niche with only an anti-tilt bracket on
the top back and on the bottom at the side.
The cooling appliances can be installed handle to handle as a side-by-side
combination. In this case the side-by-side installation kit RVA 460 000 is required.
If the cooling appliances are joined together hinge to hinge an additional
stable side wall must be foreseen. If restrictions in use are accepted,
(a simultaneous opening of the doors is not possible) the appliances can be
joined directly, using the side-by-side installation kit RVA 460 000.
When installing a cooling appliance handleless next to a BO/BM/BS/CM from the
oven 400 series a minimum lateral distance of 30 mm is required, if the door of the
cooling appliance opens towards the BO/BM/BS/CM.
Please also consider information in chapter “Location”.
For the same installation next to a BOP/BMP/BSP from the ovens 200 series, a
distance of 40 mm is required.
Door opening angle
To ensure correct kitchen planning it is essential to take into account the opening
angle of the appliance’s door plus the door panel and handle. Collisions with
kitchen furniture (worktops, handles of adjacent cabinetry, etc.) or parts of the
room (walls, protrusions, etc.) need to be avoided.
The necessary space for the hinge movement and the resulting clearances,
depending on the door opening angle, to adjacent cabinetry and its handle are
shown in the following drawing. The clearances are based on a door panel
thickness of 19 mm.
In case of a potential collision, the following options are available to solve the
situation:
— Limit the door opening angle to 90° (standard 115°). A pin to limit the opening is
enclosed with the appliance
— Fit a spacer between the appliance and the cabinetry that it would collide with
— Rearrange surrounding cabinetry or appliance

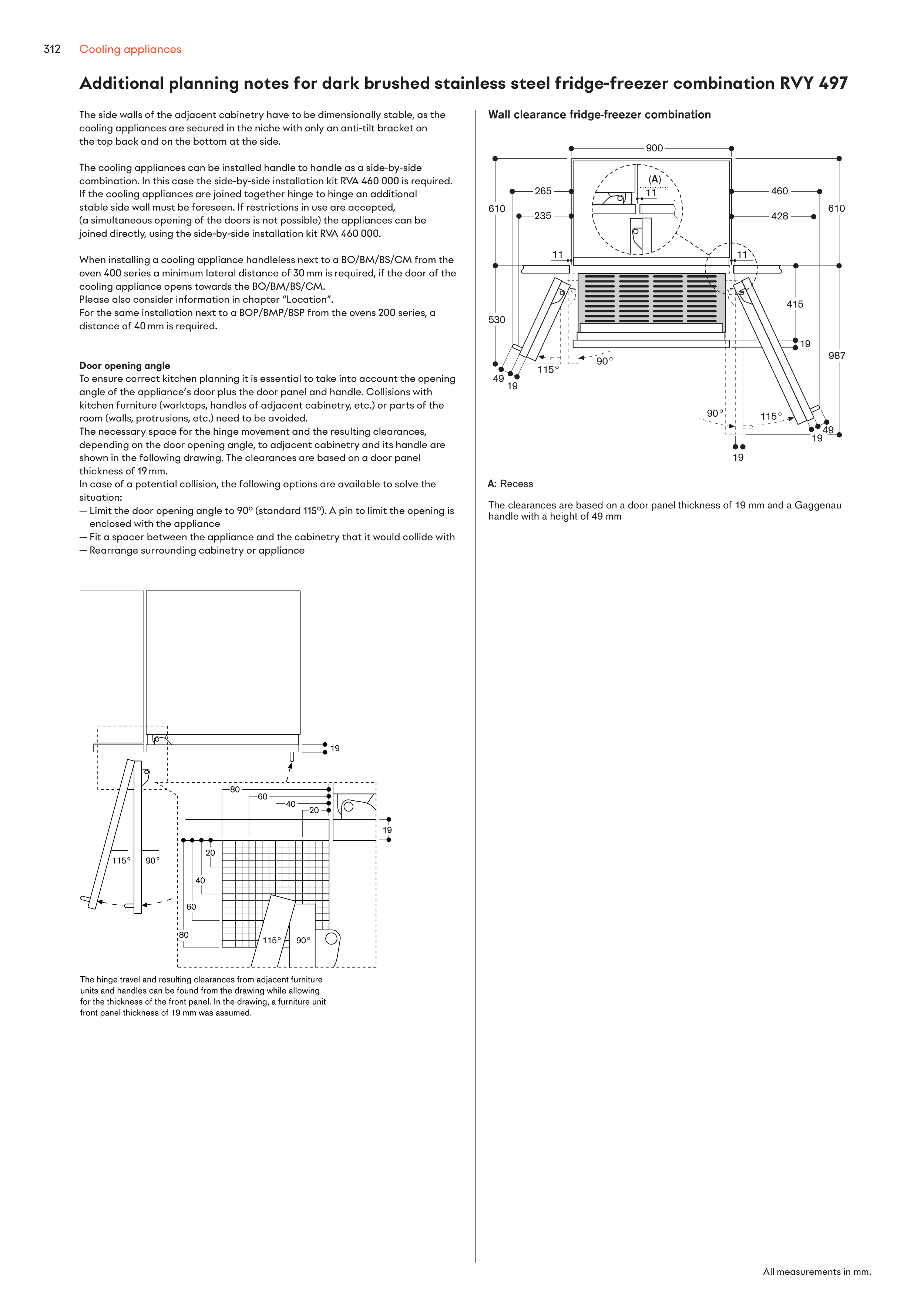

Additional planning notes for dark brushed stainless steel fridge-freezer combination RVY 497
All measurements in mm.
Wall clearance fridge-freezer combination
Recess
The clearances are based on a door panel thickness of 19 mm and a Gaggenau
handle with a height of 49 mm
A:
Measurements in mm
11
11
19
19
415
1949
19
90°
90°
115°
115°
49
610
530
460
428
(
A
)
900
610
987
11
265
235
