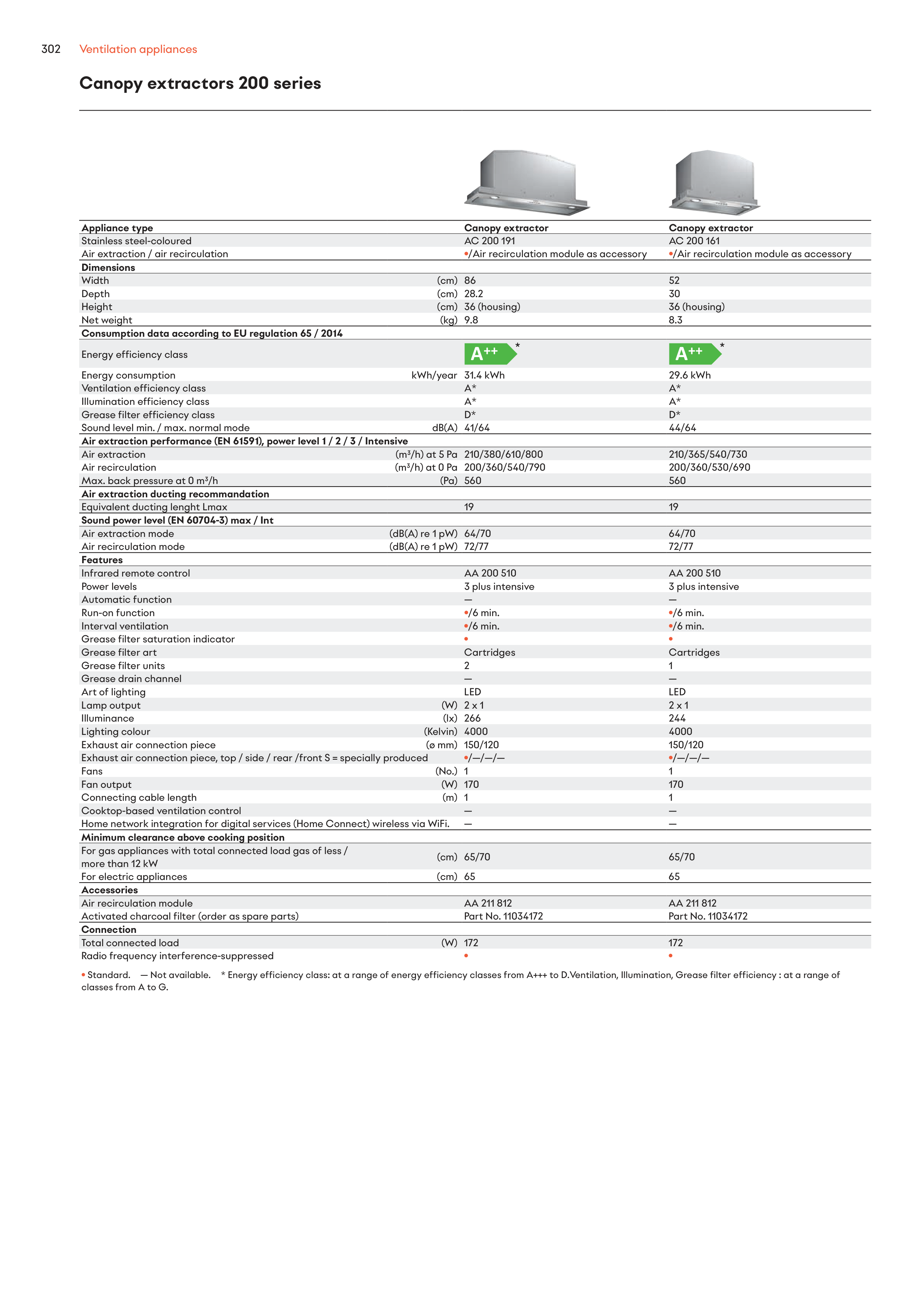

Canopy extractors 200 series
Appliance type
Canopy extractor
Canopy extractor
Stainless steel-coloured
AC 200 191
AC 200 161
Air extraction / air recirculation
•/Air recirculation module as accessory
•/Air recirculation module as accessory
Dimensions
Width
(cm) 86
52
Depth
(cm) 28.2
30
Height
(cm) 36 (housing)
36 (housing)
Net weight
(kg) 9.8
8.3
Consumption data according to EU regulation 65 / 2014
Energy efficiency class
A++
A++
Energy consumption
kWh/year 31.4 kWh
29.6 kWh
Ventilation efficiency class
A*
A*
Illumination efficiency class
A*
A*
Grease filter efficiency class
D*
D*
Sound level min. / max. normal mode
dB(A) 41/64
44/64
Air extraction performance (EN 61591), power level 1 / 2 / 3 / Intensive
Air extraction
(m³/h) at 5 Pa 210/380/610/800
210/365/540/730
Air recirculation
(m³/h) at 0 Pa 200/360/540/790
200/360/530/690
Max. back pressure at 0 m³/h
(Pa) 560
560
Air extraction ducting recommandation
Equivalent ducting lenght Lmax
19
19
Sound power level (EN 60704-3) max / Int
Air extraction mode
(dB(A) re 1 pW) 64/70
64/70
Air recirculation mode
(dB(A) re 1 pW) 72/77
72/77
Features
Infrared remote control
AA 200 510
AA 200 510
Power levels
3 plus intensive
3 plus intensive
Automatic function
—
—
Run-on function
•/6 min.
•/6 min.
Interval ventilation
•/6 min.
•/6 min.
Grease filter saturation indicator
•
•
Grease filter art
Cartridges
Cartridges
Grease filter units
2
1
Grease drain channel
—
—
Art of lighting
LED
LED
Lamp output
(W) 2 x 1
2 x 1
Illuminance
(lx) 266
244
Lighting colour
(Kelvin) 4000
4000
Exhaust air connection piece
(ø mm) 150/120
150/120
Exhaust air connection piece, top / side / rear /front S = specially produced
•/—/—/—
•/—/—/—
Fans
(No.) 1
1
Fan output
(W) 170
170
Connecting cable length
(m) 1
1
Cooktop-based ventilation control
—
—
Home network integration for digital services (Home Connect) wireless via WiFi.
—
—
Minimum clearance above cooking position
For gas appliances with total connected load gas of less /
more than 12 kW
(cm) 65/70
65/70
For electric appliances
(cm) 65
65
Accessories
Air recirculation module
AA 211 812
AA 211 812
Activated charcoal filter (order as spare parts)
Part No. 11034172
Part No. 11034172
Connection
Total connected load
(W) 172
172
Radio frequency interference-suppressed
•
•
• Standard. — Not available. * Energy efficiency class: at a range of energy efficiency classes from A+++ to D.Ventilation, Illumination, Grease filter efficiency : at a range of
classes from A to G.
