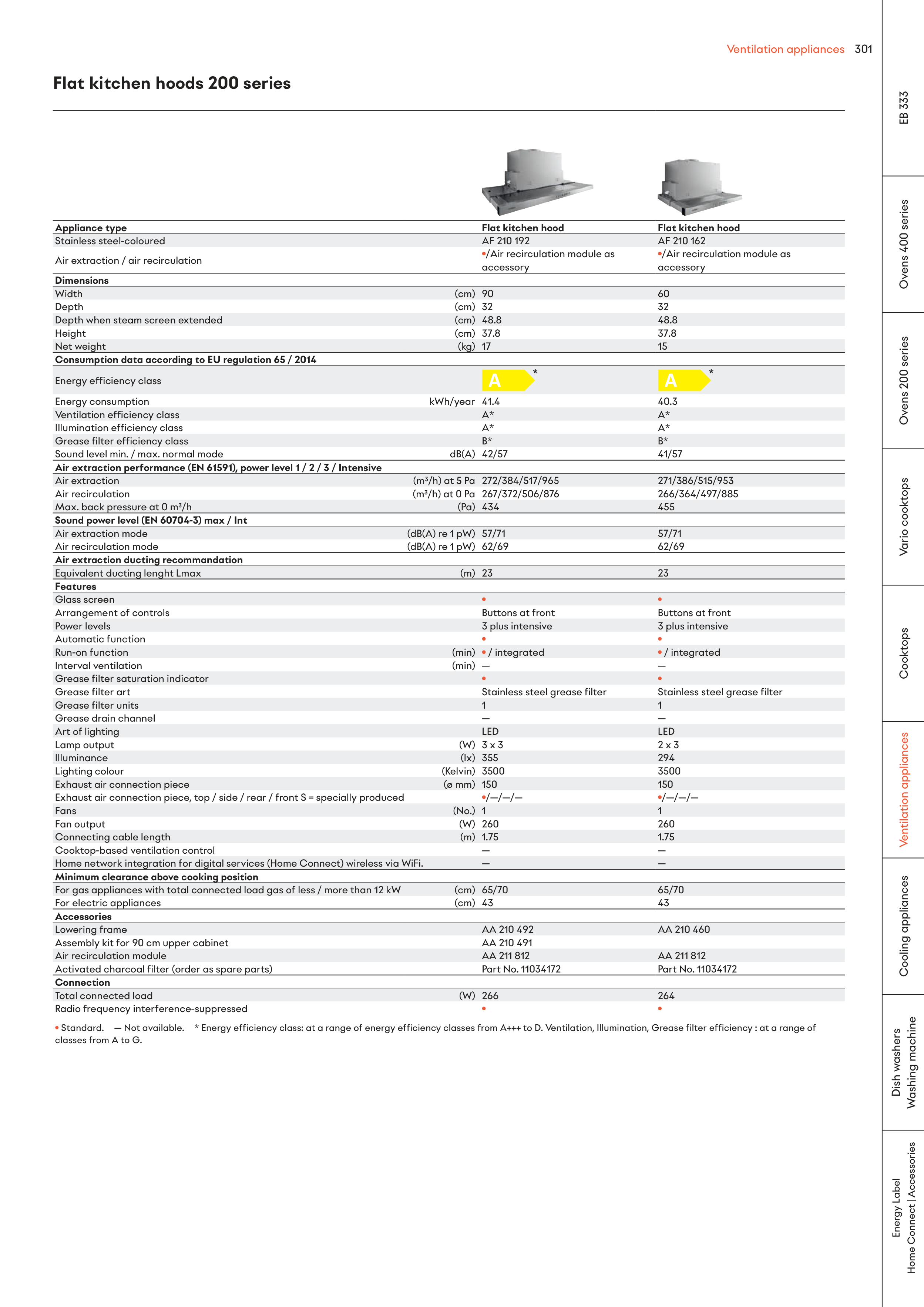

Flat kitchen hoods 200 series
Appliance type
Flat kitchen hood
Flat kitchen hood
Stainless steel-coloured
AF 210 192
AF 210 162
Air extraction / air recirculation
•/Air recirculation module as
accessory
•/Air recirculation module as
accessory
Dimensions
Width
(cm) 90
60
Depth
(cm) 32
32
Depth when steam screen extended
(cm) 48.8
48.8
Height
(cm) 37.8
37.8
Net weight
(kg) 17
15
Consumption data according to EU regulation 65 / 2014
Energy efficiency class
A
A
Energy consumption
kWh/year 41.4
40.3
Ventilation efficiency class
A*
A*
Illumination efficiency class
A*
A*
Grease filter efficiency class
B*
B*
Sound level min. / max. normal mode
dB(A) 42/57
41/57
Air extraction performance (EN 61591), power level 1 / 2 / 3 / Intensive
Air extraction
(m³/h) at 5 Pa 272/384/517/965
271/386/515/953
Air recirculation
(m³/h) at 0 Pa 267/372/506/876
266/364/497/885
Max. back pressure at 0 m³/h
(Pa) 434
455
Sound power level (EN 60704-3) max / Int
Air extraction mode
(dB(A) re 1 pW) 57/71
57/71
Air recirculation mode
(dB(A) re 1 pW) 62/69
62/69
Air extraction ducting recommandation
Equivalent ducting lenght Lmax
(m) 23
23
Features
Glass screen
•
•
Arrangement of controls
Buttons at front
Buttons at front
Power levels
3 plus intensive
3 plus intensive
Automatic function
•
•
Run-on function
(min) • / integrated
• / integrated
Interval ventilation
(min) —
—
Grease filter saturation indicator
•
•
Grease filter art
Stainless steel grease filter
Stainless steel grease filter
Grease filter units
1
1
Grease drain channel
—
—
Art of lighting
LED
LED
Lamp output
(W) 3 x 3
2 x 3
Illuminance
(lx) 355
294
Lighting colour
(Kelvin) 3500
3500
Exhaust air connection piece
(ø mm) 150
150
Exhaust air connection piece, top / side / rear / front S = specially produced
•/—/—/—
•/—/—/—
Fans
(No.) 1
1
Fan output
(W) 260
260
Connecting cable length
(m) 1.75
1.75
Cooktop-based ventilation control
—
—
Home network integration for digital services (Home Connect) wireless via WiFi.
—
—
Minimum clearance above cooking position
For gas appliances with total connected load gas of less / more than 12 kW
(cm) 65/70
65/70
For electric appliances
(cm) 43
43
Accessories
Lowering frame
AA 210 492
AA 210 460
Assembly kit for 90 cm upper cabinet
AA 210 491
Air recirculation module
AA 211 812
AA 211 812
Activated charcoal filter (order as spare parts)
Part No. 11034172
Part No. 11034172
Connection
Total connected load
(W) 266
264
Radio frequency interference-suppressed
•
•
• Standard. — Not available. * Energy efficiency class: at a range of energy efficiency classes from A+++ to D. Ventilation, Illumination, Grease filter efficiency : at a range of
classes from A to G.
