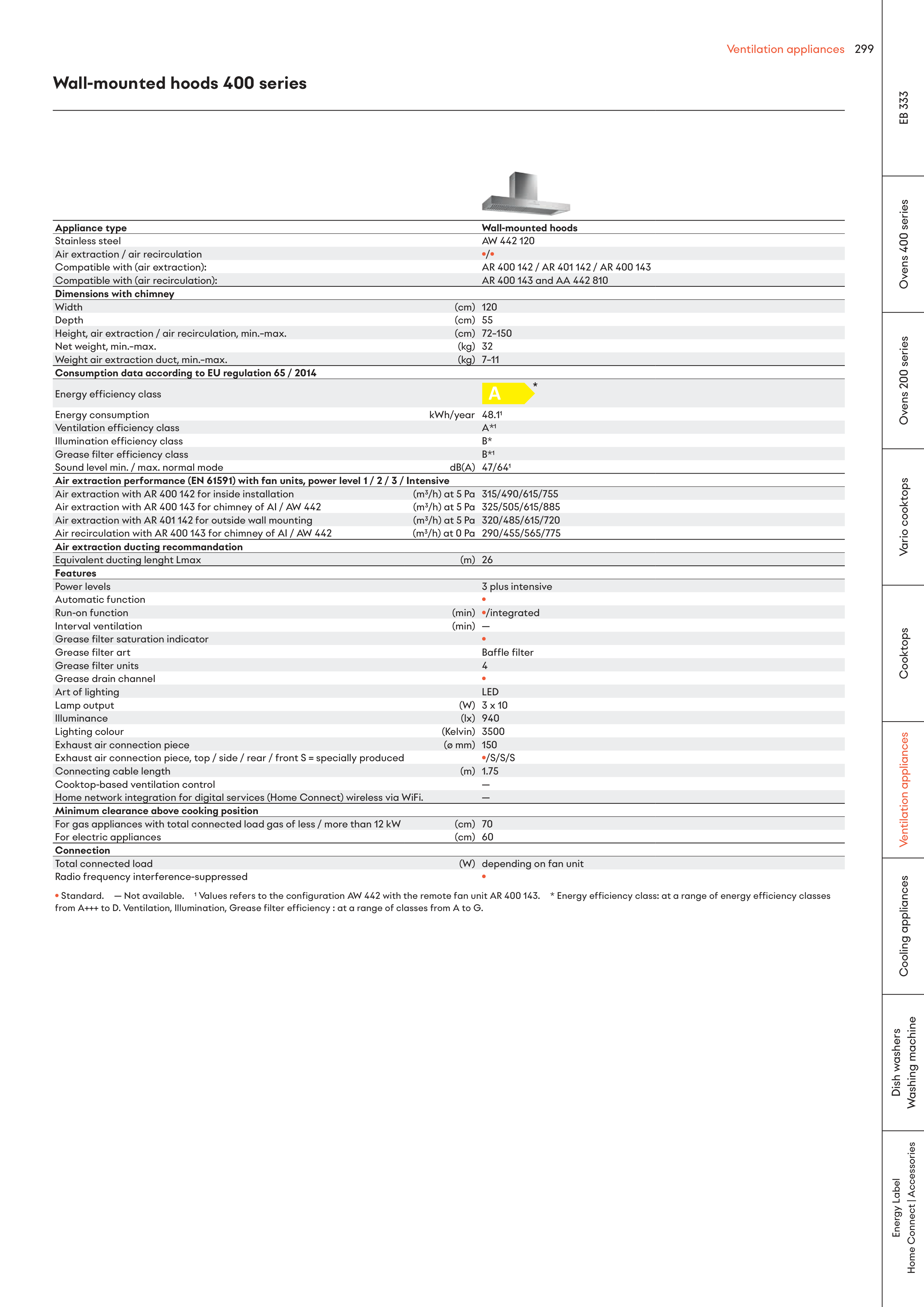

Wall-mounted hoods 400 series
Appliance type
Wall-mounted hoods
Stainless steel
AW 442 120
Air extraction / air recirculation
•/•
Compatible with (air extraction):
AR 400 142 / AR 401 142 / AR 400 143
Compatible with (air recirculation):
AR 400 143 and AA 442 810
Dimensions with chimney
Width
(cm) 120
Depth
(cm) 55
Height, air extraction / air recirculation, min.–max.
(cm) 72–150
Net weight, min.–max.
(kg) 32
Weight air extraction duct, min.–max.
(kg) 7–11
Consumption data according to EU regulation 65 / 2014
Energy efficiency class
A
Energy consumption
kWh/year 48.1¹
Ventilation efficiency class
A*¹
Illumination efficiency class
B*
Grease filter efficiency class
B*¹
Sound level min. / max. normal mode
dB(A) 47/64¹
Air extraction performance (EN 61591) with fan units, power level 1 / 2 / 3 / Intensive
Air extraction with AR 400 142 for inside installation
(m³/h) at 5 Pa 315/490/615/755
Air extraction with AR 400 143 for chimney of AI / AW 442
(m³/h) at 5 Pa 325/505/615/885
Air extraction with AR 401 142 for outside wall mounting
(m³/h) at 5 Pa 320/485/615/720
Air recirculation with AR 400 143 for chimney of AI / AW 442
(m³/h) at 0 Pa 290/455/565/775
Air extraction ducting recommandation
Equivalent ducting lenght Lmax
(m) 26
Features
Power levels
3 plus intensive
Automatic function
•
Run-on function
(min) •/integrated
Interval ventilation
(min) —
Grease filter saturation indicator
•
Grease filter art
Baffle filter
Grease filter units
4
Grease drain channel
•
Art of lighting
LED
Lamp output
(W) 3 x 10
Illuminance
(lx) 940
Lighting colour
(Kelvin) 3500
Exhaust air connection piece
(ø mm) 150
Exhaust air connection piece, top / side / rear / front S = specially produced
•/S/S/S
Connecting cable length
(m) 1.75
Cooktop-based ventilation control
—
Home network integration for digital services (Home Connect) wireless via WiFi.
—
Minimum clearance above cooking position
For gas appliances with total connected load gas of less / more than 12 kW
(cm) 70
For electric appliances
(cm) 60
Connection
Total connected load
(W) depending on fan unit
Radio frequency interference-suppressed
•
• Standard. — Not available. ¹ Values refers to the configuration AW 442 with the remote fan unit AR 400 143. * Energy efficiency class: at a range of energy efficiency classes
from A+++ to D. Ventilation, Illumination, Grease filter efficiency : at a range of classes from A to G.
