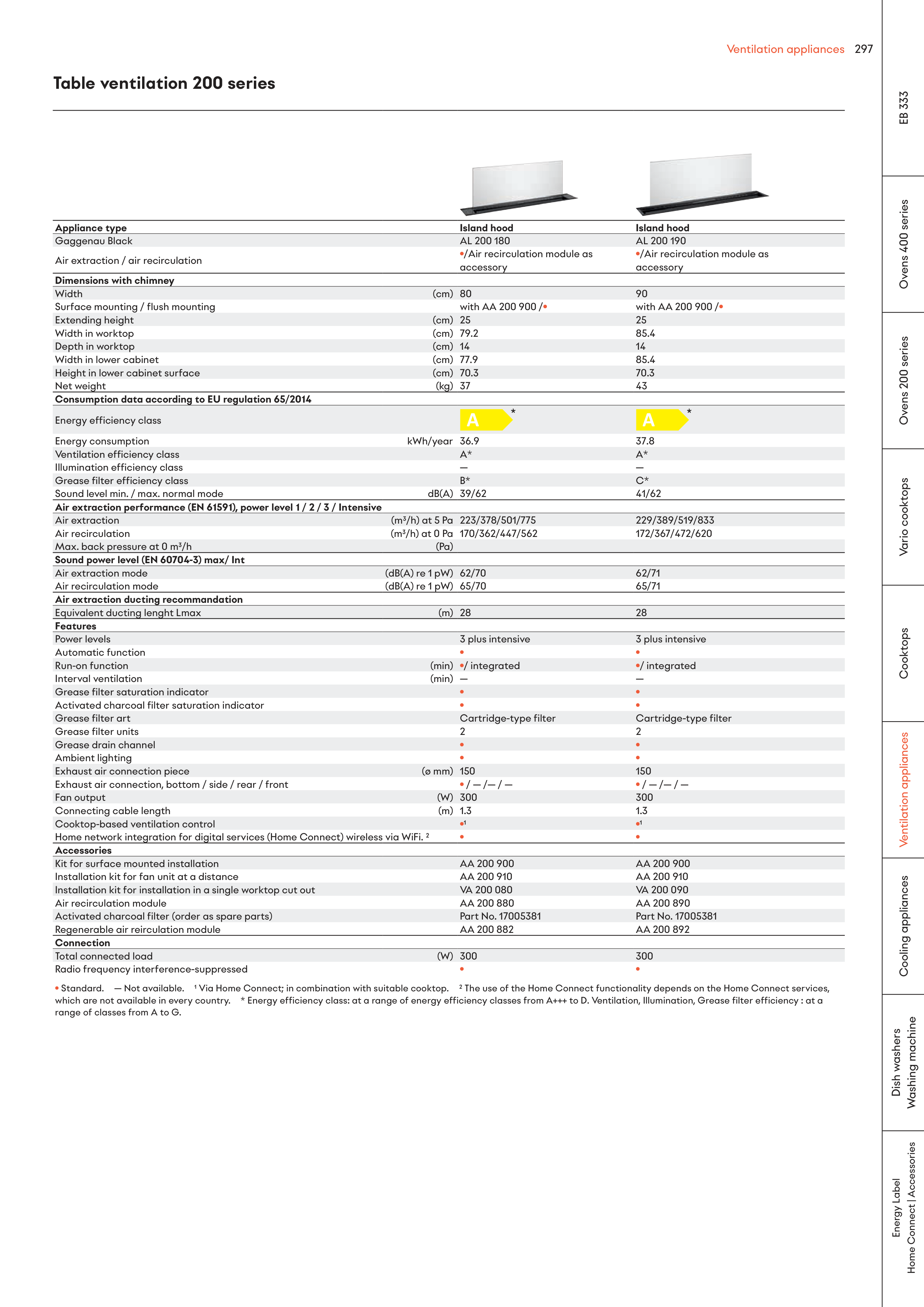

Table ventilation 200 series
Appliance type
Island hood
Island hood
Gaggenau Black
AL 200 180
AL 200 190
Air extraction / air recirculation
•/Air recirculation module as
accessory
•/Air recirculation module as
accessory
Dimensions with chimney
Width
(cm) 80
90
Surface mounting / flush mounting
with AA 200 900 /•
with AA 200 900 /•
Extending height
(cm) 25
25
Width in worktop
(cm) 79.2
85.4
Depth in worktop
(cm) 14
14
Width in lower cabinet
(cm) 77.9
85.4
Height in lower cabinet surface
(cm) 70.3
70.3
Net weight
(kg) 37
43
Consumption data according to EU regulation 65/2014
Energy efficiency class
A
A
Energy consumption
kWh/year 36.9
37.8
Ventilation efficiency class
A*
A*
Illumination efficiency class
—
—
Grease filter efficiency class
B*
C*
Sound level min. / max. normal mode
dB(A) 39/62
41/62
Air extraction performance (EN 61591), power level 1 / 2 / 3 / Intensive
Air extraction
(m³/h) at 5 Pa 223/378/501/775
229/389/519/833
Air recirculation
(m³/h) at 0 Pa 170/362/447/562
172/367/472/620
Max. back pressure at 0 m³/h
(Pa)
Sound power level (EN 60704-3) max/ Int
Air extraction mode
(dB(A) re 1 pW) 62/70
62/71
Air recirculation mode
(dB(A) re 1 pW) 65/70
65/71
Air extraction ducting recommandation
Equivalent ducting lenght Lmax
(m) 28
28
Features
Power levels
3 plus intensive
3 plus intensive
Automatic function
•
•
Run-on function
(min) •/ integrated
•/ integrated
Interval ventilation
(min) —
—
Grease filter saturation indicator
•
•
Activated charcoal filter saturation indicator
•
•
Grease filter art
Cartridge-type filter
Cartridge-type filter
Grease filter units
2
2
Grease drain channel
•
•
Ambient lighting
•
•
Exhaust air connection piece
(ø mm) 150
150
Exhaust air connection, bottom / side / rear / front
• / — /— / —
• / — /— / —
Fan output
(W) 300
300
Connecting cable length
(m) 1.3
1.3
Cooktop-based ventilation control
•¹
•¹
Home network integration for digital services (Home Connect) wireless via WiFi. ²
•
•
Accessories
Kit for surface mounted installation
AA 200 900
AA 200 900
Installation kit for fan unit at a distance
AA 200 910
AA 200 910
Installation kit for installation in a single worktop cut out
VA 200 080
VA 200 090
Air recirculation module
AA 200 880
AA 200 890
Activated charcoal filter (order as spare parts)
Part No. 17005381
Part No. 17005381
Regenerable air reirculation module
AA 200 882
AA 200 892
Connection
Total connected load
(W) 300
300
Radio frequency interference-suppressed
•
•
• Standard. — Not available. ¹ Via Home Connect; in combination with suitable cooktop. ² The use of the Home Connect functionality depends on the Home Connect services,
which are not available in every country. * Energy efficiency class: at a range of energy efficiency classes from A+++ to D. Ventilation, Illumination, Grease filter efficiency : at a
range of classes from A to G.
