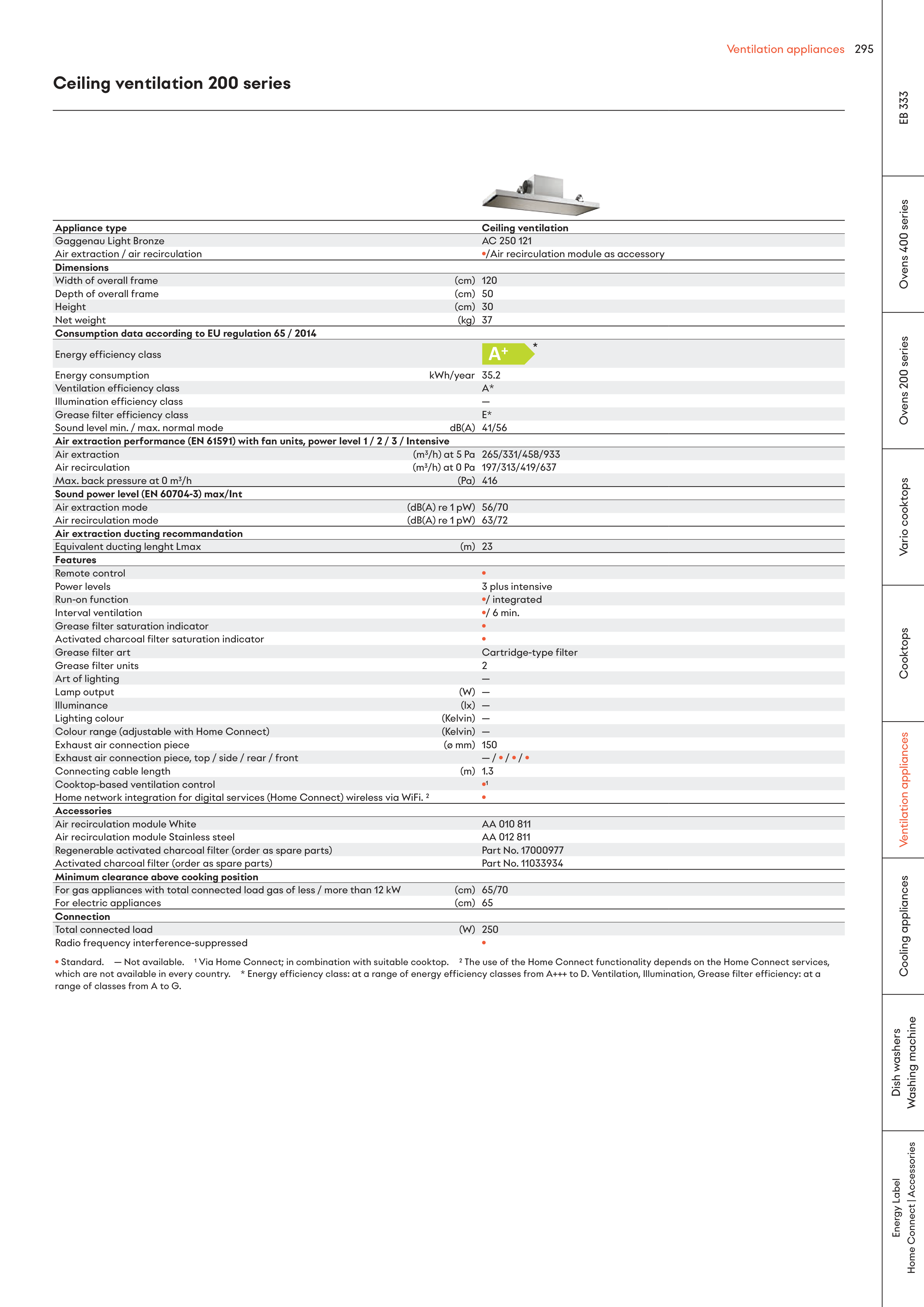

Ceiling ventilation 200 series
Appliance type
Ceiling ventilation
Gaggenau Light Bronze
AC 250 121
Air extraction / air recirculation
•/Air recirculation module as accessory
Dimensions
Width of overall frame
(cm) 120
Depth of overall frame
(cm) 50
Height
(cm) 30
Net weight
(kg) 37
Consumption data according to EU regulation 65 / 2014
Energy efficiency class
A+
Energy consumption
kWh/year 35.2
Ventilation efficiency class
A*
Illumination efficiency class
—
Grease filter efficiency class
E*
Sound level min. / max. normal mode
dB(A) 41/56
Air extraction performance (EN 61591) with fan units, power level 1 / 2 / 3 / Intensive
Air extraction
(m³/h) at 5 Pa 265/331/458/933
Air recirculation
(m³/h) at 0 Pa 197/313/419/637
Max. back pressure at 0 m³/h
(Pa) 416
Sound power level (EN 60704-3) max/Int
Air extraction mode
(dB(A) re 1 pW) 56/70
Air recirculation mode
(dB(A) re 1 pW) 63/72
Air extraction ducting recommandation
Equivalent ducting lenght Lmax
(m) 23
Features
Remote control
•
Power levels
3 plus intensive
Run-on function
•/ integrated
Interval ventilation
•/ 6 min.
Grease filter saturation indicator
•
Activated charcoal filter saturation indicator
•
Grease filter art
Cartridge-type filter
Grease filter units
2
Art of lighting
—
Lamp output
(W) —
Illuminance
(lx) —
Lighting colour
(Kelvin) —
Colour range (adjustable with Home Connect)
(Kelvin) —
Exhaust air connection piece
(ø mm) 150
Exhaust air connection piece, top / side / rear / front
— / • / • / •
Connecting cable length
(m) 1.3
Cooktop-based ventilation control
•¹
Home network integration for digital services (Home Connect) wireless via WiFi. ²
•
Accessories
Air recirculation module White
AA 010 811
Air recirculation module Stainless steel
AA 012 811
Regenerable activated charcoal filter (order as spare parts)
Part No. 17000977
Activated charcoal filter (order as spare parts)
Part No. 11033934
Minimum clearance above cooking position
For gas appliances with total connected load gas of less / more than 12 kW
(cm) 65/70
For electric appliances
(cm) 65
Connection
Total connected load
(W) 250
Radio frequency interference-suppressed
•
• Standard. — Not available. ¹ Via Home Connect; in combination with suitable cooktop. ² The use of the Home Connect functionality depends on the Home Connect services,
which are not available in every country. * Energy efficiency class: at a range of energy efficiency classes from A+++ to D. Ventilation, Illumination, Grease filter efficiency: at a
range of classes from A to G.
