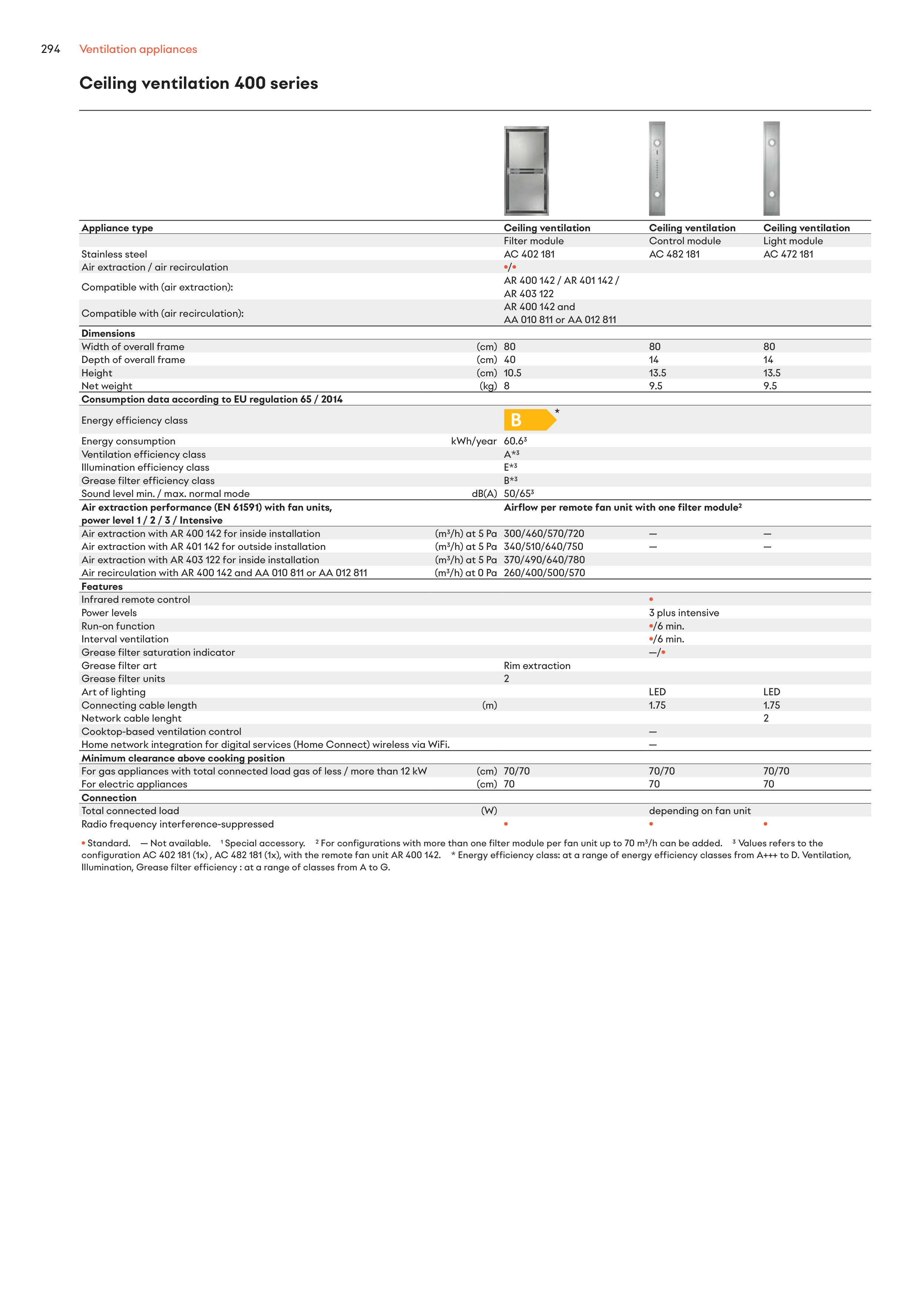

Ceiling ventilation 400 series
Appliance type
Ceiling ventilation
Ceiling ventilation
Ceiling ventilation
Filter module
Control module
Light module
Stainless steel
AC 402 181
AC 482 181
AC 472 181
Air extraction / air recirculation
•/•
Compatible with (air extraction):
AR 400 142 / AR 401 142 /
AR 403 122
Compatible with (air recirculation):
AR 400 142 and
AA 010 811 or AA 012 811
Dimensions
Width of overall frame
(cm) 80
80
80
Depth of overall frame
(cm) 40
14
14
Height
(cm) 10.5
13.5
13.5
Net weight
(kg) 8
9.5
9.5
Consumption data according to EU regulation 65 / 2014
Energy efficiency class
B
Energy consumption
kWh/year 60.6³
Ventilation efficiency class
A*³
Illumination efficiency class
E*³
Grease filter efficiency class
B*³
Sound level min. / max. normal mode
dB(A) 50/65³
Air extraction performance (EN 61591) with fan units,
power level 1 / 2 / 3 / Intensive
Airflow per remote fan unit with one filter module²
Air extraction with AR 400 142 for inside installation
(m³/h) at 5 Pa 300/460/570/720
—
—
Air extraction with AR 401 142 for outside installation
(m³/h) at 5 Pa 340/510/640/750
—
—
Air extraction with AR 403 122 for inside installation
(m³/h) at 5 Pa 370/490/640/780
Air recirculation with AR 400 142 and AA 010 811 or AA 012 811
(m³/h) at 0 Pa 260/400/500/570
Features
Infrared remote control
•
Power levels
3 plus intensive
Run-on function
•/6 min.
Interval ventilation
•/6 min.
Grease filter saturation indicator
—/•
Grease filter art
Rim extraction
Grease filter units
2
Art of lighting
LED
LED
Connecting cable length
(m)
1.75
1.75
Network cable lenght
2
Cooktop-based ventilation control
—
Home network integration for digital services (Home Connect) wireless via WiFi.
—
Minimum clearance above cooking position
For gas appliances with total connected load gas of less / more than 12 kW
(cm) 70/70
70/70
70/70
For electric appliances
(cm) 70
70
70
Connection
Total connected load
(W)
depending on fan unit
Radio frequency interference-suppressed
•
•
•
• Standard. — Not available. ¹ Special accessory. ² For configurations with more than one filter module per fan unit up to 70 m³/h can be added. ³ Values refers to the
configuration AC 402 181 (1x) , AC 482 181 (1x), with the remote fan unit AR 400 142. * Energy efficiency class: at a range of energy efficiency classes from A+++ to D. Ventilation,
Illumination, Grease filter efficiency : at a range of classes from A to G.
