All measurements in mm.

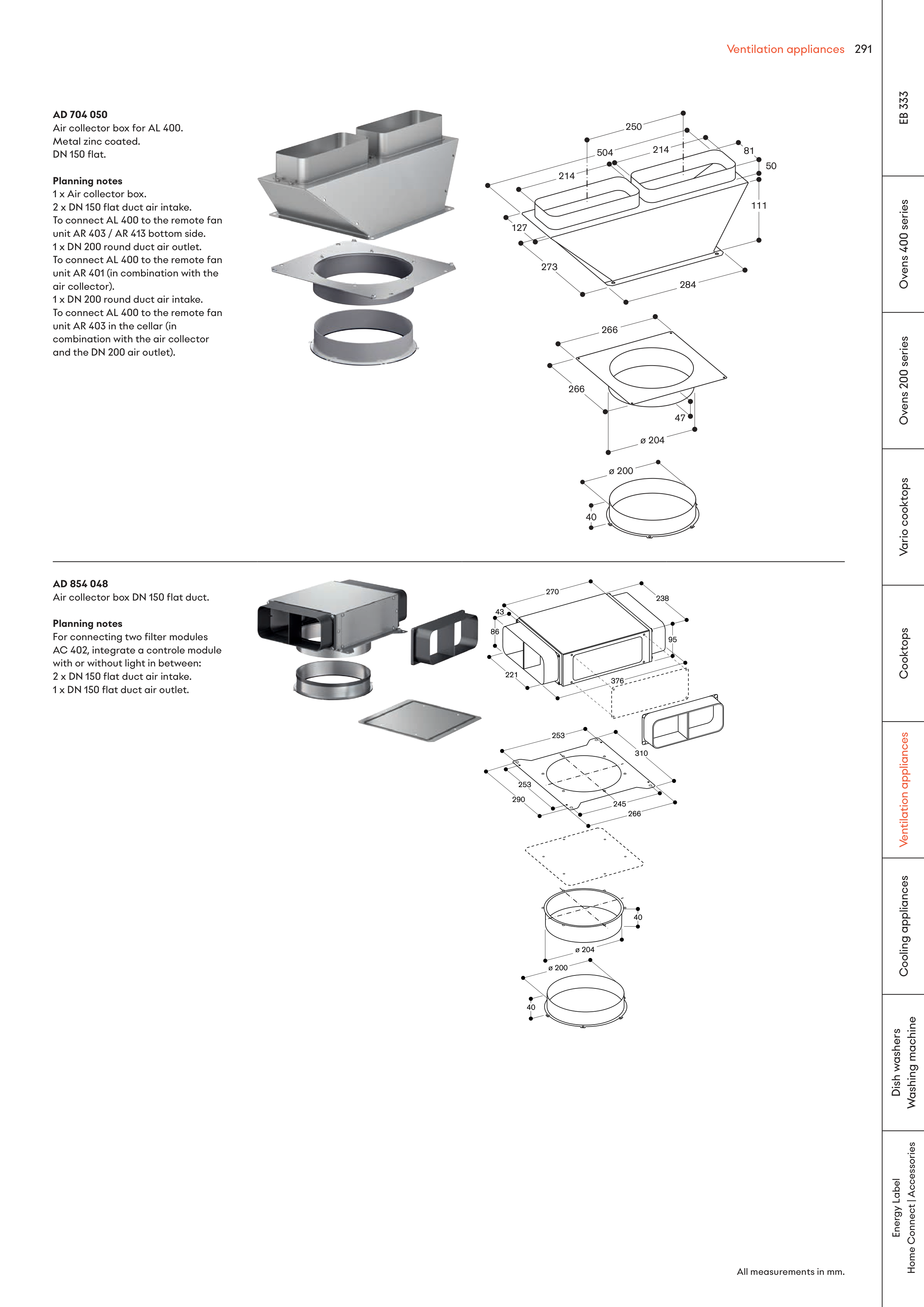

A D 704 050
Air collector box for AL 400.
Metal zinc coated.
DN 150 flat.
Planning notes
1 x Air collector box.
2 x DN 150 flat duct air intake.
To connect AL 400 to the remote fan
unit AR 403 / AR 413 bottom side.
1 x DN 200 round duct air outlet.
To connect AL 400 to the remote fan
unit AR 401 (in combination with the
air collector).
1 x DN 200 round duct air intake.
To connect AL 400 to the remote fan
unit AR 403 in the cellar (in
combination with the air collector
and the DN 200 air outlet).
Measurements in mm
81
250
127
273
284
214
504
214
111
50
40
47
266
266
ø 204
ø 200
A D 854 048
Air collector box DN 150 flat duct.
Planning notes
For connecting two filter modules
AC 402, integrate a controle module
with or without light in between:
2 x DN 150 flat duct air intake.
1 x DN 150 flat duct air outlet.
