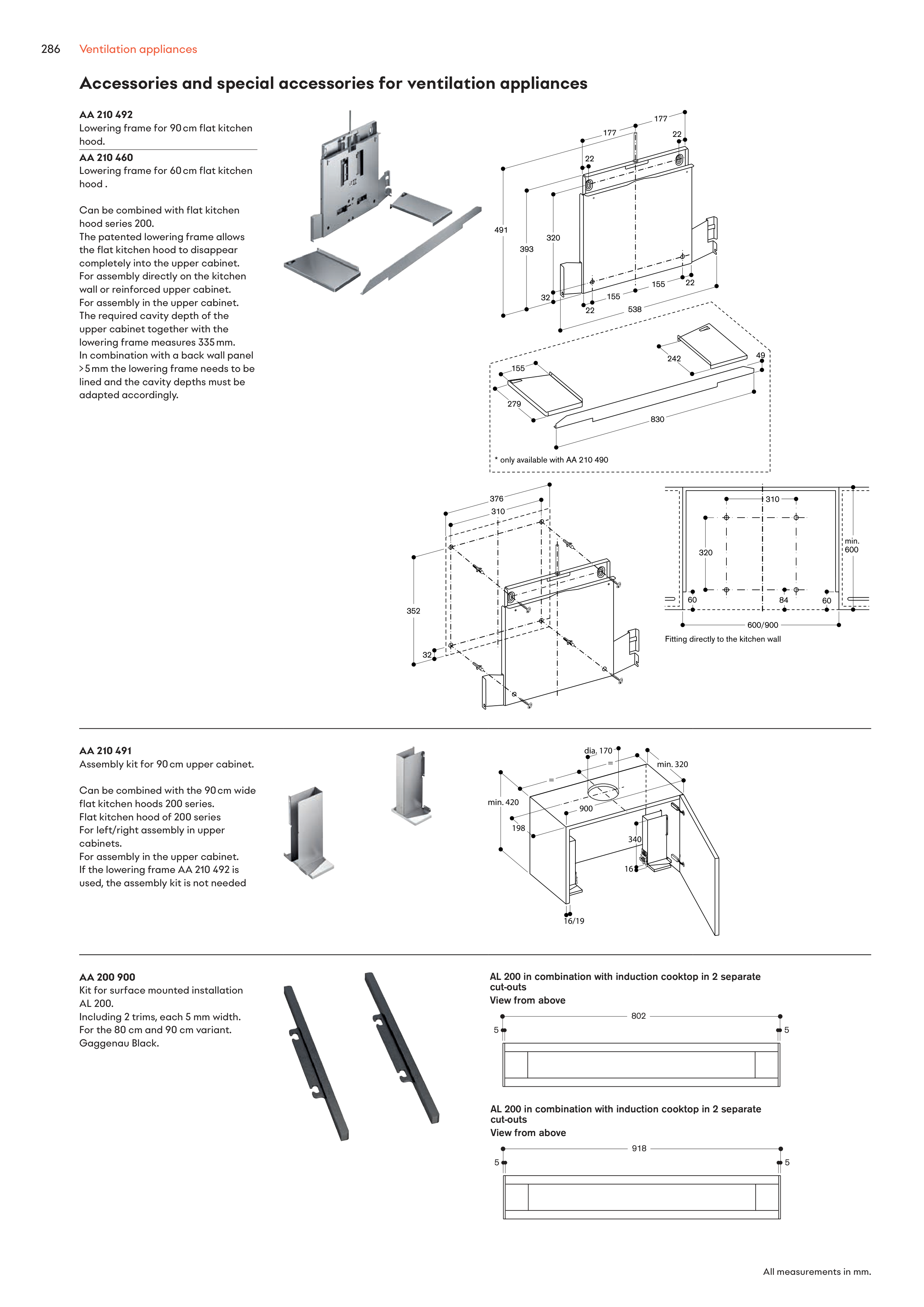

Accessories and special accessories for ventilation appliances
A A 210 492
Lowering frame for 90 cm flat kitchen
hood.
A A 210 460
Lowering frame for 60 cm flat kitchen
hood .
Can be combined with flat kitchen
hood series 200.
The patented lowering frame allows
the flat kitchen hood to disappear
completely into the upper cabinet.
For assembly directly on the kitchen
wall or reinforced upper cabinet.
For assembly in the upper cabinet.
The required cavity depth of the
upper cabinet together with the
lowering frame measures 335 mm.
In combination with a back wall panel
> 5 mm the lowering frame needs to be
lined and the cavity depths must be
adapted accordingly.
A A 210 491
Assembly kit for 90 cm upper cabinet.
Can be combined with the 90 cm wide
flat kitchen hoods 200 series.
Flat kitchen hood of 200 series
For left/right assembly in upper
cabinets.
For assembly in the upper cabinet.
If the lowering frame AA 210 492 is
used, the assembly kit is not needed
A A 200 900
Kit for surface mounted installation
AL 200.
Including 2 trims, each 5 mm width.
For the 80 cm and 90 cm variant.
Gaggenau Black.
View from above
AL 200 in combination with induction cooktop in 2 separate
cut-outs
Measurements in mm
802
5
5
View from above
AL 200 in combination with induction cooktop in 2 separate
cut-outs
Measurements in mm
918
5
5
All measurements in mm.
Ventilation appliances
