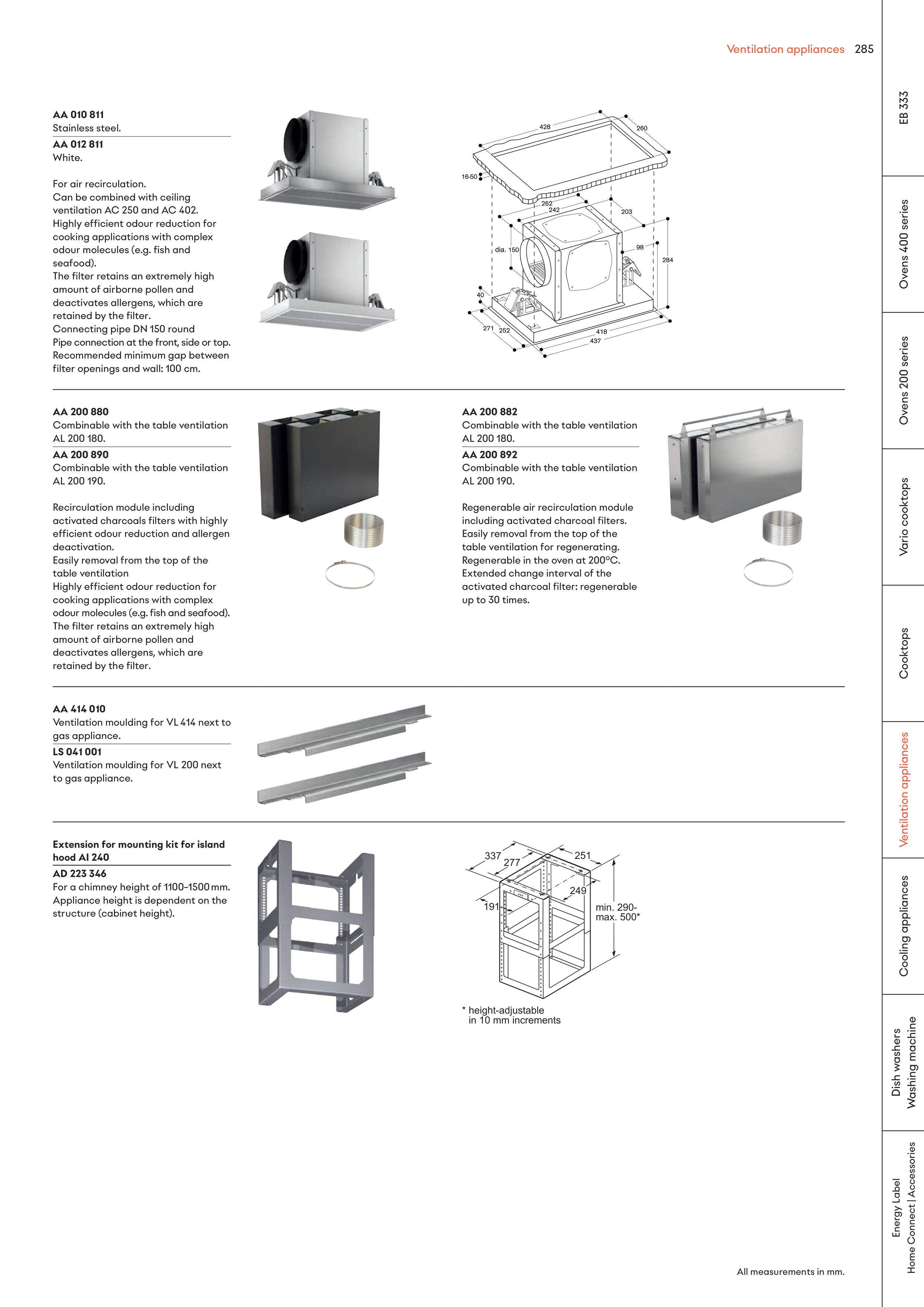

A A 010 811
Stainless steel.
A A 012 811
White.
For air recirculation.
Can be combined with ceiling
ventilation AC 250 and AC 402.
Highly efficient odour reduction for
cooking applications with complex
odour molecules (e.g. fish and
seafood).
The filter retains an extremely high
amount of airborne pollen and
deactivates allergens, which are
retained by the filter.
Connecting pipe DN 150 round
Pipe connection at the front, side or top.
Recommended minimum gap between
filter openings and wall: 100 cm.
A A 200 880
Combinable with the table ventilation
AL 200 180.
A A 200 890
Combinable with the table ventilation
AL 200 190.
Recirculation module including
activated charcoals filters with highly
efficient odour reduction and allergen
deactivation.
Easily removal from the top of the
table ventilation
Highly efficient odour reduction for
cooking applications with complex
odour molecules (e.g. fish and seafood).
The filter retains an extremely high
amount of airborne pollen and
deactivates allergens, which are
retained by the filter.
A A 200 882
Combinable with the table ventilation
AL 200 180.
A A 200 892
Combinable with the table ventilation
AL 200 190.
Regenerable air recirculation module
including activated charcoal filters.
Easily removal from the top of the
table ventilation for regenerating.
Regenerable in the oven at 200°C.
Extended change interval of the
activated charcoal filter: regenerable
up to 30 times.
A A 414 010
Ventilation moulding for VL 414 next to
gas appliance.
L S 041 001
Ventilation moulding for VL 200 next
to gas appliance.
Extension for mounting kit for island
hood AI 240
A D 223 346
For a chimney height of 1100–1500 mm.
Appliance height is dependent on the
structure (cabinet height).
min. 290-
max. 500*
251
277
337
191
249
All measurements in mm.
