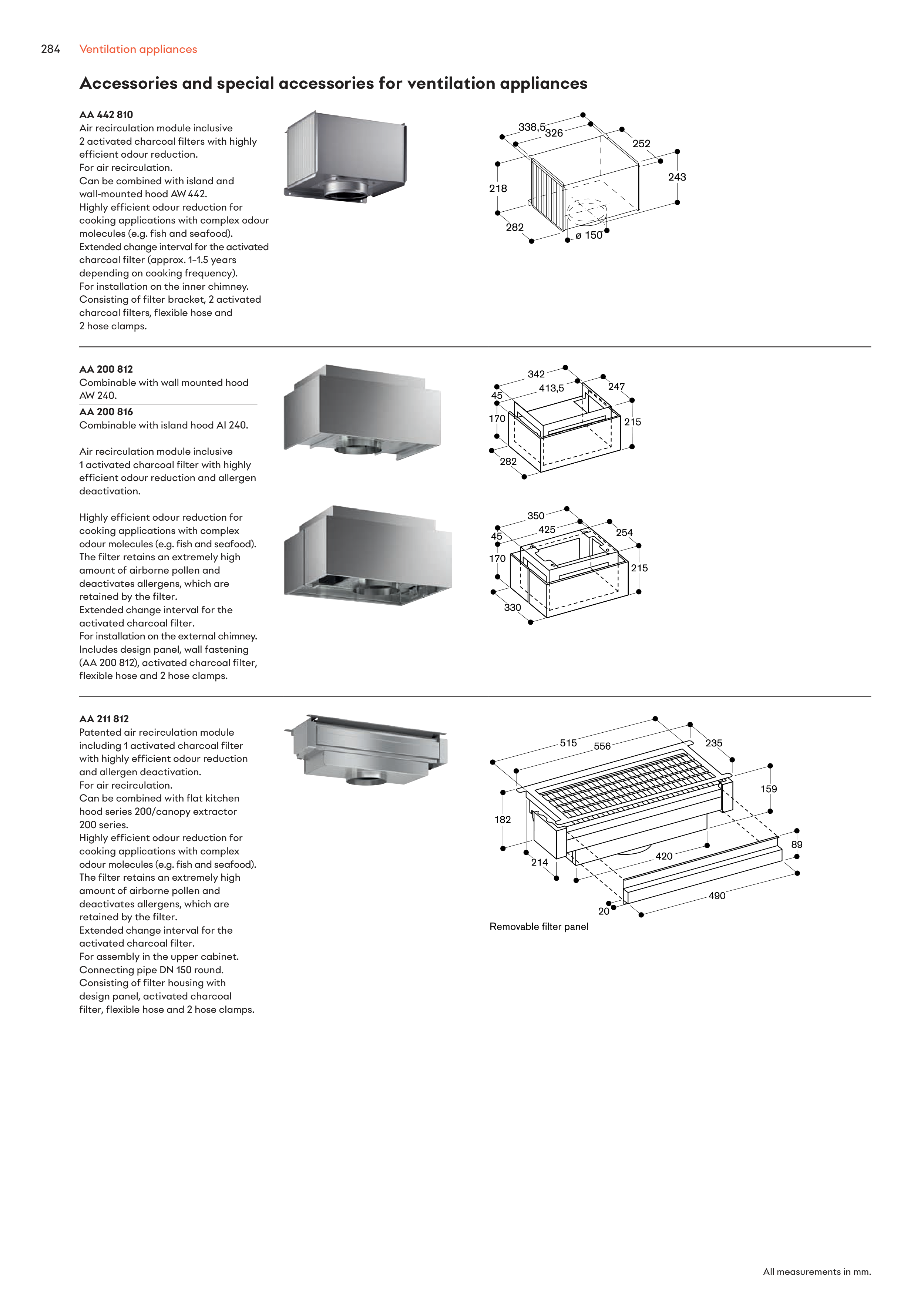

Accessories and special accessories for ventilation appliances
A A 442 810
Air recirculation module inclusive
2 activated charcoal filters with highly
efficient odour reduction.
For air recirculation.
Can be combined with island and
wall-mounted hood AW 442.
Highly efficient odour reduction for
cooking applications with complex odour
molecules (e.g. fish and seafood).
Extended change interval for the activated
charcoal filter (approx. 1–1.5 years
depending on cooking frequency).
For installation on the inner chimney.
Consisting of filter bracket, 2 activated
charcoal filters, flexible hose and
2 hose clamps.
A A 200 812
Combinable with wall mounted hood
AW 240.
A A 200 816
Combinable with island hood AI 240.
Air recirculation module inclusive
1 activated charcoal filter with highly
efficient odour reduction and allergen
deactivation.
Highly efficient odour reduction for
cooking applications with complex
odour molecules (e.g. fish and seafood).
The filter retains an extremely high
amount of airborne pollen and
deactivates allergens, which are
retained by the filter.
Extended change interval for the
activated charcoal filter.
For installation on the external chimney.
Includes design panel, wall fastening
(AA 200 812), activated charcoal filter,
flexible hose and 2 hose clamps.
A A 211 812
Patented air recirculation module
including 1 activated charcoal filter
with highly efficient odour reduction
and allergen deactivation.
For air recirculation.
Can be combined with flat kitchen
hood series 200/canopy extractor
200 series.
Highly efficient odour reduction for
cooking applications with complex
odour molecules (e.g. fish and seafood).
The filter retains an extremely high
amount of airborne pollen and
deactivates allergens, which are
retained by the filter.
Extended change interval for the
activated charcoal filter.
For assembly in the upper cabinet.
Connecting pipe DN 150 round.
Consisting of filter housing with
design panel, activated charcoal
filter, flexible hose and 2 hose clamps.
All measurements in mm.
Ventilation appliances
284
