All measurements in mm.

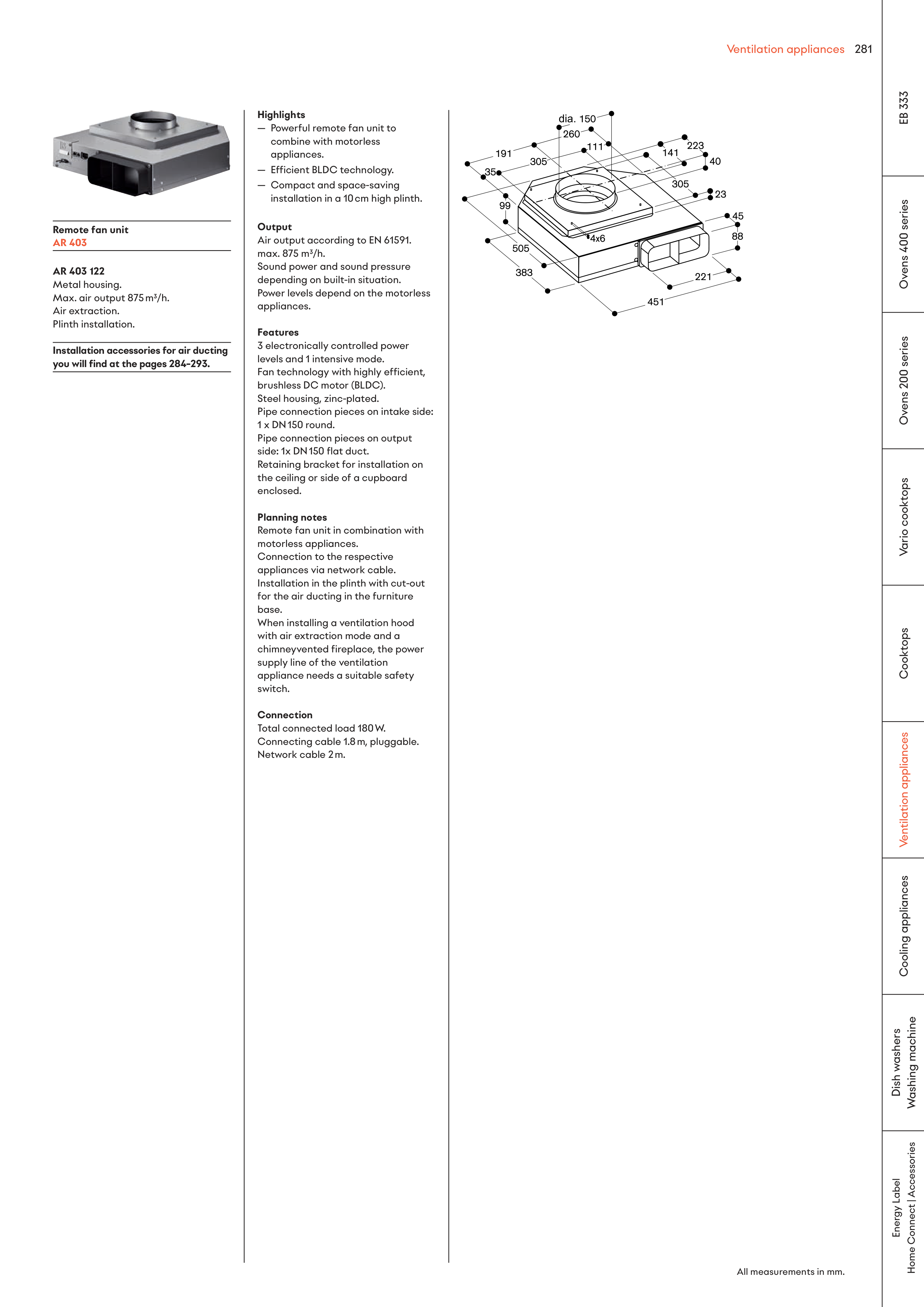

Remote fan unit
A R 403
A R 403 122
Metal housing.
Max. air output 875 m³/h.
Air extraction.
Plinth installation.
Installation accessories for air ducting
you will find at the pages 284–293.
Highlights
— Powerful remote fan unit to
combine with motorless
appliances.
— Efficient BLDC technology.
— Compact and space-saving
installation in a 10 cm high plinth.
Output
Air output according to EN 61591.
max. 875 m³/h.
Sound power and sound pressure
depending on built-in situation.
Power levels depend on the motorless
appliances.
Features
3 electronically controlled power
levels and 1 intensive mode.
Fan technology with highly efficient,
brushless DC motor (BLDC).
Steel housing, zinc-plated.
Pipe connection pieces on intake side:
1 x DN 150 round.
Pipe connection pieces on output
side: 1x DN 150 flat duct.
Retaining bracket for installation on
the ceiling or side of a cupboard
enclosed.
Planning notes
Remote fan unit in combination with
motorless appliances.
Connection to the respective
appliances via network cable.
Installation in the plinth with cut-out
for the air ducting in the furniture
base.
When installing a ventilation hood
with air extraction mode and a
chimneyvented fireplace, the power
supply line of the ventilation
appliance needs a suitable safety
switch.
Connection
Total connected load 180 W.
Connecting cable 1.8 m, pluggable.
Network cable 2 m.
