*Energy efficiency class: at a range of energy efficiency classes from A+++ to D.

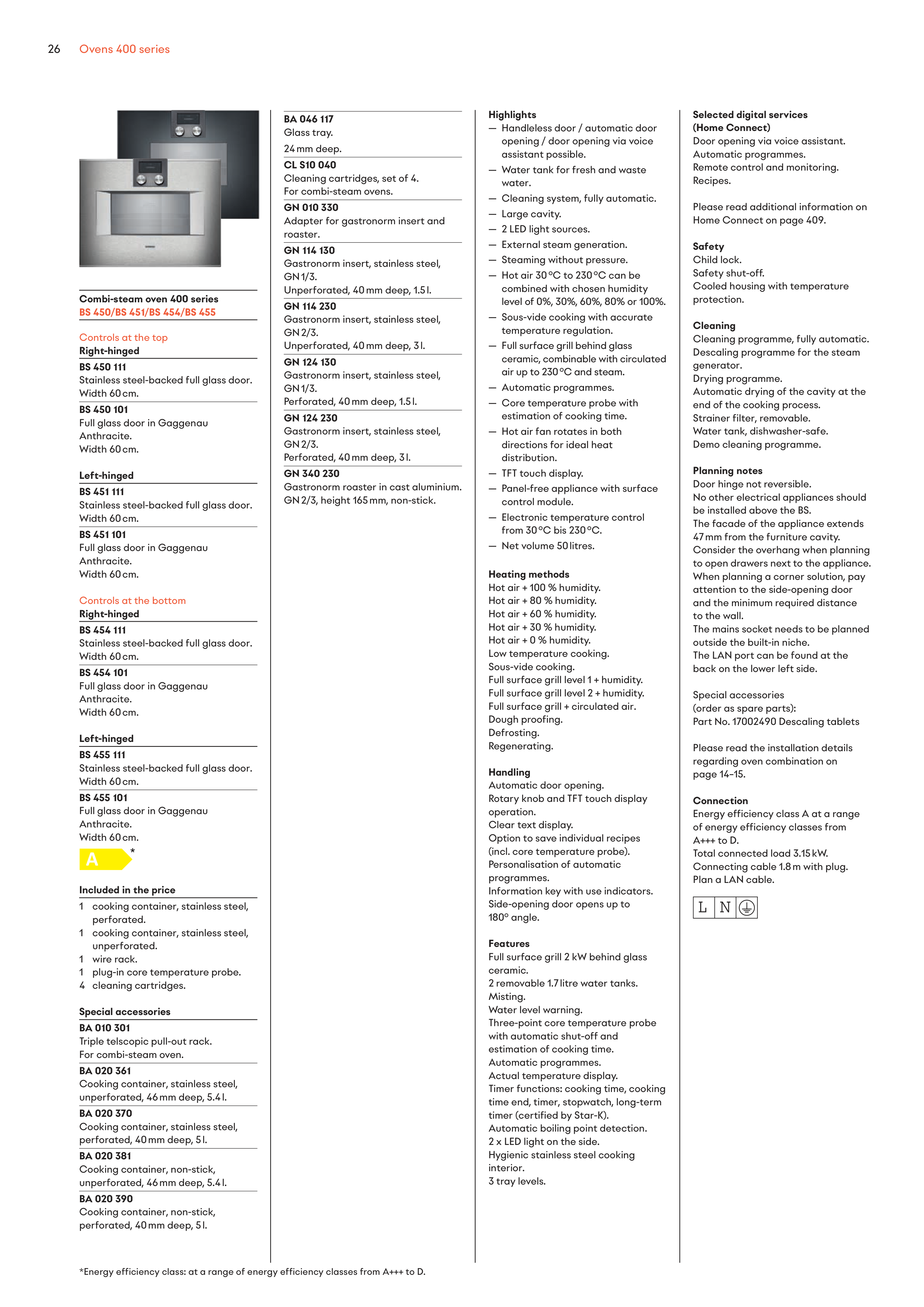

Combi-steam oven 400 series
B S 450/B S 451/B S 454/B S 455
Controls at the top
Right-hinged
B S 450 111
Stainless steel-backed full glass door.
Width 60 cm.
B S 450 101
Full glass door in Gaggenau
Anthracite.
Width 60 cm.
Left-hinged
B S 451 111
Stainless steel-backed full glass door.
Width 60 cm.
B S 451 101
Full glass door in Gaggenau
Anthracite.
Width 60 cm.
Controls at the bottom
Right-hinged
B S 454 111
Stainless steel-backed full glass door.
Width 60 cm.
B S 454 101
Full glass door in Gaggenau
Anthracite.
Width 60 cm.
Left-hinged
B S 455 111
Stainless steel-backed full glass door.
Width 60 cm.
B S 455 101
Full glass door in Gaggenau
Anthracite.
Width 60 cm.
Included in the price
1 cooking container, stainless steel,
perforated.
1 cooking container, stainless steel,
unperforated.
1 wire rack.
1 plug-in core temperature probe.
4 cleaning cartridges.
Special accessories
B A 010 301
Triple telscopic pull-out rack.
For combi-steam oven.
B A 020 361
Cooking container, stainless steel,
unperforated, 46 mm deep, 5.4 l.
B A 020 370
Cooking container, stainless steel,
perforated, 40 mm deep, 5 l.
B A 020 381
Cooking container, non-stick,
unperforated, 46 mm deep, 5.4 l.
B A 020 390
Cooking container, non-stick,
perforated, 40 mm deep, 5 l.
A
B A 046 117
Glass tray.
24 mm deep.
CL S10 040
Cleaning cartridges, set of 4.
For combi-steam ovens.
G N 010 330
Adapter for gastronorm insert and
roaster.
G N 114 130
Gastronorm insert, stainless steel,
GN 1/3.
Unperforated, 40 mm deep, 1.5 l.
G N 114 230
Gastronorm insert, stainless steel,
GN 2/3.
Unperforated, 40 mm deep, 3 l.
G N 124 130
Gastronorm insert, stainless steel,
GN 1/3.
Perforated, 40 mm deep, 1.5 l.
G N 124 230
Gastronorm insert, stainless steel,
GN 2/3.
Perforated, 40 mm deep, 3 l.
G N 340 230
Gastronorm roaster in cast aluminium.
GN 2/3, height 165 mm, non-stick.
Highlights
— Handleless door / automatic door
opening / door opening via voice
assistant possible.
— Water tank for fresh and waste
water.
— Cleaning system, fully automatic.
— Large cavity.
— 2 LED light sources.
— External steam generation.
— Steaming without pressure.
— Hot air 30 °C to 230 °C can be
combined with chosen humidity
level of 0%, 30%, 60%, 80% or 100%.
— Sous-vide cooking with accurate
temperature regulation.
— Full surface grill behind glass
ceramic, combinable with circulated
air up to 230 °C and steam.
— Automatic programmes.
— Core temperature probe with
estimation of cooking time.
— Hot air fan rotates in both
directions for ideal heat
distribution.
— TFT touch display.
— Panel-free appliance with surface
control module.
— Electronic temperature control
from 30 °C bis 230 °C.
— Net volume 50 litres.
Heating methods
Hot air + 100 % humidity.
Hot air + 80 % humidity.
Hot air + 60 % humidity.
Hot air + 30 % humidity.
Hot air + 0 % humidity.
Low temperature cooking.
Sous-vide cooking.
Full surface grill level 1 + humidity.
Full surface grill level 2 + humidity.
Full surface grill + circulated air.
Dough proofing.
Defrosting.
Regenerating.
Handling
Automatic door opening.
Rotary knob and TFT touch display
operation.
Clear text display.
Option to save individual recipes
(incl. core temperature probe).
Personalisation of automatic
programmes.
Information key with use indicators.
Side-opening door opens up to
180° angle.
Features
Full surface grill 2 kW behind glass
ceramic.
2 removable 1.7 litre water tanks.
Misting.
Water level warning.
Three-point core temperature probe
with automatic shut-off and
estimation of cooking time.
Automatic programmes.
Actual temperature display.
Timer functions: cooking time, cooking
time end, timer, stopwatch, long-term
timer (certified by Star-K).
Automatic boiling point detection.
2 x LED light on the side.
Hygienic stainless steel cooking
interior.
3 tray levels.
Selected digital services
(Home Connect)
Door opening via voice assistant.
Automatic programmes.
Remote control and monitoring.
Recipes.
Please read additional information on
Home Connect on page 409.
Safety
Child lock.
Safety shut-off.
Cooled housing with temperature
protection.
Cleaning
Cleaning programme, fully automatic.
Descaling programme for the steam
generator.
Drying programme.
Automatic drying of the cavity at the
end of the cooking process.
Strainer filter, removable.
Water tank, dishwasher-safe.
Demo cleaning programme.
Planning notes
Door hinge not reversible.
No other electrical appliances should
be installed above the BS.
The facade of the appliance extends
47 mm from the furniture cavity.
Consider the overhang when planning
to open drawers next to the appliance.
When planning a corner solution, pay
attention to the side-opening door
and the minimum required distance
to the wall.
The mains socket needs to be planned
outside the built-in niche.
The LAN port can be found at the
back on the lower left side.
Special accessories
(order as spare parts):
Part No. 17002490 Descaling tablets
Please read the installation details
regarding oven combination on
page 14–15.
Connection
Energy efficiency class A at a range
of energy efficiency classes from
A+++ to D.
Total connected load 3.15 kW.
Connecting cable 1.8 m with plug.
Plan a LAN cable.
Ovens 400 series
26
