*Energy efficiency class: at a range of energy efficiency classes from A+++ to D.

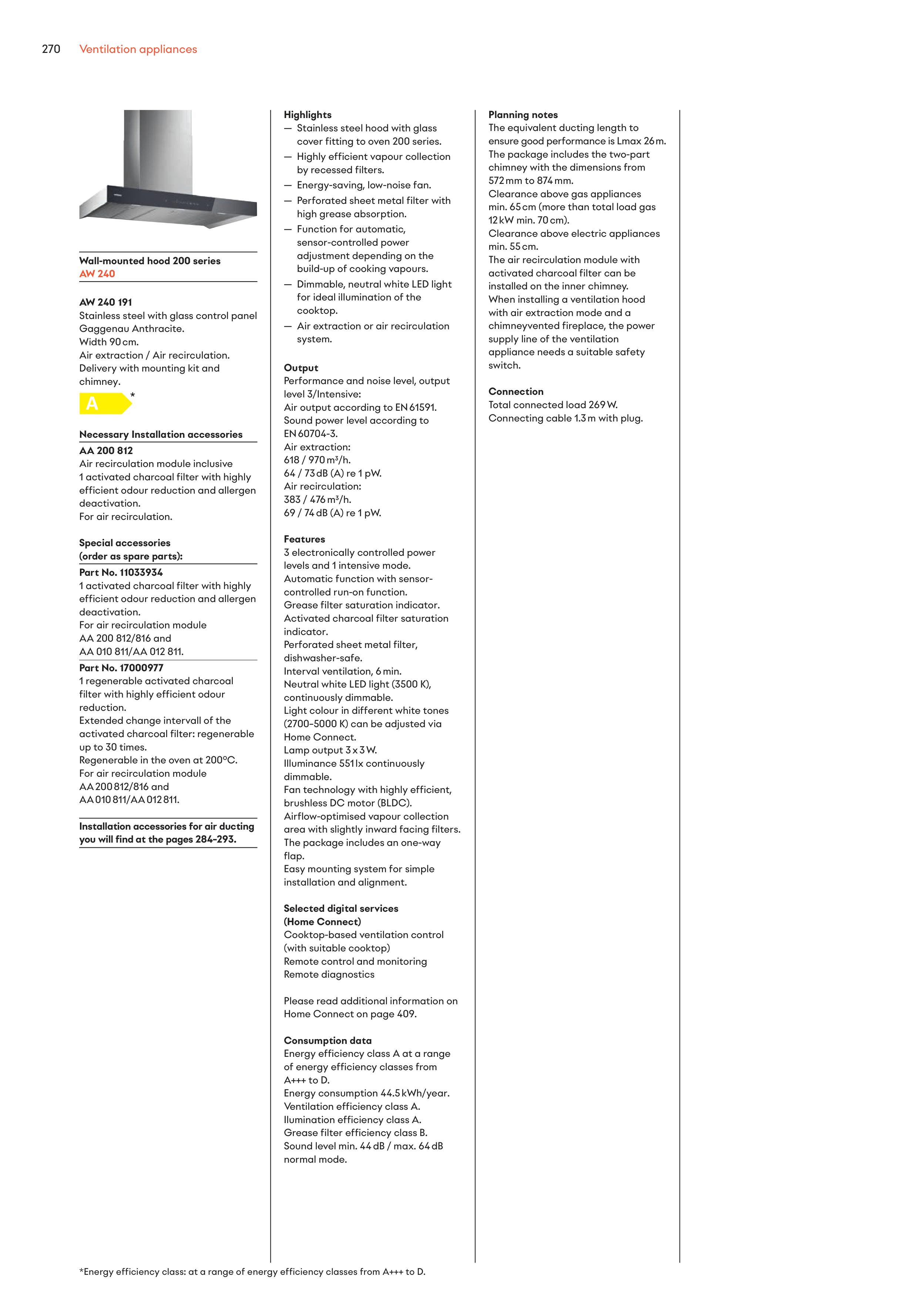

Wall-mounted hood 200 series
A W 240
A W 240 191
Stainless steel with glass control panel
Gaggenau Anthracite.
Width 90 cm.
Air extraction / Air recirculation.
Delivery with mounting kit and
chimney.
Necessary Installation accessories
A A 200 812
Air recirculation module inclusive
1 activated charcoal filter with highly
efficient odour reduction and allergen
deactivation.
For air recirculation.
Special accessories
(order as spare parts):
Part No. 11033934
1 activated charcoal filter with highly
efficient odour reduction and allergen
deactivation.
For air recirculation module
AA 200 812/816 and
AA 010 811/AA 012 811.
Part No. 17000977
1 regenerable activated charcoal
filter with highly efficient odour
reduction.
Extended change intervall of the
activated charcoal filter: regenerable
up to 30 times.
Regenerable in the oven at 200°C.
For air recirculation module
AA 200 812/816 and
AA 010 811/AA 012 811.
Installation accessories for air ducting
you will find at the pages 284–293.
A
Highlights
— Stainless steel hood with glass
cover fitting to oven 200 series.
— Highly efficient vapour collection
by recessed filters.
— Energy-saving, low-noise fan.
— Perforated sheet metal filter with
high grease absorption.
— Function for automatic,
sensor-controlled power
adjustment depending on the
build-up of cooking vapours.
— Dimmable, neutral white LED light
for ideal illumination of the
cooktop.
— Air extraction or air recirculation
system.
Output
Performance and noise level, output
level 3/Intensive:
Air output according to EN 61591.
Sound power level according to
EN 60704-3.
Air extraction:
618 / 970 m³/h.
64 / 73 dB (A) re 1 pW.
Air recirculation:
383 / 476 m³/h.
69 / 74 dB (A) re 1 pW.
Features
3 electronically controlled power
levels and 1 intensive mode.
Automatic function with sensor-
controlled run-on function.
Grease filter saturation indicator.
Activated charcoal filter saturation
indicator.
Perforated sheet metal filter,
dishwasher-safe.
Interval ventilation, 6 min.
Neutral white LED light (3500 K),
continuously dimmable.
Light colour in different white tones
(2700–5000 K) can be adjusted via
Home Connect.
Lamp output 3 x 3 W.
Illuminance 551 lx continuously
dimmable.
Fan technology with highly efficient,
brushless DC motor (BLDC).
Airflow-optimised vapour collection
area with slightly inward facing filters.
The package includes an one-way
flap.
Easy mounting system for simple
installation and alignment.
Selected digital services
(Home Connect)
Cooktop-based ventilation control
(with suitable cooktop)
Remote control and monitoring
Remote diagnostics
Please read additional information on
Home Connect on page 409.
Consumption data
Energy efficiency class A at a range
of energy efficiency classes from
A+++ to D.
Energy consumption 44.5 kWh/year.
Ventilation efficiency class A.
Ilumination efficiency class A.
Grease filter efficiency class B.
Sound level min. 44 dB / max. 64 dB
normal mode.
Planning notes
The equivalent ducting length to
ensure good performance is Lmax 26 m.
The package includes the two-part
chimney with the dimensions from
572 mm to 874 mm.
Clearance above gas appliances
min. 65 cm (more than total load gas
12 kW min. 70 cm).
Clearance above electric appliances
min. 55 cm.
The air recirculation module with
activated charcoal filter can be
installed on the inner chimney.
When installing a ventilation hood
with air extraction mode and a
chimneyvented fireplace, the power
supply line of the ventilation
appliance needs a suitable safety
switch.
Connection
Total connected load 269 W.
Connecting cable 1.3 m with plug.
Ventilation appliances
270
