Cooktops 400 series
(CX 492, VI 492)
or 200 series (CI 292)
AL 200 190
Cooktops 400 series
(CX 492, VI 492)
or 200 series (CI 292)
AL 200 190
All measurements in mm.

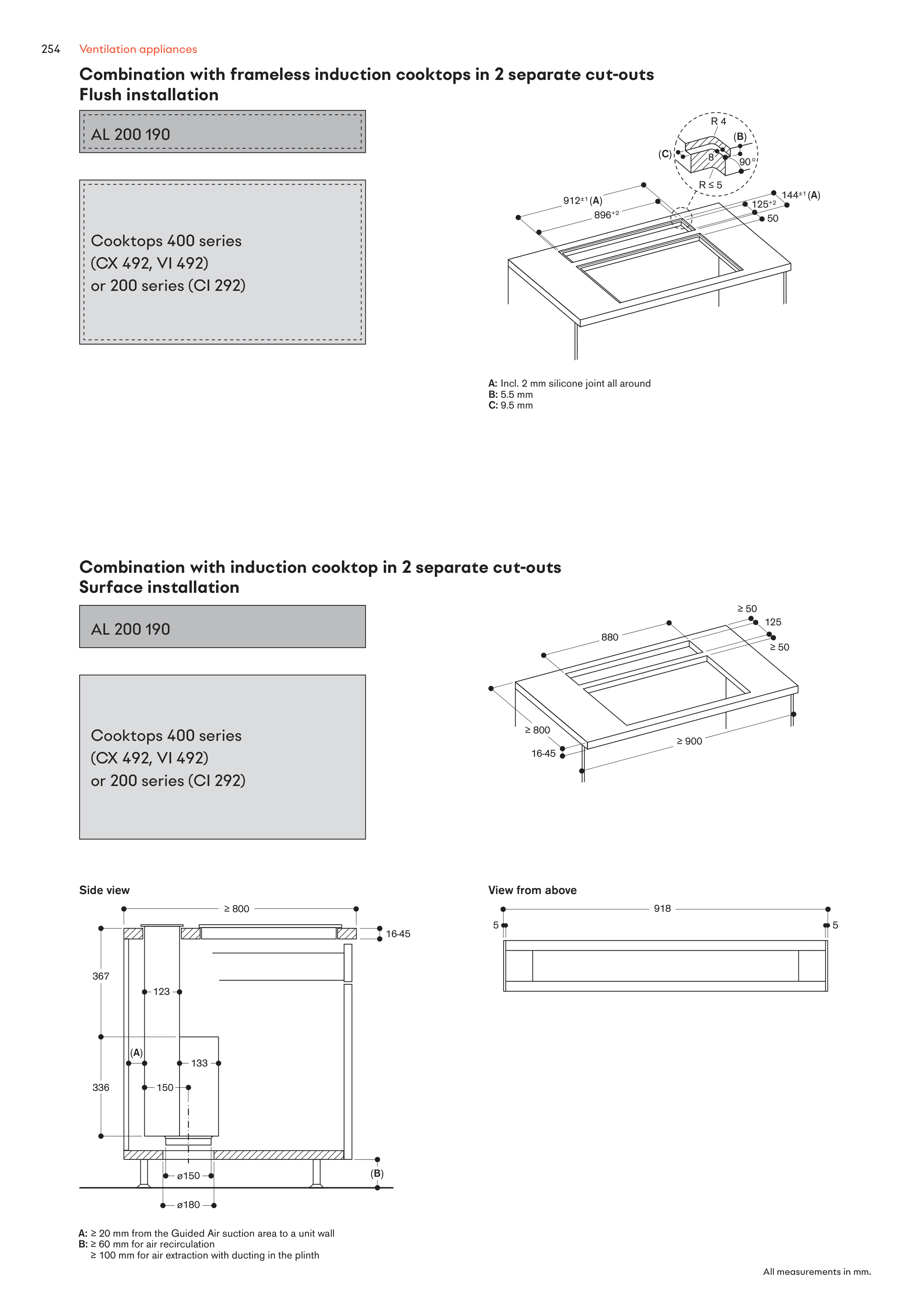

Combination with frameless induction cooktops in 2 separate cut-outs
Flush installation
Combination with induction cooktop in 2 separate cut-outs
Surface installation
Incl. 2 mm silicone joint all around
5.5 mm
B:
9.5 mm
Measurements in mm
A:
C:
(
B
)
R ≤ 5
R 4
8
90°
50
125+2
896+2
912±1 (A)
144±1 (A)
(
C
)
Measurements in mm
≥ 50
≥ 50
125
≥ 800
880
≥ 900
16-45
A:
Measurements in mm
≥ 100 mm for air extraction with ducting in the plinth
B: ≥ 60 mm for air recirculation
≥ 20 mm from the Guided Air suction area to a unit wall
Side view
≥ 800
ø180
(B)
(A)
336
16-45
367
133
123
150
ø150
View from above
Measurements in mm
918
5
5
Ventilation appliances
254
