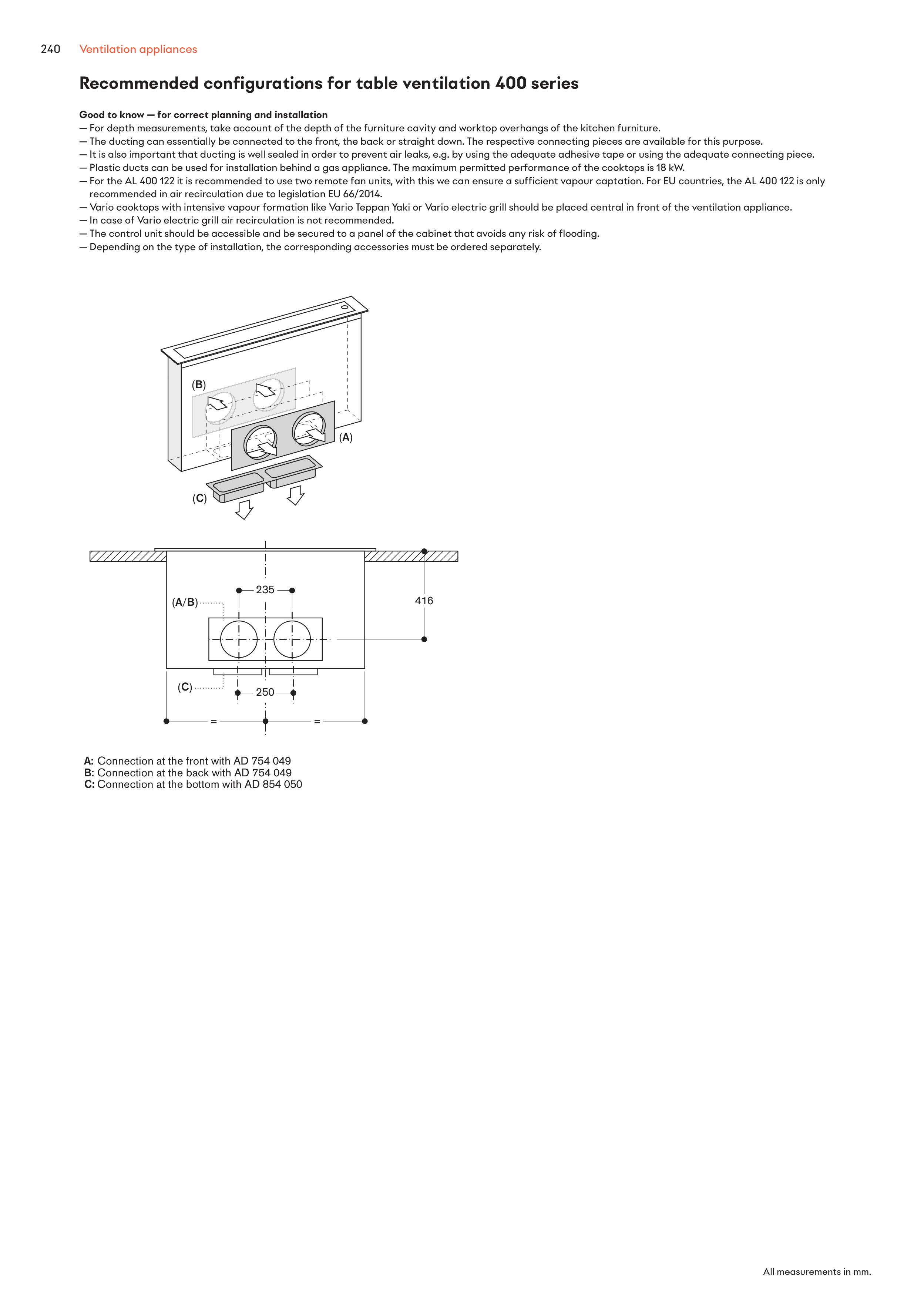

Recommended configurations for table ventilation 400 series
Good to know — for correct planning and installation
— For depth measurements, take account of the depth of the furniture cavity and worktop overhangs of the kitchen furniture.
— The ducting can essentially be connected to the front, the back or straight down. The respective connecting pieces are available for this purpose.
— It is also important that ducting is well sealed in order to prevent air leaks, e.g. by using the adequate adhesive tape or using the adequate connecting piece.
— Plastic ducts can be used for installation behind a gas appliance. The maximum permitted performance of the cooktops is 18 kW.
— For the AL 400 122 it is recommended to use two remote fan units, with this we can ensure a sufficient vapour captation. For EU countries, the AL 400 122 is only
recommended in air recirculation due to legislation EU 66/2014.
— Vario cooktops with intensive vapour formation like Vario Teppan Yaki or Vario electric grill should be placed central in front of the ventilation appliance.
— In case of Vario electric grill air recirculation is not recommended.
— The control unit should be accessible and be secured to a panel of the cabinet that avoids any risk of flooding.
— Depending on the type of installation, the corresponding accessories must be ordered separately.
All measurements in mm.
Connection at the front with AD 754 049
Connection at the back with AD 754 049
Connection at the bottom with AD 854 050
A:
B:
C:
Measurements in mm
250
(
C
)
(
C
)
(
A
)
(
B
)
(
A
/
B
)
235
416
=
=
